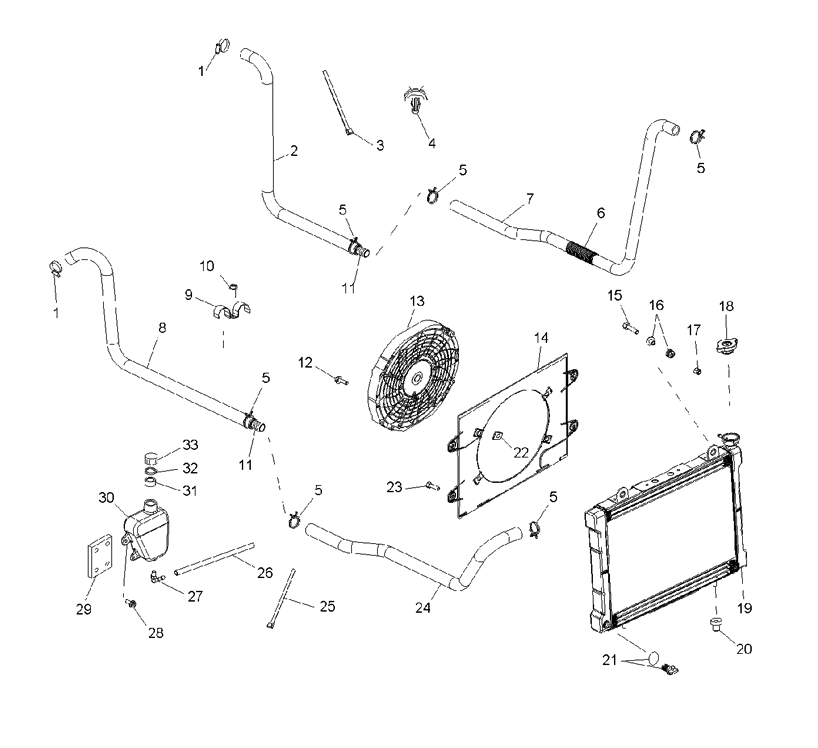

COOLING SYSTEM для Polaris RANGER 500 4X4 EFI NBU [R06RD50AB] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7080614 CLAMP, HOSE
    CLAMP, HOSE
  • 2
    5412649 HOSE-ENG OUTLET
    HOSE-ENG OUTLET
  • 3
    7080138 CABLE TIE
    CABLE TIE
  • 4
    7080965 MOUNT-CABLE TIE, .25
    MOUNT-CABLE TIE, .25
  • 5
    7080826 CLAMP-ROTO CLIP
    CLAMP-ROTO CLIP
  • 6
    5521324 TUBING, CONVOLUTED(1''X6'')
    TUBING, CONVOLUTED(1''X6'')
  • 7
    5411977 HOSE-3/4'' ID RADIATOR INLET
    HOSE-3/4'' ID RADIATOR INLET
  • 8
    5412650 HOSE-ENG INLET
    HOSE-ENG INLET
  • 9
    7080898 CLAMP-DOUBLE HOSE 1''
    CLAMP-DOUBLE HOSE 1''
  • 10
    7517386 SCREW
    SCREW
  • 11
    7052092 CONNECTOR, 3/4''SPLICE, BARBED
    CONNECTOR, 3/4''SPLICE, BARBED
  • 12
    7547220 SCR-M6-1.00X20, W/WASHER
    SCR-M6-1.00X20, W/WASHER
  • 13
    2410340 ASM-FAN RADIATOR
    ASM-FAN RADIATOR
  • 14
    5434696 SHROUD-FAN
    SHROUD-FAN
  • 15
    7512163 BOLT
    BOLT
  • 16
    5411975 GROMMET/INSERT-ASM
    GROMMET/INSERT-ASM
  • 17
    7542153 NUT, NYLOK, FLANGED
    NUT, NYLOK, FLANGED
  • 18
    1240093 CAP-PRESSURE, 13 LBS.
    CAP-PRESSURE, 13 LBS.
  • 19
    1240209 RADIATOR
    RADIATOR
  • 20
    5410584 BUSHING-MOUNT, LOWER RADIATOR
    BUSHING-MOUNT, LOWER RADIATOR
  • 21
    7052296 VALVE-PLASTIC DRAIN
    VALVE-PLASTIC DRAIN
  • 22
    7547197 CLIP-''U'', M6.0X1.0
    CLIP-''U'', M6.0X1.0
  • 23
    7518067 SCREW
    SCREW
  • 24
    5411979 HOSE-3/4'' ID RADIATOR OUTLET
    HOSE-3/4'' ID RADIATOR OUTLET
  • 25
    7080761 CABLE TIE, 14''
    CABLE TIE, 14''
  • 26
    8450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)
    LINE, FUEL, 1/4 ID(1525 CM.)
  • 27
    7052065 FITTING, 90 DEGREE
    FITTING, 90 DEGREE
  • 28
    7512084 SCREW
    SCREW
  • 29
    5246873 BRKT-SURGE TANK
    BRKT-SURGE TANK
  • 30
    5431673 TANK-SURGE
    TANK-SURGE
  • 31
    5433774 CAP, PLUG9X (GRN), FLEX TEMP
    CAP, PLUG9X (GRN), FLEX TEMP
  • 32
    5810279 GASKET
    GASKET
  • 33
    5430743 CAP, OVERFLOW
    CAP, OVERFLOW
