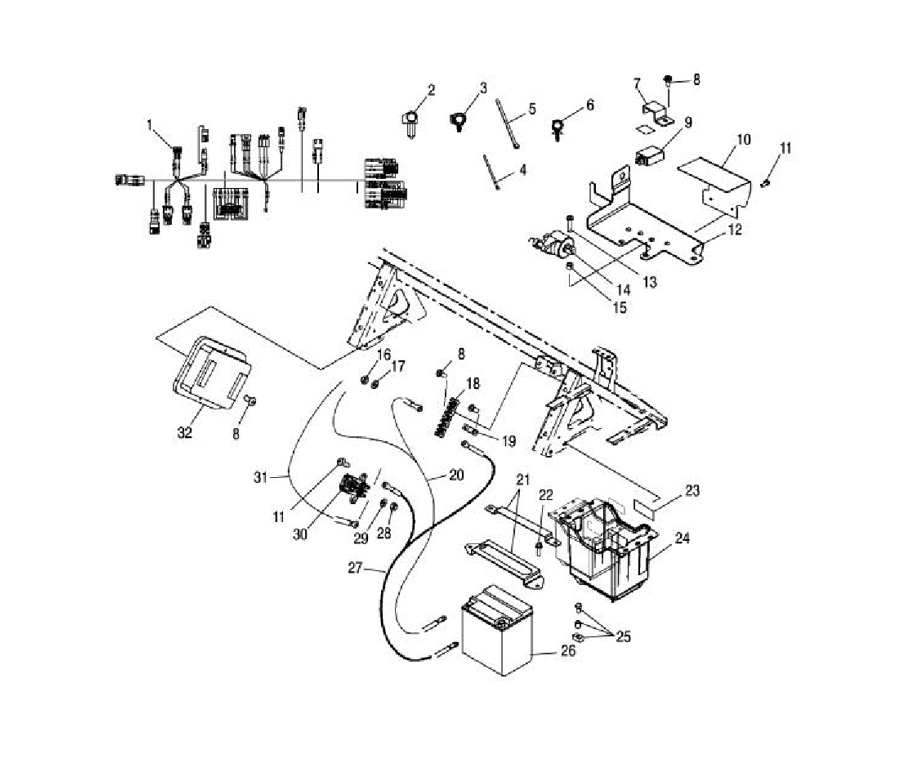

ELECTRICAL/BATTERY для Polaris RANGER 500 2X4 RED [R06RB50AA] - 2006 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    2410738 HARNESS-CHASSIS, 500 CARB
    HARNESS-CHASSIS, 500 CARB
  • 2
    7670102 CLIP
    CLIP
  • 3
    4020149 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 4
    7080138 CABLE TIE
    CABLE TIE
  • 5
    7080761 CABLE TIE, 14''
    CABLE TIE, 14''
  • 6
    7670116 CLIP, ROUTING, .472 B.D., HINGED (2X4)
    CLIP, ROUTING, .472 B.D., HINGED (2X4)
  • 7
    5246747 BRKT-CDI, DIGITAL, LONG
    BRKT-CDI, DIGITAL, LONG
  • 8
    7512018 SCREW
    SCREW
  • 9
    3089238 CDI SYSTEM
    CDI SYSTEM
  • 10
    5245617 BRKT-ELECT COVER
    BRKT-ELECT COVER
  • 11
    7512084 SCREW
    SCREW
  • 13
    7512018 SCREW
    SCREW
  • 14
    3085227 COIL, IGNITION
    COIL, IGNITION
  • 15
    7556318 SPACER-.26X.50X.31
    SPACER-.26X.50X.31
  • 16
    3280321 HEX NUT-NT0001
    HEX NUT-NT0001
  • 17
    7552615 WASHER, LOCK
    WASHER, LOCK
  • 18
    4011130 BLOCK-TERMINAL, 3 POST
    BLOCK-TERMINAL, 3 POST
  • 19
    5248659 STRAP-GROUND
    STRAP-GROUND
  • 20
    4010926 CABLE-GROUND, 10'' (BUILT BEFORE 8/04/05)
    CABLE-GROUND, 10'' (BUILT BEFORE 8/04/05)
  • 20
    4011214 CABLE-GROUND, 78''/10'' (BUILT AFTER 8/04/05)
    CABLE-GROUND, 78''/10'' (BUILT AFTER 8/04/05)
  • 21
    5248374 BRKT-BATTERY STRAP (BUILT BEFORE 8/04/05)
    BRKT-BATTERY STRAP (BUILT BEFORE 8/04/05)
  • 21
    5250213 BRKT-BATTERY STRAP (BUILT AFTER 8/04/05)
    BRKT-BATTERY STRAP (BUILT AFTER 8/04/05)
  • 22
    7517386 SCREW
    SCREW
  • 23
    5810455 PAD (BUILT AFTER 10/03/05)
    PAD (BUILT AFTER 10/03/05)
  • 24
    5434037 BOX-BATTERY
    BOX-BATTERY
  • 25
    2202213 KIT-BATTERY BOLT (LONG) (BUILT BEFORE 9/19/05)
    KIT-BATTERY BOLT (LONG) (BUILT BEFORE 9/19/05)
  • 25
    2202802 KIT-BATTERY BOLT (BUILT AFTER 8/04/05)
    KIT-BATTERY BOLT (BUILT AFTER 8/04/05)
  • 26
    4010595 BATTERY-30AH, 12 VOLT, AGM-SEALED
    BATTERY-30AH, 12 VOLT, AGM-SEALED
  • 27
    4011213 CABLE-POSITIVE, SPLIT
    CABLE-POSITIVE, SPLIT
  • 28
    7547283 NUT-1/4-20 HX JAM-Y
    NUT-1/4-20 HX JAM-Y
  • 29
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 30
    4011251 SWITCH-MAGNETIC
    SWITCH-MAGNETIC
  • 31
    4011249 CABLE-SOL/STARTER
    CABLE-SOL/STARTER
  • 32
    4011089 MODULE-500 ECM
    MODULE-500 ECM
