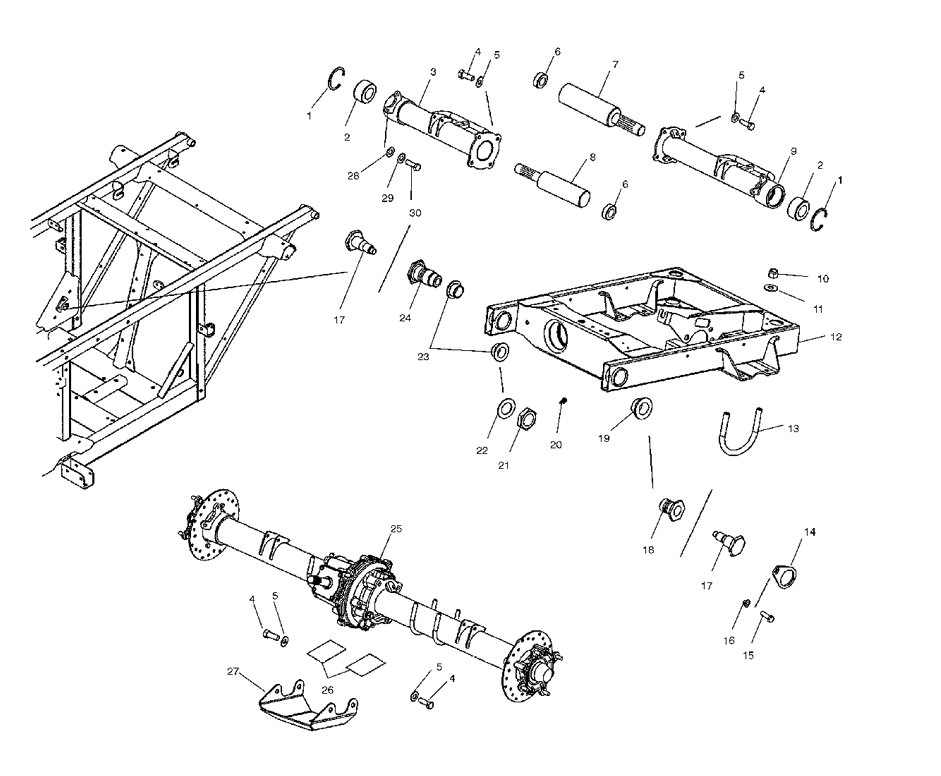

SUSPENSION - SWING ARM W/ REAR SHOCK ASSY для Polaris RANGER 2X4 SERIES 11 [A11RB42AA] - 2004 года выпуска`
-
№АртикулНазвание
-
17710440 RING,RETAININGRING,RETAINING
-
23585502 BEARINGBEARING
-
31013293-067 TUBE AXLE, RIGHT HAND, BLACKTUBE AXLE, RIGHT HAND, BLACK
-
47517585 BOLT-1/2-13X1 1/4 HXHD GR5-ZBOLT-1/2-13X1 1/4 HXHD GR5-Z
-
57553201 WASHER,SPLIT LOCK (IF BUILT BEFORE 7/07/03)WASHER,SPLIT LOCK (IF BUILT BEFORE 7/07/03)
-
65410772 O-RINGO-RING
-
71380213 ASM-DRIVESHAFT,AXLE, LEFT HANDASM-DRIVESHAFT,AXLE, LEFT HAND
-
81380214 ASM-DRIVESHAFT,AXLE, RIGHT HANDASM-DRIVESHAFT,AXLE, RIGHT HAND
-
91013292-067 TUBE AXLE, LEFT HAND, BLACKTUBE AXLE, LEFT HAND, BLACK
-
107542525 NUT, NYLOKNUT, NYLOK
-
117555984 WASHER,FLATWASHER,FLAT
-
121013295-067 SWING ARM, BLACKSWING ARM, BLACK
-
135245127 U-BOLT,RNDBND,7/16X3.62X3.12X1U-BOLT,RNDBND,7/16X3.62X3.12X1
-
145246229 KIT-BOLT,SWINGARMKIT-BOLT,SWINGARM
-
157512490 SCREWSCREW
-
167547180 NUT-FLANGED,3/8-16 NYLON-ZNUT-FLANGED,3/8-16 NYLON-Z
-
175131697 BOLT,SWINGARM PIVOTBOLT,SWINGARM PIVOT
-
185133166 BUSHING-PIVOT, LEFT HANDBUSHING-PIVOT, LEFT HAND
-
195434545 BUSHING-LEFT HAND,HYBRID, BLACKBUSHING-LEFT HAND,HYBRID, BLACK
-
207080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
217547082 NUT,HEX,JAMNUT,HEX,JAM
-
227556035 WASHER,FLATWASHER,FLAT
-
235434546 BUSHING-RIGHT HAND,HYBRID, BLACKBUSHING-RIGHT HAND,HYBRID, BLACK
-
245133167 BUSHING-PIVOT, RIGHT HANDBUSHING-PIVOT, RIGHT HAND
-
265811716 PAD-RUBBERPAD-RUBBER
-
275245665-067 PLATE-DIFFERENTIAL,SKID, BLACKPLATE-DIFFERENTIAL,SKID, BLACK
-
287558402 WASHER,FLATWASHER,FLAT
-
297552901 WASHER,SPRING LOCKWASHER,SPRING LOCK
-
307517445 SCREWSCREW
