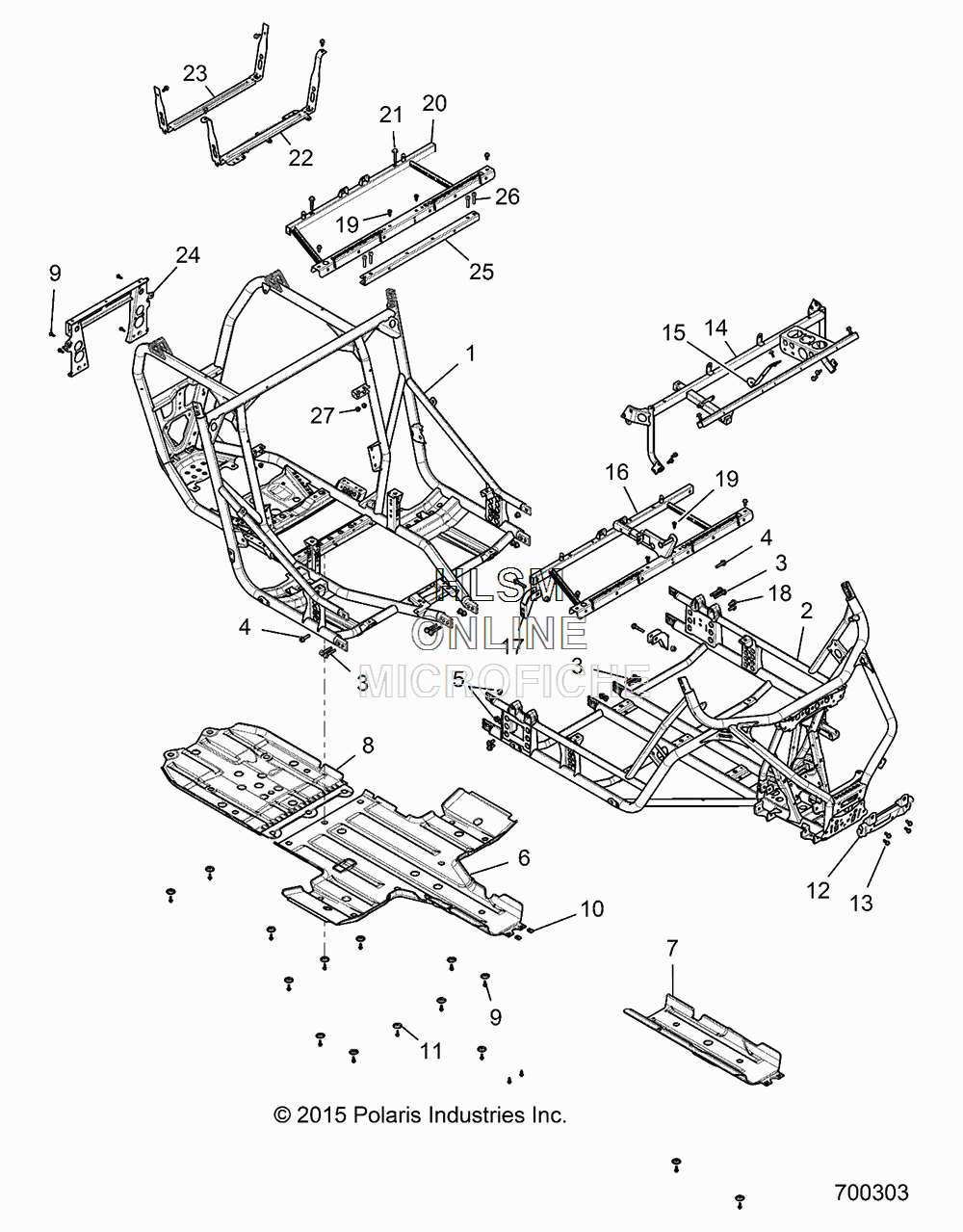

MAIN FRAME AND SKID PLATE для Polaris RZR XP4 TURBO MD (GHOST GRAY) [Z18VFE92NU] - 2018 года выпуска
-
№АртикулНазвание
-
11022402-458 WELD-MAIN FRAME, BLACKWELD-MAIN FRAME, BLACK
-
21022703-458 WELD-MAINFRAME, FRONT, MP, SWY, W, BKWELD-MAINFRAME, FRONT, MP, SWY, W, BK
-
37519285 SCREWSCREW
-
47519332 SCREWSCREW
-
57547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
65450239-070 PLATE, SKID, BLACKPLATE, SKID, BLACK
-
75450556-070 PLATE, SKID, BLACKPLATE, SKID, BLACK
-
85452063-070 PLATE, SKID, REAR, BLACKPLATE, SKID, REAR, BLACK
-
97518529 SCREWSCREW
-
107547674 NUT, U-TYPENUT, U-TYPE
-
117556065 WASHER, SKID PLATEWASHER, SKID PLATE
-
125259449-458 BRACKET, SUSPENSION, MOUNT, FRONT, MATTE BLACKBRACKET, SUSPENSION, MOUNT, FRONT, MATTE BLACK
-
137518555 BOLTBOLT
-
141020984-329 DASH, BLACKDASH, BLACK
-
155257304-329 BRACKET, DIN MOUNT, BLACKBRACKET, DIN MOUNT, BLACK
-
161020572-329 BASE, SEAT, MP, BLACKBASE, SEAT, MP, BLACK
-
175258097-329 BRACKET, SEAT SUPPORT, FRONT, MP, BLACKBRACKET, SEAT SUPPORT, FRONT, MP, BLACK
-
187518934 SCREWSCREW
-
197519650 SCREWSCREW
-
201019777-329 BASE, SEAT, REAR, BLACKBASE, SEAT, REAR, BLACK
-
217518474 BOLTBOLT
-
225260947-329 BRACKET, BOX STRAP, BLACKBRACKET, BOX STRAP, BLACK
-
235260948-329 BRACKET, BOX SUPPORT, REAR, BLACKBRACKET, BOX SUPPORT, REAR, BLACK
-
241019529-458 SUPPORT, REAR, MATTE BLACKSUPPORT, REAR, MATTE BLACK
-
255260539-329 BRKT-CLOSE OFF SUPPORT, BLACKBRKT-CLOSE OFF SUPPORT, BLACK
-
267516732 SCREWSCREW
-
277547332 NUTNUT
