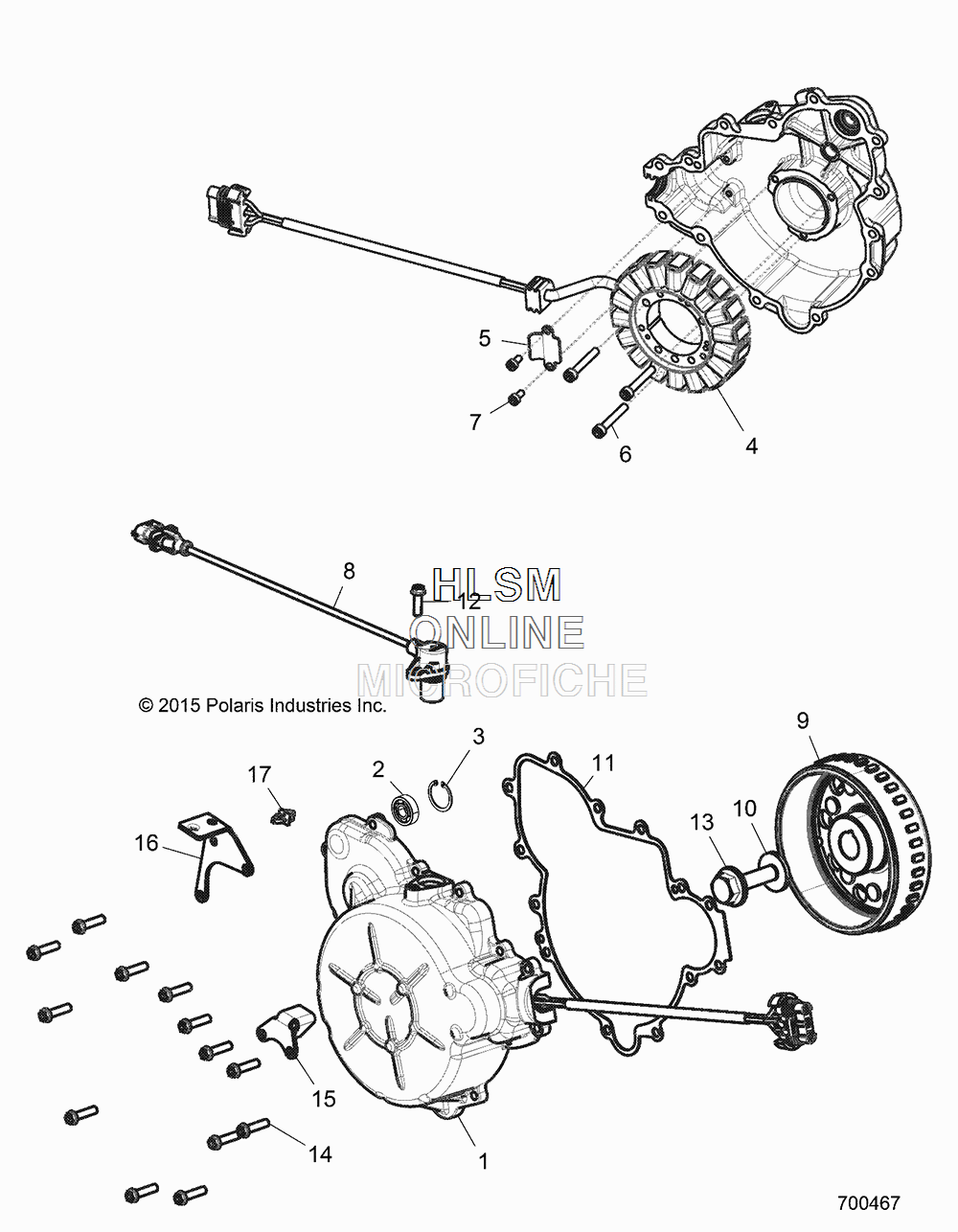

MAGNETO для Polaris RZR XP TURBO LATIN [Z18VDE92LS] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1204518 ASM., IGNITION COVER (INCL. 2, 3)
    ASM., IGNITION COVER (INCL. 2, 3)
  • 2
    3514717 BEARING, BALL
    BEARING, BALL
  • 3
    7710654 RING, SNAP
    RING, SNAP
  • 4
    4015340 STATOR
    STATOR
  • 5
    5255473 BRACKET, RETAINER, WIRE
    BRACKET, RETAINER, WIRE
  • 6
    7510005 SCREW
    SCREW
  • 7
    7517847 SCREW
    SCREW
  • 8
    2411719 SENSOR, CRANK POSITION
    SENSOR, CRANK POSITION
  • 9
    4015496 FLYWHEEL
    FLYWHEEL
  • 10
    7556885 WSHR-32X12X4, HARD
    WSHR-32X12X4, HARD
  • 11
    5814160 GASKET, COVER, IGNITION
    GASKET, COVER, IGNITION
  • 12
    7518576 SCREW
    SCREW
  • 13
    7520178 SCREW
    SCREW
  • 14
    7519297 SCREW
    SCREW
  • 15
    5260300 BRKT-OIL, LINE, RETAINER
    BRKT-OIL, LINE, RETAINER
  • 16
    5260666 BRKT-CPS/COOLANT
    BRKT-CPS/COOLANT
  • 17
    7081477 CLIP-WIRE, 6.35MM
    CLIP-WIRE, 6.35MM
