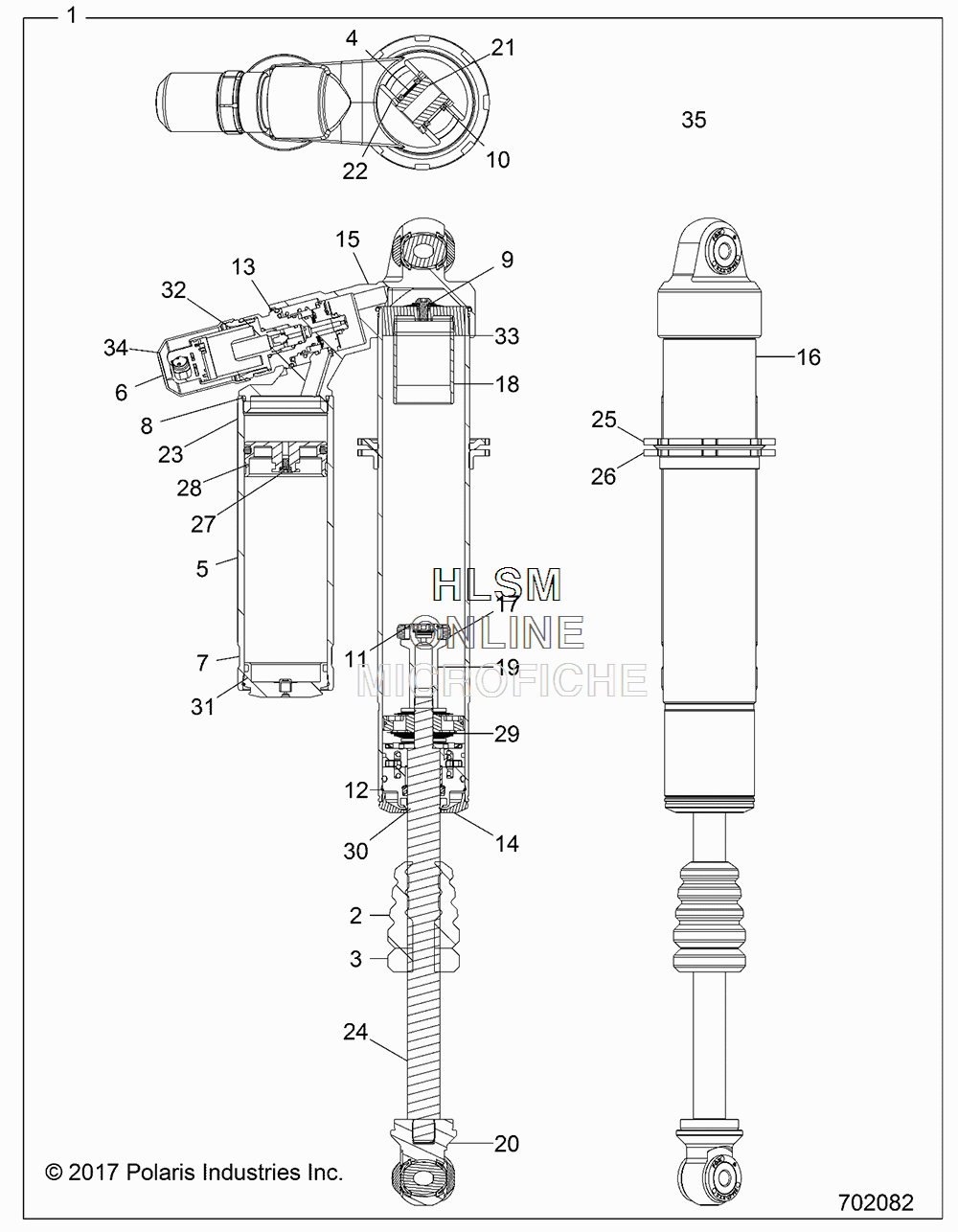

SUSPENSION - FRONT SHOCK для Polaris RZR XP TURBO EPS DYNAMIX EDITION (BLACK PEARL) [Z18VDL92BK] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    7044771 SHOCK-FRONT, FOXLIVE, LEFT HAND (NCL. ALL)
    SHOCK-FRONT, FOXLIVE, LEFT HAND (NCL. ALL)
  • 1
    7044772 SHOCK-FRONT, FOXLIVE, RIGHT HAND (NCL. ALL)
    SHOCK-FRONT, FOXLIVE, RIGHT HAND (NCL. ALL)
  • 2
    1500844 BUMPER
    BUMPER
  • 3
    1500866 BUMPER, BLACK
    BUMPER, BLACK
  • 4
    1501010 BUSHING, EYELET
    BUSHING, EYELET
  • 6
    1501272 DECAL - IRD CVR, LIVE
    DECAL - IRD CVR, LIVE
  • 7
    1501273 DECAL - BAND
    DECAL - BAND
  • 8
    1501048 O-RING
    O-RING
  • 9
    1501049 O-RING
    O-RING
  • 10
    1501274 SEAL - CANNED WEATHER
    SEAL - CANNED WEATHER
  • 11
    1501275 RING - RETAINING
    RING - RETAINING
  • 12
    1500960 WIRE, RETAINING RING
    WIRE, RETAINING RING
  • 13
    1501052 RETAINING RING, WIRE
    RETAINING RING, WIRE
  • 14
    1501053 BEARING CAP
    BEARING CAP
  • 15
    1501276 BODY CAP - HIFLOW 45'
    BODY CAP - HIFLOW 45'
  • 15
    1501277 BODY CAP - HIFLOW 135'
    BODY CAP - HIFLOW 135'
  • 16
    1501278 BODY - 2.25 X 134
    BODY - 2.25 X 134
  • 18
    1501280 TUBE - B.O. CUP
    TUBE - B.O. CUP
  • 19
    1501281 POST - P.S. DAMP.
    POST - P.S. DAMP.
  • 21
    1501087 SLEEVE, .397 ID X .875 OD X 1.181 TLG
    SLEEVE, .397 ID X .875 OD X 1.181 TLG
  • 22
    1501283 SPACER - NYLON
    SPACER - NYLON
  • 23
    1501093 RESERVOIR
    RESERVOIR
  • 24
    1501284 SHAFT - .875 X 12.1TLG
    SHAFT - .875 X 12.1TLG
  • 25
    1501285 RING - PRELOAD B/U
    RING - PRELOAD B/U
  • 26
    1501286 RING - PRELOAD
    RING - PRELOAD
  • 27
    1500161 FLAT HEAD SOCKET CAP W/ ORING
    FLAT HEAD SOCKET CAP W/ ORING
  • 28
    1501060 PISTON ASSEMBLY, FLOATING
    PISTON ASSEMBLY, FLOATING
  • 30
    1501287 ASM - BEARING .875ID
    ASM - BEARING .875ID
  • 31
    1501063 RESERVOIR END CAP ASSEMBLY
    RESERVOIR END CAP ASSEMBLY
  • 32
    1501288 ADJUSTER - DSC HIFLO
    ADJUSTER - DSC HIFLO
  • 33
    1501289 CUP BASE
    CUP BASE
  • 34
    1501290 COVER - LIVE VALVE
    COVER - LIVE VALVE
  • 35
    1501291 K - REBUILD 2.5
    K - REBUILD 2.5
