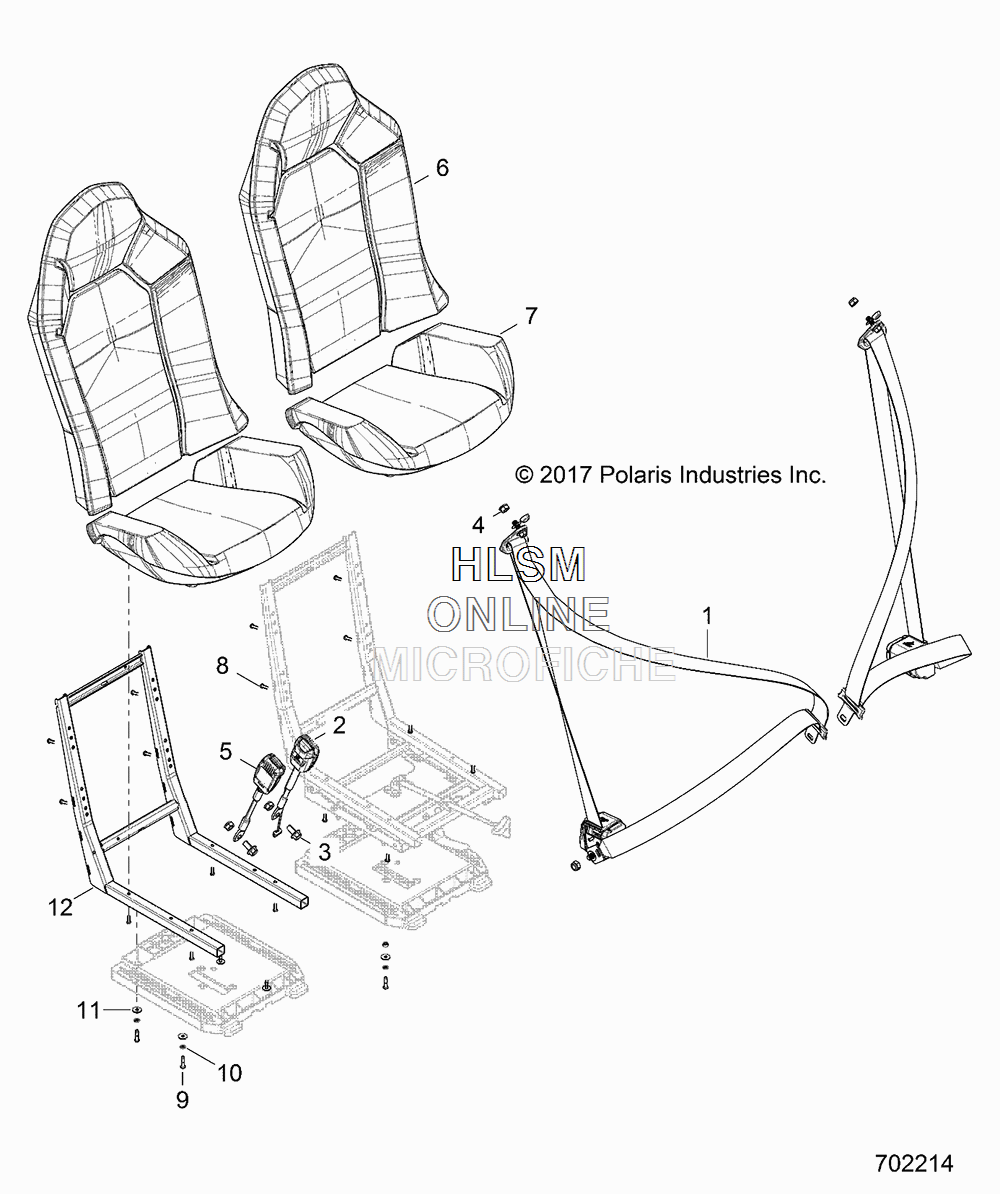

SEAT W/ BELT для Polaris RZR XP 1000 TRACTOR W/ HITCH [Z18VDS99CK] - 2018 года выпуска
-
№АртикулНазвание
-
12636439 ASM-SEAT BELT, 3PTASM-SEAT BELT, 3PT
-
22636639 BUCKLE-SEATBELT, 90, SWITCH, TRBUCKLE-SEATBELT, 90, SWITCH, TR
-
37519072 SCREWSCREW
-
47540000 NUT, NYLOKNUT, NYLOK
-
52636640 BUCKLE-SEAT BELT, 11.5, 90, TRBUCKLE-SEAT BELT, 11.5, 90, TR
-
62686791 ASM-SEAT BACK, HAV RED/BLACK (BUILT UP TO 10/10/17)ASM-SEAT BACK, HAV RED/BLACK (BUILT UP TO 10/10/17)
-
62687887 ASM-SEAT BACK, HAV RED/BLACK (BUILT FROM 10/10/17 TO 12/31/17)ASM-SEAT BACK, HAV RED/BLACK (BUILT FROM 10/10/17 TO 12/31/17)
-
62688426 ASM-SEAT BACK, HAV RED/BLACK (BUILT AFTER 12/31/17)ASM-SEAT BACK, HAV RED/BLACK (BUILT AFTER 12/31/17)
-
72686794 ASM-SEAT BTM, HAV RED/BLACK (BUILT UP TO 10/10/17)ASM-SEAT BTM, HAV RED/BLACK (BUILT UP TO 10/10/17)
-
72687890 ASM-SEAT BTM, HAV RED/BLACK (BUILT FROM 10/10/17 TO 12/31/17)ASM-SEAT BTM, HAV RED/BLACK (BUILT FROM 10/10/17 TO 12/31/17)
-
72688427 ASM-SEAT BTM, HAV RED/BLACK (BUILT AFTER 12/31/17)ASM-SEAT BTM, HAV RED/BLACK (BUILT AFTER 12/31/17)
-
87515177 SCREWSCREW
-
97519296 SCREWSCREW
-
107552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
117555859 WASHER, FLATWASHER, FLAT
-
121021289 WELD-SEAT FRAMEWELD-SEAT FRAME
