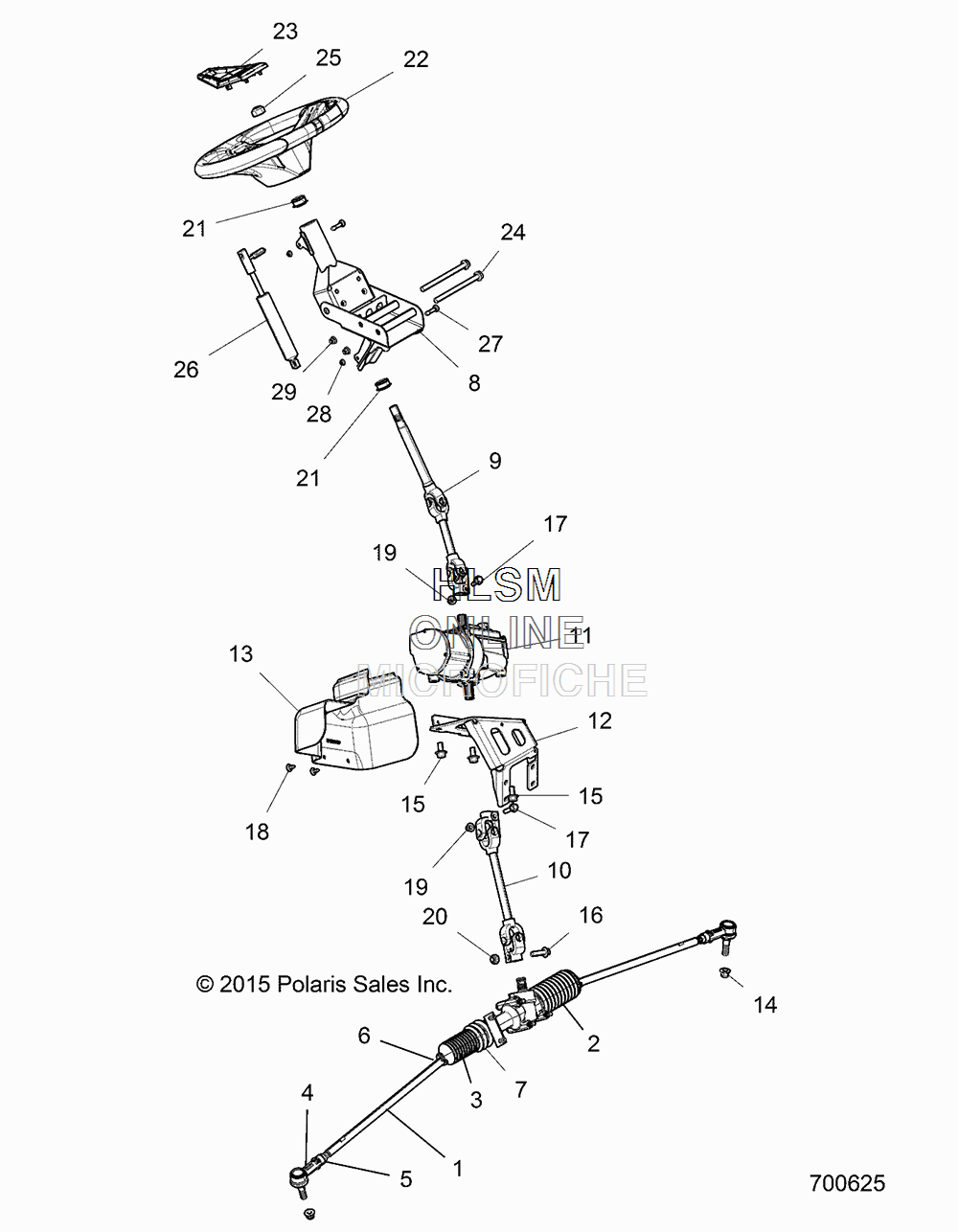

POWER STEERING ASSY. для Polaris RZR XP 1000 MD [Z18VDE99NK] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1824469 ASM., GEAR BOX, STEERING (INCL. 2-7)
    ASM., GEAR BOX, STEERING (INCL. 2-7)
  • 2
    5412012 D.S. BELLOWS
    D.S. BELLOWS
  • 3
    5412013 P.S. BELLOWS
    P.S. BELLOWS
  • 4
    7061234 TIE ROD, OUTER
    TIE ROD, OUTER
  • 5
    2205058 NUT, JAM
    NUT, JAM
  • 6
    7082150 CLAMP, SMALL
    CLAMP, SMALL
  • 7
    7080979 CLAMP, LARGE
    CLAMP, LARGE
  • 8
    1824420-458 ASM., TILT, STEERING, RIVETED, M10, MATTE BLACK
    ASM., TILT, STEERING, RIVETED, M10, MATTE BLACK
  • 9
    1823891 SHAFT, STEERING, UPPER
    SHAFT, STEERING, UPPER
  • 10
    1824012 SHAFT, STEERING LOWER, EPS
    SHAFT, STEERING LOWER, EPS
  • 11
    2413483 ASM-POWER STEERING, RZR, 2.0T
    ASM-POWER STEERING, RZR, 2.0T
  • 12
    5257531-329 MOUNT, EPS, BLACK
    MOUNT, EPS, BLACK
  • 13
    5438626 COVER-EPS
    COVER-EPS
  • 14
    7547334 NUT
    NUT
  • 15
    7518558 BOLT
    BOLT
  • 16
    7518644 SCREW
    SCREW
  • 17
    7519052 SCREW
    SCREW
  • 18
    7519092 SCR-TXTH-M6X1.0X15 ZPB TAP
    SCR-TXTH-M6X1.0X15 ZPB TAP
  • 19
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 20
    7547385 NUT
    NUT
  • 21
    7556675 BUSHING, STEERING
    BUSHING, STEERING
  • 22
    1824014 WHEEL, STEERING
    WHEEL, STEERING
  • 23
    5450255-293 CAP, STEERING WHEEL, INDY RED
    CAP, STEERING WHEEL, INDY RED
  • 24
    7518665 BOLT
    BOLT
  • 25
    7547506 NUT
    NUT
  • 26
    7044098 ASM., SHOCK, OIL LOCKING
    ASM., SHOCK, OIL LOCKING
  • 27
    7519980 BOLT, SHOULDER
    BOLT, SHOULDER
  • 28
    7546703 NUT, NYLOK
    NUT, NYLOK
  • 29
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
