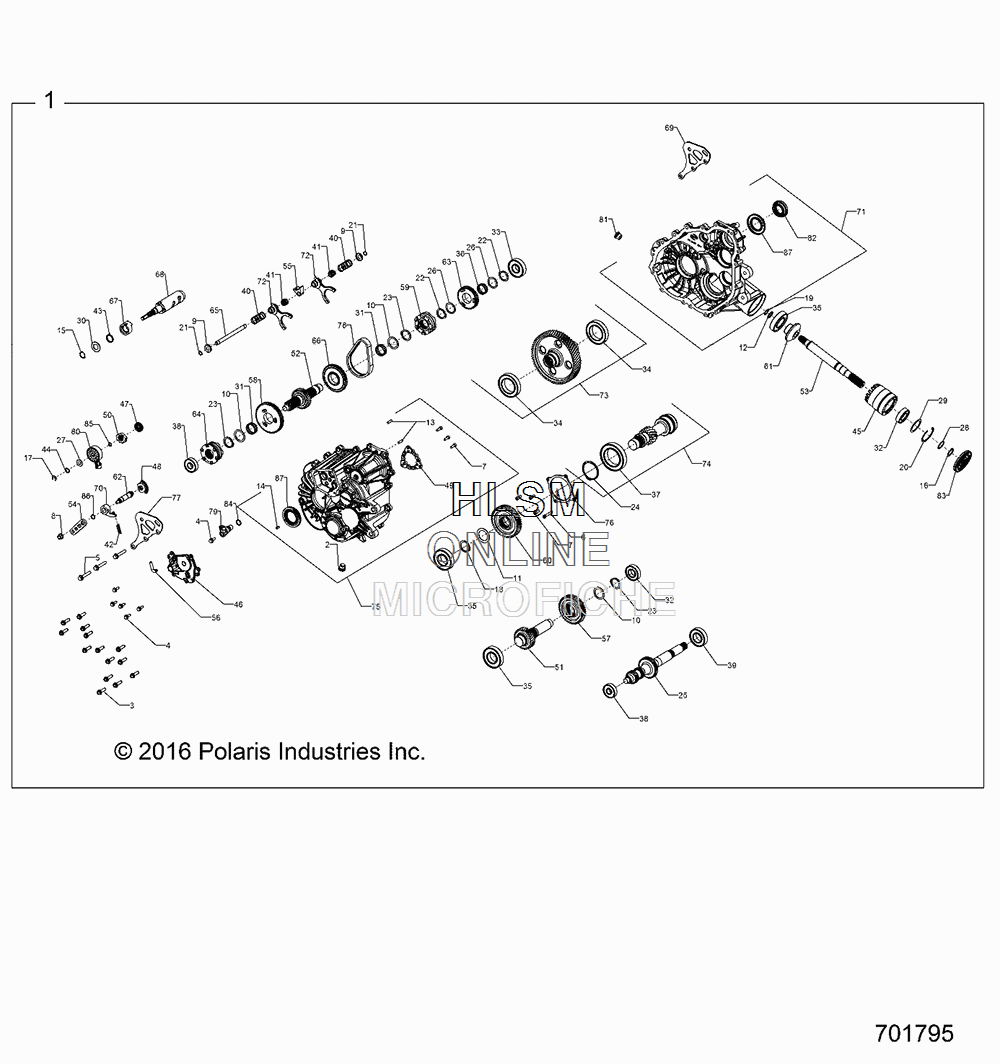

GEARCASE - MAIN - INTERNAL COMPONENTS для Polaris RZR XP 1000 EPS TRAILS AND ROCKS EDITION [Z18VDR99BL] - 2018 года выпуска
-
№АртикулНазвание
-
11333536 ASM-GEARCASE, COMPLETE (INCL ALL)ASM-GEARCASE, COMPLETE (INCL ALL)
-
23234756 PLUG M18 X 1.5, MAGNETICPLUG M18 X 1.5, MAGNETIC
-
33234898 SCREW, HEX FLANGE HEAD M8 X 1.25 X 30SCREW, HEX FLANGE HEAD M8 X 1.25 X 30
-
43235206 SCREW, HEX FLANGE HEAD M6 X 1 X 20SCREW, HEX FLANGE HEAD M6 X 1 X 20
-
53235207 SCREW HEX FLANGE M8 X 50SCREW HEX FLANGE M8 X 50
-
63235208 SCREW, SOCKET HEAD CAP, M6 X 1 X 40SCREW, SOCKET HEAD CAP, M6 X 1 X 40
-
73235332 SCREW, SOCKET HEAD CAP, M6 X 1 X 18SCREW, SOCKET HEAD CAP, M6 X 1 X 18
-
83235210 NUT, LOCK HEX FLANGE NYLON M8 X 1.25NUT, LOCK HEX FLANGE NYLON M8 X 1.25
-
93234091 WASHER CUPWASHER CUP
-
103235211 WASHER 32.3 X 42 X 1.5WASHER 32.3 X 42 X 1.5
-
113235212 WASHER 35.6 X 50 X 1.5WASHER 35.6 X 50 X 1.5
-
123235213 WASHER 17.3 X 25 X 1.5WASHER 17.3 X 25 X 1.5
-
133234330 PIN, DOWEL 6 X 20PIN, DOWEL 6 X 20
-
147043746 PIN, SPRING SLOTTED 6 X 12PIN, SPRING SLOTTED 6 X 12
-
153233045 RING, RETAINING BASIC EXTERNAL 0.75RING, RETAINING BASIC EXTERNAL 0.75
-
163233106 RING, RETAINING BASIC EXTERNAL 0.984RING, RETAINING BASIC EXTERNAL 0.984
-
173233834 RING SNAPRING SNAP
-
183233364 RING, RETAINING SHAFT, DIA. 1.375RING, RETAINING SHAFT, DIA. 1.375
-
193234318 RING, RETAINING EXTERNAL SHR-66RING, RETAINING EXTERNAL SHR-66
-
203234269 RING, RETAINING BASIC INTERNAL 2.047RING, RETAINING BASIC INTERNAL 2.047
-
213234090 RING, RETAINING BASIC EXTERNAL 0.428RING, RETAINING BASIC EXTERNAL 0.428
-
223234205 RING, RETAININGRING, RETAINING
-
233235214 RING, EXTERNAL SNAP 32 X 2.4RING, EXTERNAL SNAP 32 X 2.4
-
243235216 RING, RETAINING VSH-237RING, RETAINING VSH-237
-
253235953 SHAFT, INPUT 45T/20T/25TSHAFT, INPUT 45T/20T/25T
-
263233378 WASHER, THRUST 1.187 X 1.5 X 0.06WASHER, THRUST 1.187 X 1.5 X 0.06
-
273234642 WASHER, THRUST 0.446 X 0.88 X 0.025WASHER, THRUST 0.446 X 0.88 X 0.025
-
283234272 SHIM 1.18 OD X 0.995 IDSHIM 1.18 OD X 0.995 ID
-
293234273 SHIM 2.04 OD X 1.63 IDSHIM 2.04 OD X 1.63 ID
-
303235883 SPACER, 19.4 X 34 X 2SPACER, 19.4 X 34 X 2
-
313233014 BEARING, NEEDLE CAGE ASSYBEARING, NEEDLE CAGE ASSY
-
323233019 BEARING, BALL 6205 C3 25X52X15BEARING, BALL 6205 C3 25X52X15
-
333233020 BEARING, BALL 6305 C3, 25 X 62 X 17BEARING, BALL 6305 C3, 25 X 62 X 17
-
343233268 BEARING, BALL 6010 C3 50X80X16BEARING, BALL 6010 C3 50X80X16
-
353234065 BEARING, BALL 6207 C3 35X72X17BEARING, BALL 6207 C3 35X72X17
-
363233384 BEARING, NEEDLE CAGE ASSYBEARING, NEEDLE CAGE ASSY
-
373235218 BEARING, BALL 6012 C3 60 X 95 X 18BEARING, BALL 6012 C3 60 X 95 X 18
-
383234652 BEARING, BALL 6303 17 X 47 X 14BEARING, BALL 6303 17 X 47 X 14
-
393235496 BEARING, BALL 6206RSH2 STD 30X62X16BEARING, BALL 6206RSH2 STD 30X62X16
-
403234078 SPRING, COMPRESSION 0.92 O.D. X 2SPRING, COMPRESSION 0.92 O.D. X 2
-
413234089 SPRING, COMPRESSION 0.46 I.D. X 0.73SPRING, COMPRESSION 0.46 I.D. X 0.73
-
423234578 SPRING, COMPRESSION DETENTSPRING, COMPRESSION DETENT
-
433235885 SPRING, TORSIONSPRING, TORSION
-
443235327 SPRING, WASHERSPRING, WASHER
-
453234278 TUBE, SNORKEL MACHTUBE, SNORKEL MACH
-
463235954 COVER, SECTOR GEARS, MACHCOVER, SECTOR GEARS, MACH
-
473233839 GEAR, SECTOR 16TGEAR, SECTOR 16T
-
483233832 GEAR, SECTOR 31TGEAR, SECTOR 31T
-
493235456 PLATE, PARK 12-FACEPLATE, PARK 12-FACE
-
503235982 STAR, DETENTSTAR, DETENT
-
513235223 SHAFT, IDLER 29TSHAFT, IDLER 29T
-
523235224 SHAFT, REVERSE 29TSHAFT, REVERSE 29T
-
533235394 SHAFT, FRONT OUTPUTSHAFT, FRONT OUTPUT
-
543235227 BELLCRANK 92 DEGREEBELLCRANK 92 DEGREE
-
553234073 COLLAR, SHIFTCOLLAR, SHIFT
-
563234230 TUBE, VENT 90 -1/4IN HOSETUBE, VENT 90 -1/4IN HOSE
-
573235229 GEAR, 44T STAGE 2GEAR, 44T STAGE 2
-
583235232 GEAR, LOW 67TGEAR, LOW 67T
-
593235233 ENGAGEMENT DOG, 6-FACEENGAGEMENT DOG, 6-FACE
-
603235236 GEAR, 46T STAGE 3GEAR, 46T STAGE 3
-
613235237 GEAR, 13T SNORKELGEAR, 13T SNORKEL
-
623235238 SHAFT SHIFTSHAFT SHIFT
-
633235396 GEAR, 49TGEAR, 49T
-
643235457 SHIFT DOG, PARKSHIFT DOG, PARK
-
653235542 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
663235762 SPROCKET 48T 6-FACESPROCKET 48T 6-FACE
-
673235983 PARK CAMPARK CAM
-
683235984 DRUM, SHIFT MACHDRUM, SHIFT MACH
-
693235558 WELDMENT, REAR MOUNT BRACKETWELDMENT, REAR MOUNT BRACKET
-
703235452 PAWL DETENT, ROLLERPAWL DETENT, ROLLER
-
713235514 ASM., LEFT HAND CASEASM., LEFT HAND CASE
-
723235920 ASM., SHIFT FORKASM., SHIFT FORK
-
733235955 ASM., OUTPUTASM., OUTPUT
-
743235956 ASM., PINIONASM., PINION
-
753235957 ASM., RIGHT HAND COVERASM., RIGHT HAND COVER
-
763235241 COVER, BEARING CENTER DRIVECOVER, BEARING CENTER DRIVE
-
773235559 BRACKET, REAR MOUNTBRACKET, REAR MOUNT
-
783235633 CHAIN SILENT, TYPE 103 .25P X .48W X 58LCHAIN SILENT, TYPE 103 .25P X .48W X 58L
-
794013908 SENSOR SPEEDSENSOR SPEED
-
807662299 SWITCH, ROTARY 2 PIN RESISTIVESWITCH, ROTARY 2 PIN RESISTIVE
-
813234755 PLUG M18 X 1.5PLUG M18 X 1.5
-
823235495 SEAL, TRIPLE LIP, VITON HELIX 30 X47SEAL, TRIPLE LIP, VITON HELIX 30 X47
-
833235658 SEAL, TRIPLE LIP, VITON 25 X 80 X 10SEAL, TRIPLE LIP, VITON 25 X 80 X 10
-
843234302 O-RING, -113O-RING, -113
-
853233836 O-RING, -12 VITONO-RING, -12 VITON
-
863233828 O-RING, -14 VITONO-RING, -14 VITON
-
873235052 SEAL, TRIPLE LIP, VITON 40 X 70 X 7SEAL, TRIPLE LIP, VITON 40 X 70 X 7
