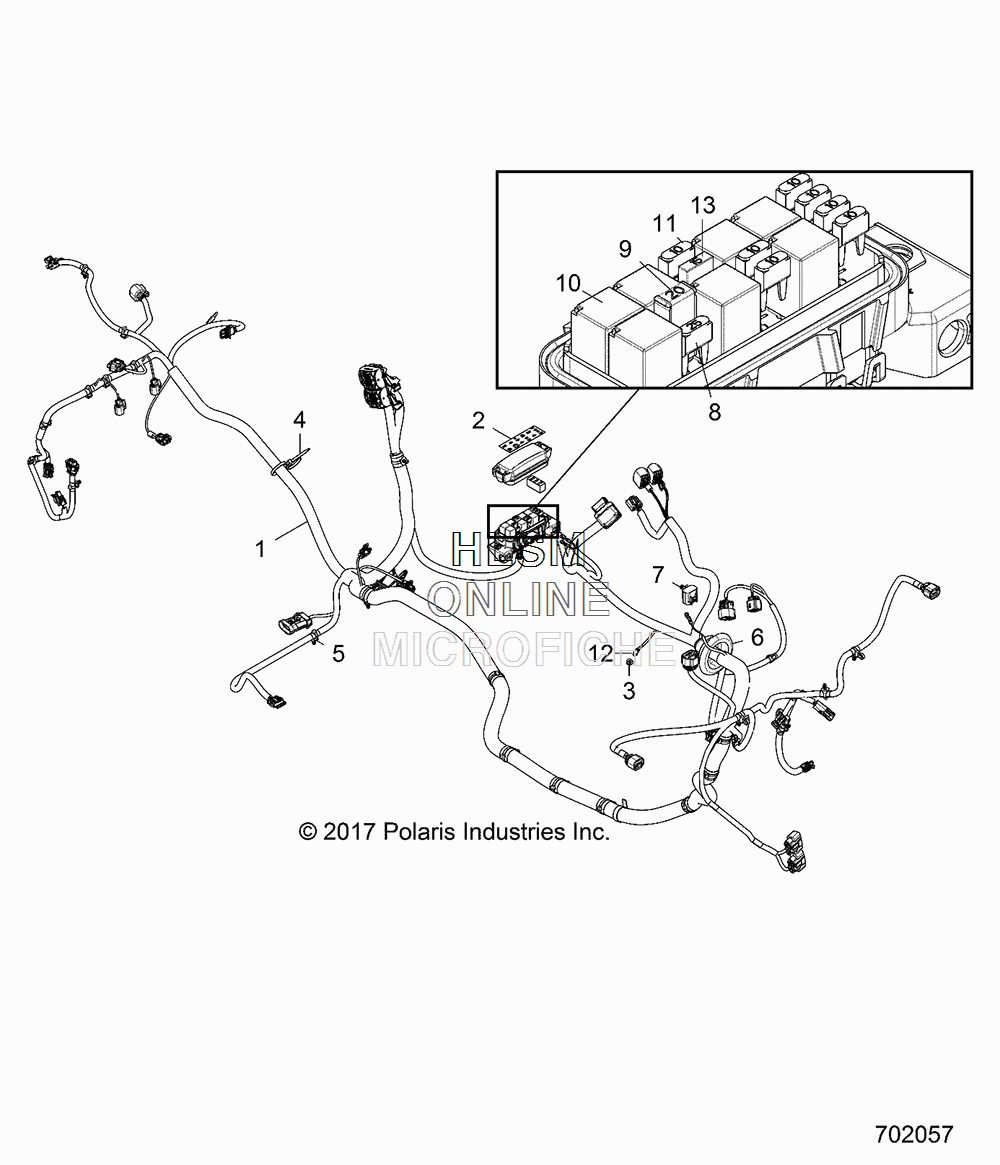

WIRE HARNESS для Polaris RZR S 900 EPS (BLACK PEARL) [Z18VBE87BK] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2414026 HARNESS-CHASSIS, RZR, 900, EPS (INCL. 2-12)
    HARNESS-CHASSIS, RZR, 900, EPS (INCL. 2-12)
  • 2
    7186513 LABEL-FUSE BOX
    LABEL-FUSE BOX
  • 3
    7082020 CLIP-ROUTING, DIN BOX
    CLIP-ROUTING, DIN BOX
  • 4
    7081916 STRAP-PANDUIT, DOUBLE LOOP, 260 MM
    STRAP-PANDUIT, DOUBLE LOOP, 260 MM
  • 5
    7081496 CLIP-ROUTING
    CLIP-ROUTING
  • 6
    5813954 GROMMET-65MM, BLACK
    GROMMET-65MM, BLACK
  • 7
    4012170 COVER-DIAGNOSTIC, W/CLIP
    COVER-DIAGNOSTIC, W/CLIP
  • 8
    4011653 FUSE-25A, MINI BLADE
    FUSE-25A, MINI BLADE
  • 9
    4011372 BREAKER-CIRCUIT, 20 AMP
    BREAKER-CIRCUIT, 20 AMP
  • 10
    4011283 RELAY-SPST, SERIES 303, SEALED, 12V, 20A
    RELAY-SPST, SERIES 303, SEALED, 12V, 20A
  • 11
    2434016 FUSE-IGNITION, 10 AMP
    FUSE-IGNITION, 10 AMP
  • 12
    2413217 LED-PANEL MNT, 12V, BLUE
    LED-PANEL MNT, 12V, BLUE
  • 13
    2410280 FUSE-MINI BLADE, 15 AMP
    FUSE-MINI BLADE, 15 AMP
