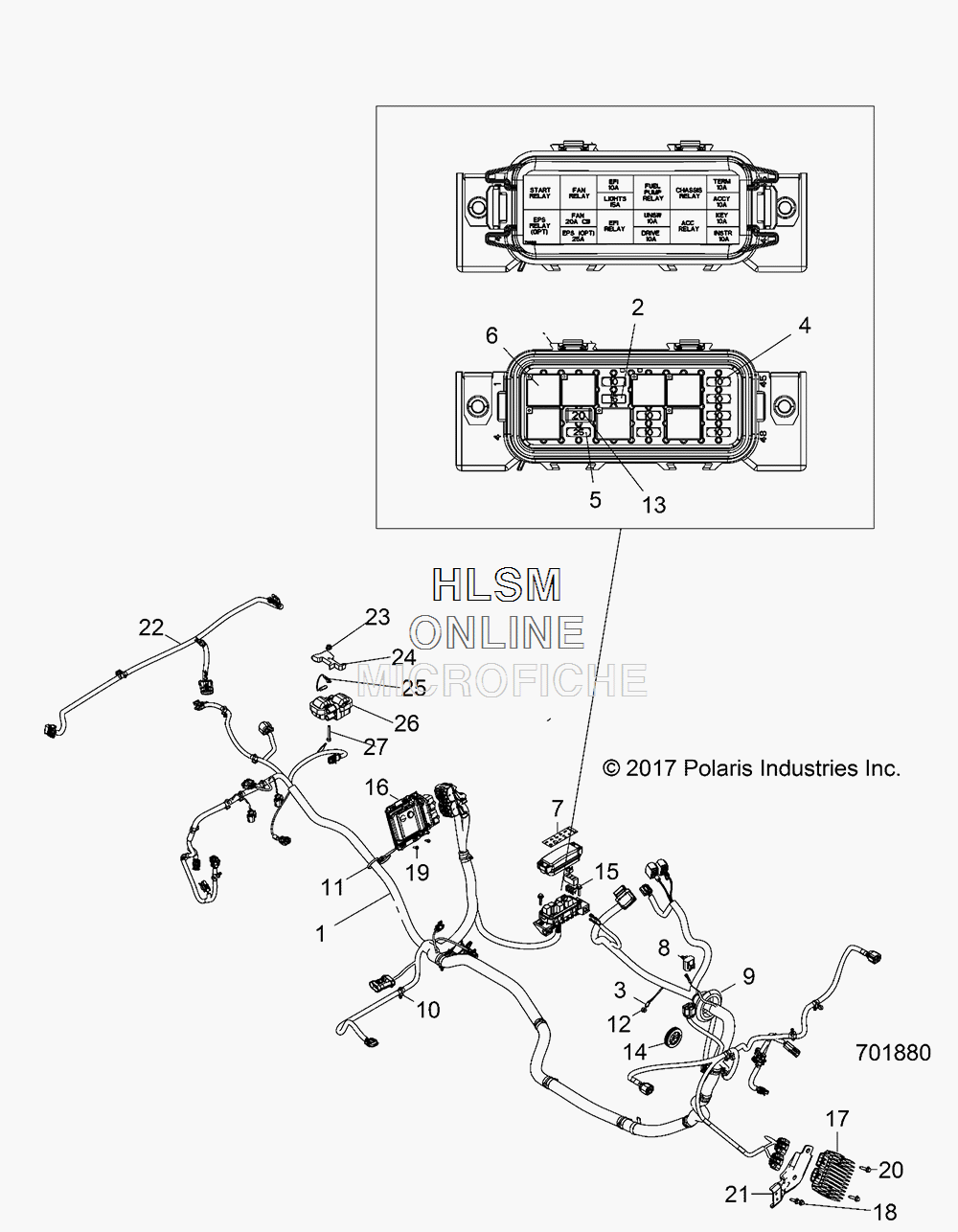

WIRE HARNESS для Polaris RZR S 1000 EPS (WHITE LIGHTNING) [Z18VBE99BW] - 2018 года выпуска
-
№АртикулНазвание
-
12414029 HARNESS-CHASSIS, RZRS, 1000 (INCL 2-13)HARNESS-CHASSIS, RZRS, 1000 (INCL 2-13)
-
22410280 FUSE-MINI BLADE, 15 AMPFUSE-MINI BLADE, 15 AMP
-
32413217 LED-PANEL MNT, 12V, BLUELED-PANEL MNT, 12V, BLUE
-
42434016 FUSE-IGNITION, 10 AMPFUSE-IGNITION, 10 AMP
-
54011653 FUSE-25 AMP, MINI BLADEFUSE-25 AMP, MINI BLADE
-
64011283 RELAY-SPST, SERIES 303, SEALEDRELAY-SPST, SERIES 303, SEALED
-
77186513 LABEL-FUSE BOXLABEL-FUSE BOX
-
84012170 COVER-DIAGNOSTIC, W/CLIPCOVER-DIAGNOSTIC, W/CLIP
-
95813954 GROMMET-65MM, BLACKGROMMET-65MM, BLACK
-
107081496 CLIP-ROUTINGCLIP-ROUTING
-
117081916 CLIP-DOUBLE CABLE TIE W/XMAS TREE 6.35MM HOLE (BK)CLIP-DOUBLE CABLE TIE W/XMAS TREE 6.35MM HOLE (BK)
-
127082020 CLIP-ROUTING, DIN BOXCLIP-ROUTING, DIN BOX
-
134011372 BREAKER-CIRCUIT, 20 AMPBREAKER-CIRCUIT, 20 AMP
-
145414440 GROMMETGROMMET
-
157518533 BOLT, FLANGE, BLACKBOLT, FLANGE, BLACK
-
164014125 ECM, NO STARTECM, NO START
-
174016868 REGULATOR-3PH, 50A, SERIES, HISPDREGULATOR-3PH, 50A, SERIES, HISPD
-
187518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BLSCR-M6X1.0X20, HXHD, FLG, TDFM, BL
-
197519091 SCREWSCREW
-
207519342 SCR-TFHFL-M6X1.0X25, ZODSCR-TFHFL-M6X1.0X25, ZOD
-
215264572-329 BRKT-MOUNT, REGULATOR, ECOATBRKT-MOUNT, REGULATOR, ECOAT
-
222412287 HARNESS, BOXHARNESS, BOX
-
237547274 NUT-M6 FLANGE, NYLOCNUT-M6 FLANGE, NYLOC
-
245436577 SPACER-COIL MOUNTSPACER-COIL MOUNT
-
254014422 JUMPER, COIL GROUNDJUMPER, COIL GROUND
-
264010425 COIL-EFICOIL-EFI
-
277518780 SCR-M6X1.0X40, HX/SOC/CP-BSCR-M6X1.0X40, HX/SOC/CP-B
