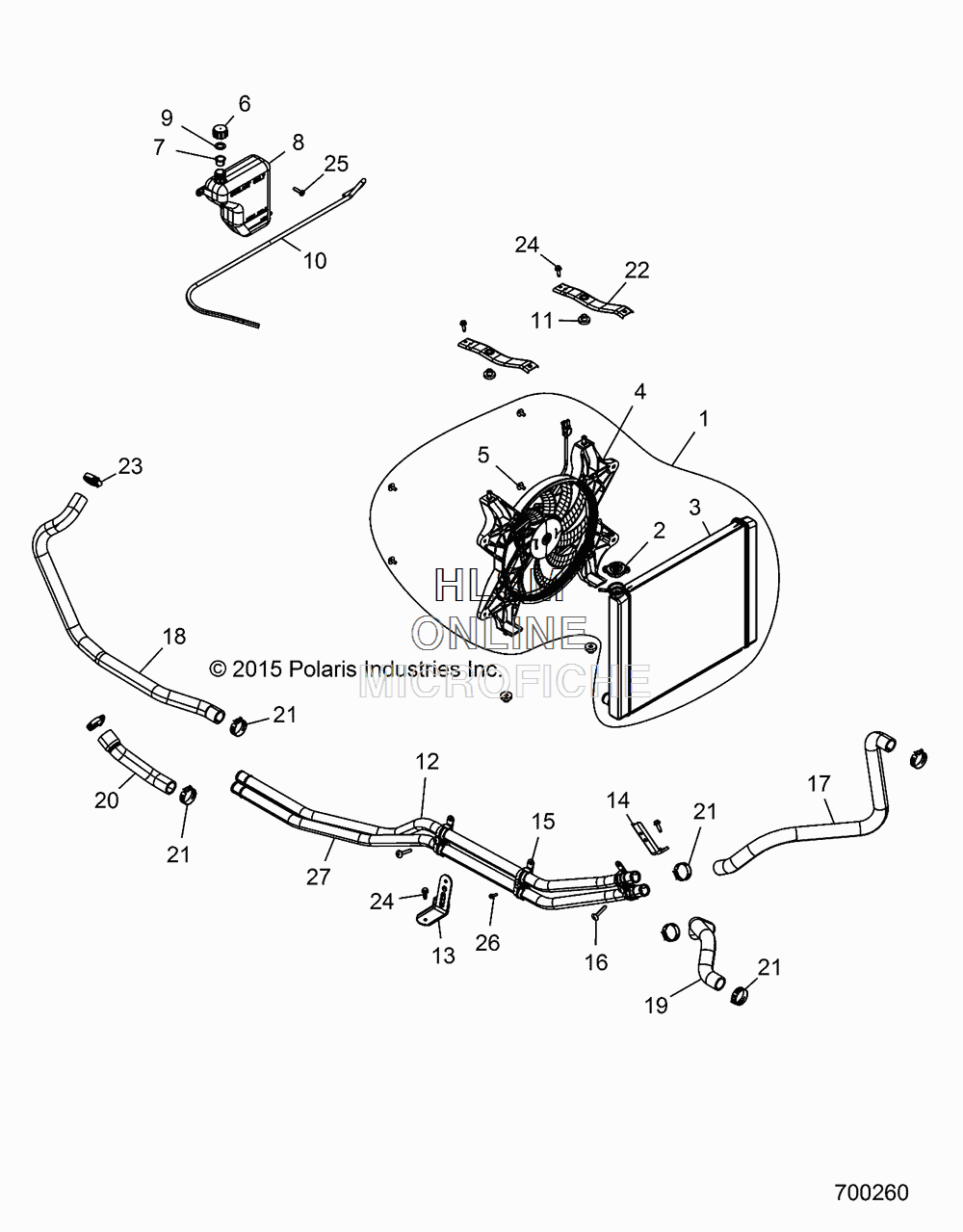

COOLING SYSTEM для Polaris RZR 900 50 INCH EU/TRACTOR [Z18VAS87CM] - 2018 года выпуска
-
№АртикулНазвание
-
11241270 ASM-RADIATOR (INCL. 2-5)ASM-RADIATOR (INCL. 2-5)
-
21240300 CAP-PRESSURECAP-PRESSURE
-
31241050 ASM-RADIATOR, COREASM-RADIATOR, CORE
-
42412447 FAN-ASSEMBLYFAN-ASSEMBLY
-
57518591 SCR-HXFL-M6X1.0X16 8.8 ZPBSCR-HXFL-M6X1.0X16 8.8 ZPB
-
65430743 CAP, OVER FLOW BOTTLE, DRILLEDCAP, OVER FLOW BOTTLE, DRILLED
-
75433774 PLUG, CAPPLUG, CAP
-
85439202 TANK, SURGETANK, SURGE
-
95810279 GASKET, OVERFLOW CAPGASKET, OVERFLOW CAP
-
108450003-1525 LINE, FUELLINE, FUEL
-
117052028 GROMMET, FLANGEDGROMMET, FLANGED
-
125141611 TUBE-COOLANT, 1"TUBE-COOLANT, 1"
-
135259433-329 BRACKET, COOLANT TUBE, BLACKBRACKET, COOLANT TUBE, BLACK
-
145260766-329 BRACKET, COOLANT TUBE, BLACKBRACKET, COOLANT TUBE, BLACK
-
155451221 BRACKET, COOLANT TUBEBRACKET, COOLANT TUBE
-
167519001 SCREWSCREW
-
175414528 HOSE, UPPER, RADIATORHOSE, UPPER, RADIATOR
-
185415451 HOSE, ENGINE OUTLET, REARHOSE, ENGINE OUTLET, REAR
-
195414532 HOSE, LOWER, RADIATOR, LONGHOSE, LOWER, RADIATOR, LONG
-
205414533 HOSE, ENGINE INLET, REARHOSE, ENGINE INLET, REAR
-
217080844 SPRINGBAND, CLAMPSPRINGBAND, CLAMP
-
225256879-329 BRACKET, UPPER RADIATOR MOUNT, BLACKBRACKET, UPPER RADIATOR MOUNT, BLACK
-
237081192 CLAMP, HOSECLAMP, HOSE
-
247518529 SCREWSCREW
-
257518158 SCREWSCREW
-
267512026 SCREWSCREW
-
275141612 TUBE-COOLANT, 1"TUBE-COOLANT, 1"
