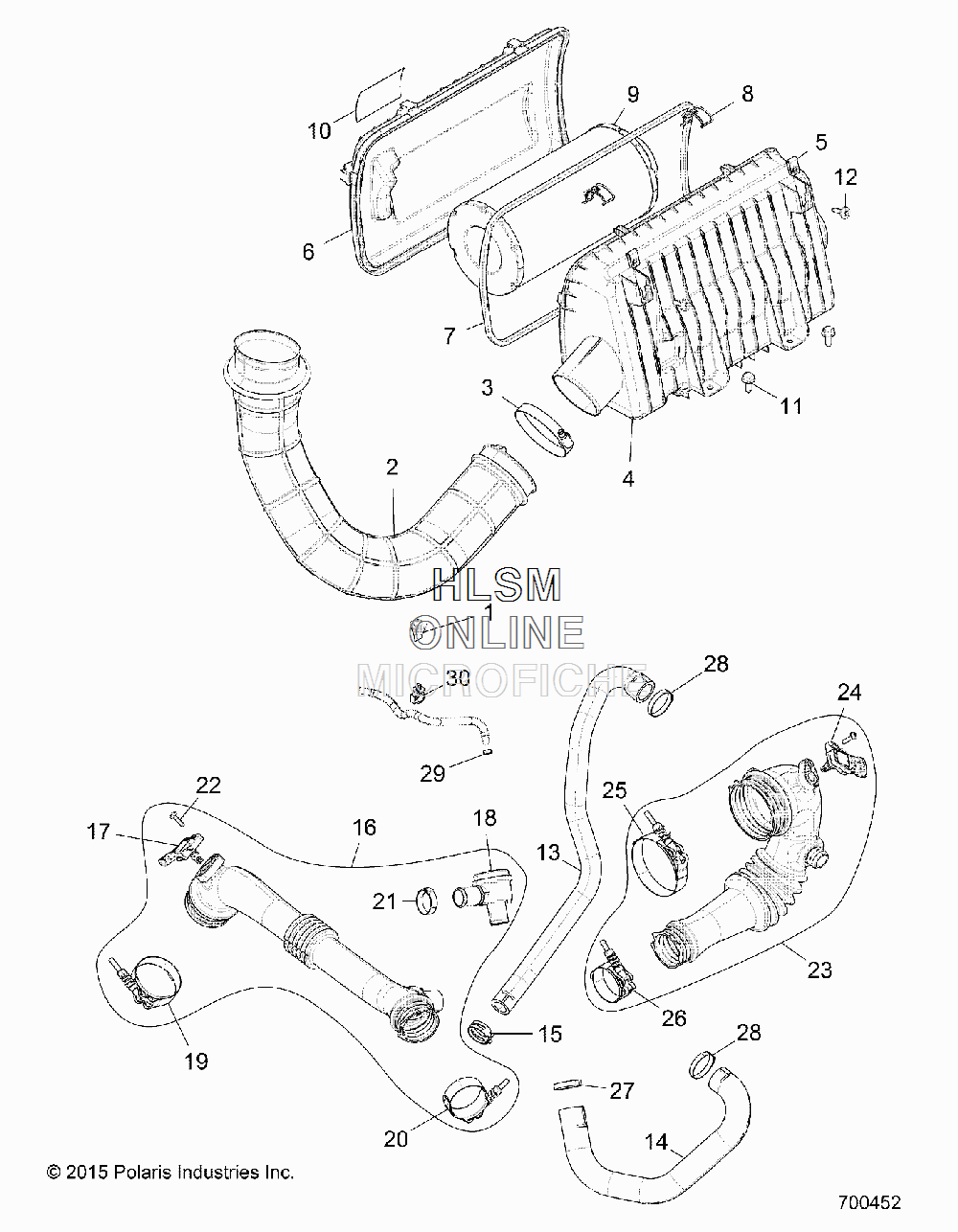

AIR INTAKE SYSTEM для Polaris RZR XP 4 TURBO INTL (INDY RED) [Z17VFE92NK] - 2017 года выпуска

№

Артикул

Название
1

5414472 PLUG-DRAIN

PLUG-DRAIN
2

5414691 HOSE-AIRBOX, IN

HOSE-AIRBOX, IN
3

7080907 CLAMP-HOSE, 3.75, SS

CLAMP-HOSE, 3.75, SS
4

1240747 ASM-AIRBOX HOUSING (INCL 5)

ASM-AIRBOX HOUSING (INCL 5)
5

7547674 NUT-M6-1.0, U-TYPE (2.5-3.8)

NUT-M6-1.0, U-TYPE (2.5-3.8)
6

1240748 ASM-AIRBOX COVER (INCL 7, 8)

ASM-AIRBOX COVER (INCL 7, 8)
7

5813929 SEAL-AIRBOX

SEAL-AIRBOX
8

7081872 CLIP-AIRBOX

CLIP-AIRBOX
9

1241084 ASM-FILTER

ASM-FILTER
10

7182652 DECAL-CAUT.AIR BOX

DECAL-CAUT.AIR BOX
11

7518555 BOLT-M8X1.25X20, HXFLG

BOLT-M8X1.25X20, HXFLG
12

7519650 SCR-TXTH-M6X1.0X25 RIE

SCR-TXTH-M6X1.0X25 RIE
13

5415437 HOSE-VENT, ENG

HOSE-VENT, ENG
14

5415474 HOSE-VENT, BOV

HOSE-VENT, BOV
15

7080842 SPRINGBAND-CLAMP 29/12, BLK

SPRINGBAND-CLAMP 29/12, BLK
16

1240931 ASM-DUCT, CHARGE AIR (INCL 17-21, 1 QTY OF 22)

ASM-DUCT, CHARGE AIR (INCL 17-21, 1 QTY OF 22)
17

2413095 SENSOR-TMAP, 3BAR

SENSOR-TMAP, 3BAR
18

3022784 VALVE-DUMP, TURBO

VALVE-DUMP, TURBO
19

7082091 CLAMP-HOSE T-BOLT, 66.3 DIA

CLAMP-HOSE T-BOLT, 66.3 DIA
20

7082092 CLAMP-HOSE T-BOLT, 56 DIA

CLAMP-HOSE T-BOLT, 56 DIA
21

7082095 CLAMP-OETIKER, 16704932-32

CLAMP-OETIKER, 16704932-32
22

7519952 SCR-PLASTITE, 5.0MMX20-PN-T25

SCR-PLASTITE, 5.0MMX20-PN-T25
23

1240933 ASM-DUCT, INTAKE AIR (INCL 24-26, 1 QYT OF 22)

ASM-DUCT, INTAKE AIR (INCL 24-26, 1 QYT OF 22)
24

2411528 SENSOR-TMAP DSS3-TF

SENSOR-TMAP DSS3-TF
25

7082093 CLAMP-HOSE T-BOLT, 87.3 DIA

CLAMP-HOSE T-BOLT, 87.3 DIA
26

7082094 CLAMP-HOSE T-BOLT, 52.3 DIA

CLAMP-HOSE T-BOLT, 52.3 DIA
27

7082107 CLAMP-OETIKER, 16704965-36.1

CLAMP-OETIKER, 16704965-36.1
28

7082108 CLAMP-OETIKER, 16702031-38.5

CLAMP-OETIKER, 16702031-38.5
29

7082109 CLAMP-OETIKER, 16700005-10.0

CLAMP-OETIKER, 16700005-10.0
30

7670116 CLIP-ROUTING, .472 B.D., HINGED

CLIP-ROUTING, .472 B.D., HINGED
