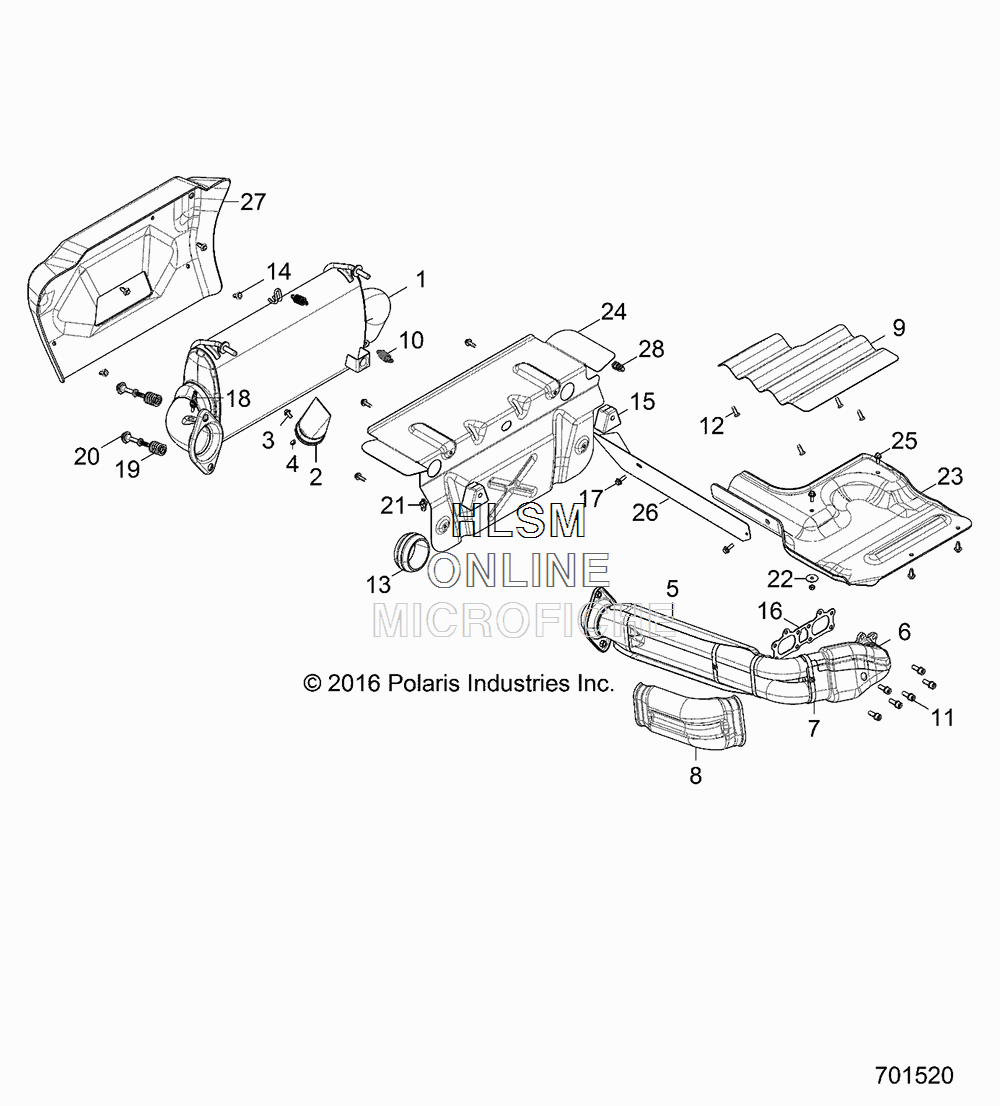

EXHAUST SYSTEM для Polaris RZR XP 4 1000 EPS (MATTE TITANIUM METALLIC) [Z17VFE99AM] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1262595 ASM-SILENCER (INCL. 2-4)
    ASM-SILENCER (INCL. 2-4)
  • 2
    1262390 ARRESTOR, SPARK
    ARRESTOR, SPARK
  • 3
    7517257 SCREW
    SCREW
  • 4
    7547120 NUT
    NUT
  • 5
    1262599 ASM., HEADPIPE (INCL. 6-8)
    ASM., HEADPIPE (INCL. 6-8)
  • 6
    7081156 CLAMP-HEAT SHIELD, EXHAUST
    CLAMP-HEAT SHIELD, EXHAUST
  • 7
    7081579 CLAMP-HEAT SHIELD, EXHAUST
    CLAMP-HEAT SHIELD, EXHAUST
  • 8
    5257570 SHIELD-HEAT, HEADPIPE, OUTSIDE
    SHIELD-HEAT, HEADPIPE, OUTSIDE
  • 9
    5262942 SHIELD-ACCESS PANEL
    SHIELD-ACCESS PANEL
  • 10
    7041789 SPRING, EXHAUST
    SPRING, EXHAUST
  • 11
    7518984 SCREW
    SCREW
  • 12
    7519045 SCREW
    SCREW
  • 13
    3610236 GASKET, DOUBLE, SPHERICAL, 2.5 IN
    GASKET, DOUBLE, SPHERICAL, 2.5 IN
  • 14
    7661855 RIVET
    RIVET
  • 15
    5450115 MOUNT, ISOLATOR
    MOUNT, ISOLATOR
  • 16
    3610184 GASKET, EXHAUST SEAL
    GASKET, EXHAUST SEAL
  • 17
    7518529 SCREW
    SCREW
  • 18
    4016021 SENSOR, OXYGEN
    SENSOR, OXYGEN
  • 19
    7044274 SPRING, SPHERICAL, EXHAUST
    SPRING, SPHERICAL, EXHAUST
  • 20
    7520079 STUD, SPHERICAL, EXHAUST
    STUD, SPHERICAL, EXHAUST
  • 21
    7081496 CLIP, ROUTING
    CLIP, ROUTING
  • 22
    7556329 WASHER-.281X1.00X.051
    WASHER-.281X1.00X.051
  • 23
    5814245 SHIELD-BOX, FRONT
    SHIELD-BOX, FRONT
  • 24
    5263026 SHIELD-REAR, AL
    SHIELD-REAR, AL
  • 25
    7518591 SCR-HXFL-M6X1.0X16 8.8 ZPB
    SCR-HXFL-M6X1.0X16 8.8 ZPB
  • 26
    5263028 SHIELD-FOIL, SIDE BOX, 0.05 IN, AL
    SHIELD-FOIL, SIDE BOX, 0.05 IN, AL
  • 27
    5814362 SHIELD-REAR BUMPER
    SHIELD-REAR BUMPER
  • 28
    7081808 STRAP-CABLE TIE W/EDGE CLIP
    STRAP-CABLE TIE W/EDGE CLIP
