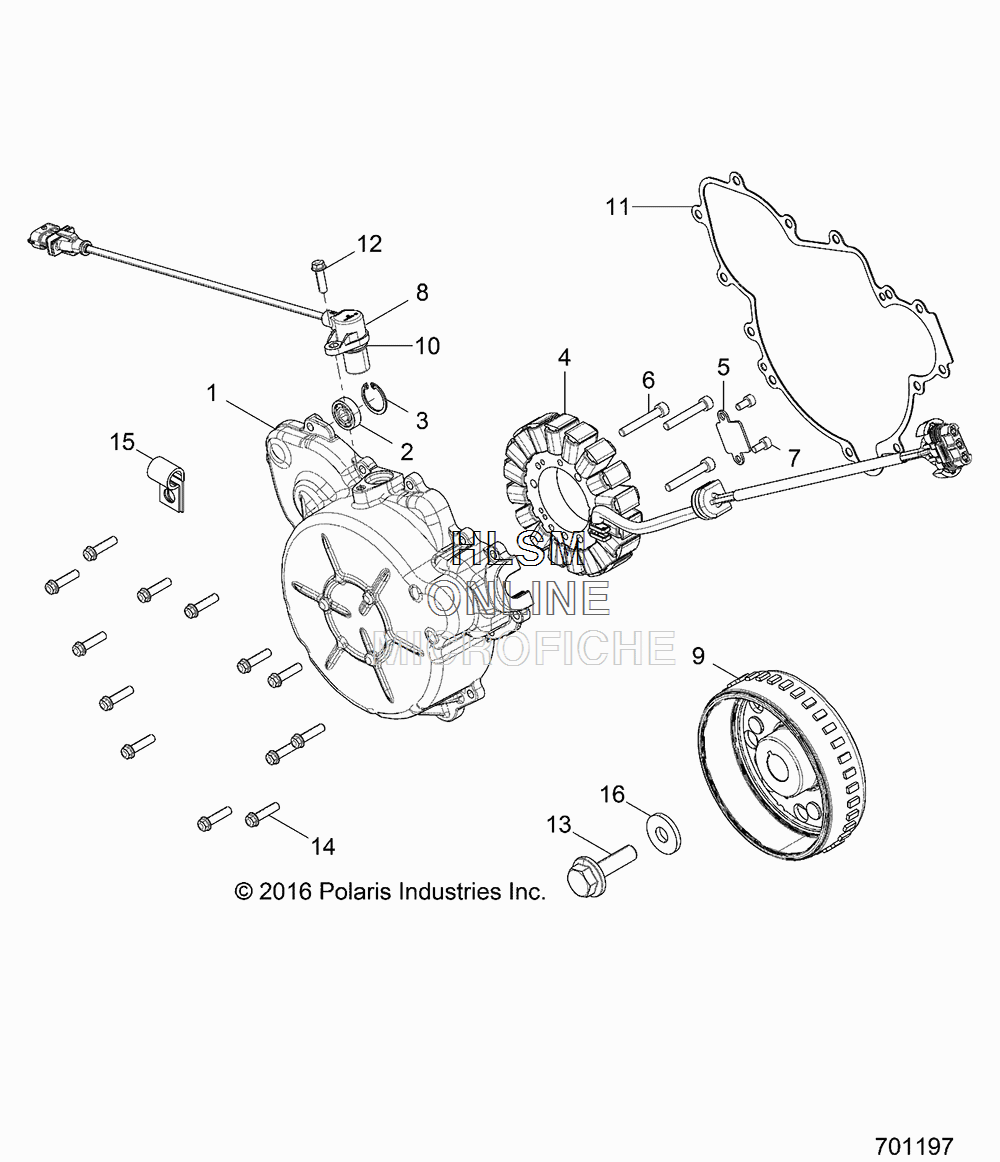

STATOR AND FLYWHEEL для Polaris RZR XP 1000 TRACTOR ZUG [Z17VDS99CM] - 2017 года выпуска
-
№АртикулНазвание
-
11204518 ASM., IGNITION COVER (INCL. 2, 3)ASM., IGNITION COVER (INCL. 2, 3)
-
23514717 BEARING, BALLBEARING, BALL
-
37710654 RING, SNAPRING, SNAP
-
44015340 STATORSTATOR
-
55255473 BRACKET, RETAINER, WIREBRACKET, RETAINER, WIRE
-
67510005 SCREWSCREW
-
77517847 SCREWSCREW
-
82411719 SENSOR, CRANK POSITION (INCL. 10)SENSOR, CRANK POSITION (INCL. 10)
-
94013969 FLYWHEELFLYWHEEL
-
115814160 GASKET, COVER, IGNITIONGASKET, COVER, IGNITION
-
127518576 SCREWSCREW
-
137520178 SCR-HXFL-M12X1.25X43 12.9SCR-HXFL-M12X1.25X43 12.9
-
147519297 SCREWSCREW
-
157080683 CLAMP, HOSECLAMP, HOSE
-
167556885 WSHR-32X12X4, HARDWSHR-32X12X4, HARD
