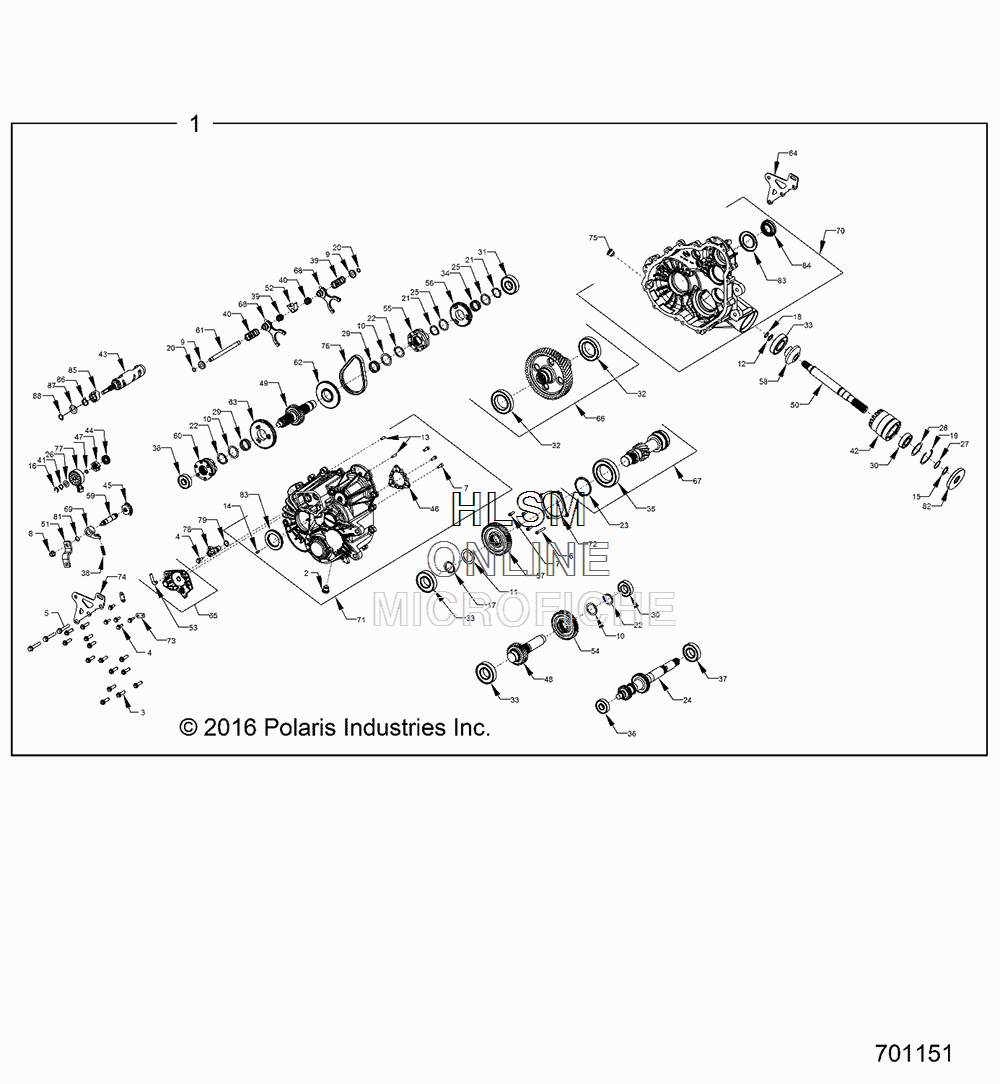

MAIN GEARCASE INTERNAL для Polaris RZR S 1000 EPS (SPECTRA ORANGE) [Z17VBE99AE] - 2017 года выпуска`
-
№АртикулНазвание
-
11333696 ASM., GEARCASE, COMPLETE (INCL ALL)ASM., GEARCASE, COMPLETE (INCL ALL)
-
23234756 PLUG M18 X 1.5, MAGNETICPLUG M18 X 1.5, MAGNETIC
-
33234898 SCREW, HEX FLANGE HEAD M8 X 1.25 X 30SCREW, HEX FLANGE HEAD M8 X 1.25 X 30
-
43235206 SCREW, HEX FLANGE HEAD M6 X 1 X 20SCREW, HEX FLANGE HEAD M6 X 1 X 20
-
53235207 SCREW HEX FLANGE M8 X 50SCREW HEX FLANGE M8 X 50
-
63235208 SCREW, SOCKET HEAD CAP, M6 X 1.0 X 40SCREW, SOCKET HEAD CAP, M6 X 1.0 X 40
-
73235332 SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18
-
83235210 NUT, LOCK HEX FLANGE NYLON M8 X 1.25NUT, LOCK HEX FLANGE NYLON M8 X 1.25
-
93234091 WASHERWASHER
-
103235211 WASHER 32.3 X 42 X 1.5WASHER 32.3 X 42 X 1.5
-
113235212 WASHER 35.6 X 50 X 1.5WASHER 35.6 X 50 X 1.5
-
123235213 WASHER 17.3 X 25 X 1.5WASHER 17.3 X 25 X 1.5
-
133234330 PIN, DOWEL 6 X 20PIN, DOWEL 6 X 20
-
147043746 PIN, SPRING SLOTTED 6 X 12PIN, SPRING SLOTTED 6 X 12
-
153233106 RING, RETAINING BASIC EXTERNAL .984RING, RETAINING BASIC EXTERNAL .984
-
163233834 RING SNAPRING SNAP
-
173233364 RING, RETAINING SHAFT, DIA. 1.375RING, RETAINING SHAFT, DIA. 1.375
-
183234318 RING, RETAINING EXTERNAL SHR-66RING, RETAINING EXTERNAL SHR-66
-
193234269 RING, RETAINING BASIC INTERNAL 2.047RING, RETAINING BASIC INTERNAL 2.047
-
203234090 RING, RETAINING BASIC EXTERNAL .428RING, RETAINING BASIC EXTERNAL .428
-
213234205 RING, RETAININGRING, RETAINING
-
223235214 RING, RETAINING BASIC, EXTERNAL MSR-32RING, RETAINING BASIC, EXTERNAL MSR-32
-
233235216 RING, RETAINING VSH-237RING, RETAINING VSH-237
-
243235763 SHAFT, INPUT 42T/20T/29TSHAFT, INPUT 42T/20T/29T
-
253233378 WASHER, THRUST 1.187 X 1.500 X .0600WASHER, THRUST 1.187 X 1.500 X .0600
-
263234642 WASHER, THRUST .446 X .88 X .025WASHER, THRUST .446 X .88 X .025
-
273234272 SHIM 1.180 OD X .995 IDSHIM 1.180 OD X .995 ID
-
283234273 SHIM 2.040 OD X 1.63 IDSHIM 2.040 OD X 1.63 ID
-
293233014 BEARING, NEEDLE CAGE ASSYBEARING, NEEDLE CAGE ASSY
-
303233019 BEARING, BALL 6205 C3 25X52X15BEARING, BALL 6205 C3 25X52X15
-
313233020 BEARING, BALL 6305 C3, 25 X 62 X 17BEARING, BALL 6305 C3, 25 X 62 X 17
-
323233268 BEARING, BALL 6010 C3 50X80X16BEARING, BALL 6010 C3 50X80X16
-
333234065 BEARING, BALL 6207 C3 35X72X17BEARING, BALL 6207 C3 35X72X17
-
343233384 BEARING, NEEDLE CAGE ASSYBEARING, NEEDLE CAGE ASSY
-
353235218 BEARING, BALL 6012 C3 60 X 95 X 18BEARING, BALL 6012 C3 60 X 95 X 18
-
363234652 BEARING, BALL 6303 17 X 47 X 14BEARING, BALL 6303 17 X 47 X 14
-
373235496 BEARING, BALL 6206RSH2 STD 30X62X16BEARING, BALL 6206RSH2 STD 30X62X16
-
383234578 SPRING, COMPRESSION .360 OD X 1.125SPRING, COMPRESSION .360 OD X 1.125
-
393234078 SPRING, COMPRESSION .92 O.D. X 2.000SPRING, COMPRESSION .92 O.D. X 2.000
-
403234089 SPRING, COMPRESSION .46 I.D. X .73SPRING, COMPRESSION .46 I.D. X .73
-
413235327 SPRING, WASHERSPRING, WASHER
-
423234278 TUBE, SNORKEL MACHTUBE, SNORKEL MACH
-
433235984 DRUM, SHIFT MACHDRUM, SHIFT MACH
-
443233839 GEAR, SECTOR 16TGEAR, SECTOR 16T
-
453233832 GEAR, SECTOR 31TGEAR, SECTOR 31T
-
463235456 PLATE, PARK 12-FACEPLATE, PARK 12-FACE
-
473235982 STAR, DETENTSTAR, DETENT
-
483235223 SHAFT, IDLER 29TSHAFT, IDLER 29T
-
493235224 SHAFT, REVERSE 29TSHAFT, REVERSE 29T
-
503235394 SHAFT, FRONT OUTPUTSHAFT, FRONT OUTPUT
-
513235581 BELLCRANK APEXBELLCRANK APEX
-
523234073 COLLAR, SHIFTCOLLAR, SHIFT
-
533234230 TUBE, VENT 90 -1/4 IN HOSETUBE, VENT 90 -1/4 IN HOSE
-
543235229 GEAR, 44T STAGE 2GEAR, 44T STAGE 2
-
553235233 ENGAGEMENT DOG, 6-FACEENGAGEMENT DOG, 6-FACE
-
563235234 GEAR, 53TGEAR, 53T
-
573235236 GEAR, 46T STAGE 3GEAR, 46T STAGE 3
-
583235237 GEAR, 13T SNORKELGEAR, 13T SNORKEL
-
593235238 SHAFT SHIFTSHAFT SHIFT
-
603235457 SHIFT DOG, PARKSHIFT DOG, PARK
-
613235542 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
623235755 SPROCKET 48T 6-FACE62SPROCKET 48T 6-FACE62
-
633235774 GEAR, LOW 64TGEAR, LOW 64T
-
643235399 WELDMENT REAR MOUNT BRACKET63WELDMENT REAR MOUNT BRACKET63
-
653235713 SUBASSEMBLY, SECTOR COVER (INCLUDES ALL HARDWARE)SUBASSEMBLY, SECTOR COVER (INCLUDES ALL HARDWARE)
-
663235335 SUBASSEMBLY OUTPUT (INCLUDES BEARINGS)SUBASSEMBLY OUTPUT (INCLUDES BEARINGS)
-
673235336 SUBASSEMBLY PINION (BEARING & RET. RING)SUBASSEMBLY PINION (BEARING & RET. RING)
-
683235920 SUBASSEMBLY SHIFT FORKSUBASSEMBLY SHIFT FORK
-
693235452 SUBASSEMBLY, PAWL DETENT, ROLLERSUBASSEMBLY, PAWL DETENT, ROLLER
-
703235491 SUBASSEMBLY, LEFT HAND CASESUBASSEMBLY, LEFT HAND CASE
-
713235995 SUBASSEMBLY, RIGHT HAND COVER (INCLUDES ALL HARDWARE)SUBASSEMBLY, RIGHT HAND COVER (INCLUDES ALL HARDWARE)
-
723235241 COVER, BEARING CENTER DRIVECOVER, BEARING CENTER DRIVE
-
733235350 BRACKET WIRE HARNESSBRACKET WIRE HARNESS
-
743235398 BRACKET, REAR MOUNTBRACKET, REAR MOUNT
-
753234755 PLUG M18 X 1.5PLUG M18 X 1.5
-
763234737 CHAIN, SILENT, TYPE 101 .25P X .40W X 58LCHAIN, SILENT, TYPE 101 .25P X .40W X 58L
-
777662299 SWITCH, ROTARY 2 PIN RESISTIVESWITCH, ROTARY 2 PIN RESISTIVE
-
784013908 SENSOR SPEEDSENSOR SPEED
-
793234302 O-RINGO-RING
-
813233828 O-RING, -014 VITONO-RING, -014 VITON
-
823234113 SEAL, TRIPLE LIP 25 X 80 X 10SEAL, TRIPLE LIP 25 X 80 X 10
-
833235052 SEAL, TRIPLE LIP, VITON 40 X 70 X 7SEAL, TRIPLE LIP, VITON 40 X 70 X 7
-
843235495 SEAL, TRIPLE LIP VITON HELIX 30 X 47SEAL, TRIPLE LIP VITON HELIX 30 X 47
-
853235983 PARK CAMPARK CAM
-
863235225 SPRING TORSIONSPRING TORSION
-
873235883 SPACERSPACER
-
883233045 RING RETAINERRING RETAINER
