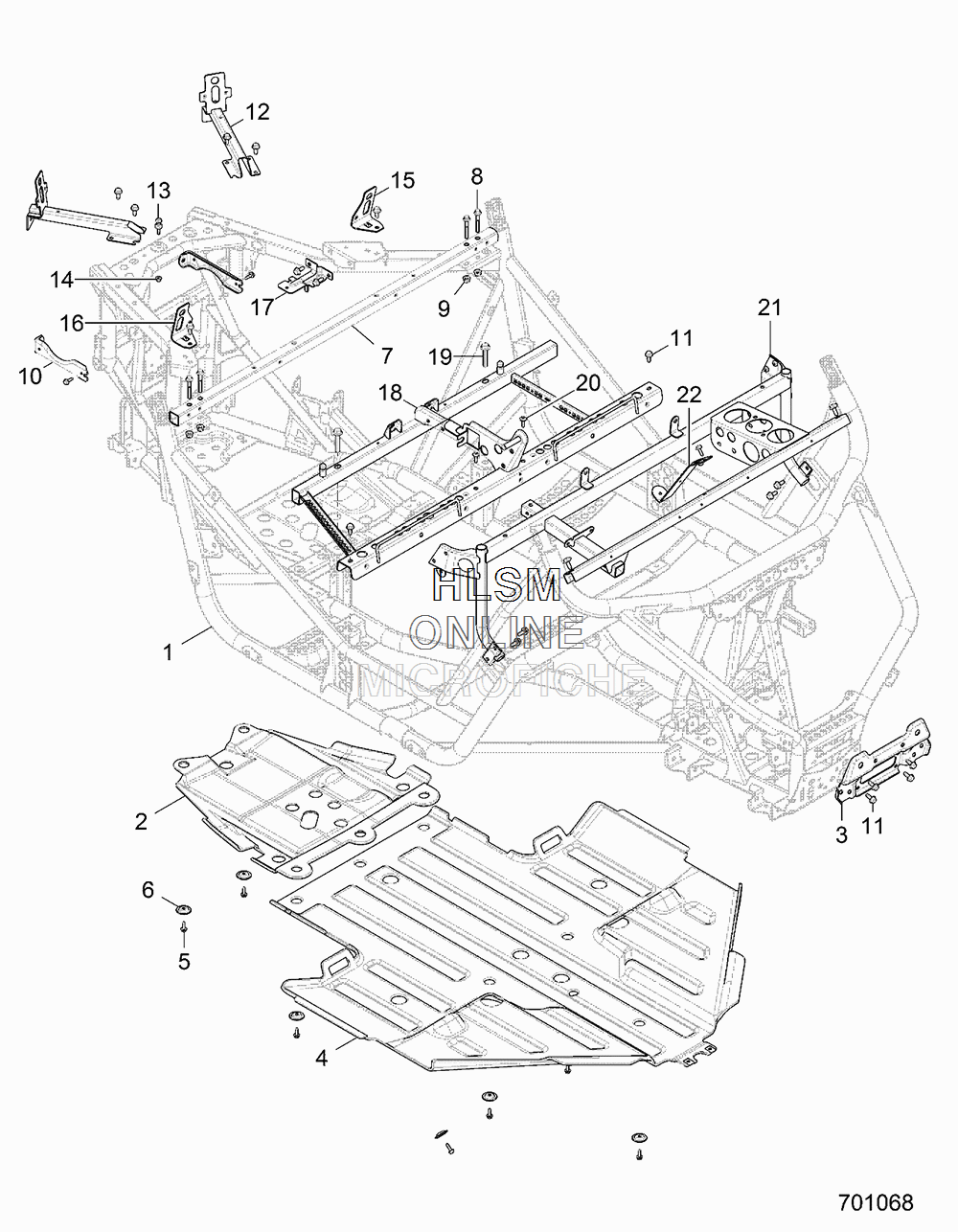

FRAME W/ SKID PLATE для Polaris RZR 900 (WHITE LIGHTNING) [Z17VAA87A2] - 2017 года выпуска`
-
№АртикулНазвание
-
11022386-458 FRAME, MAIN, MATTE BLACKFRAME, MAIN, MATTE BLACK
-
25450706-070 PLATE, SKID, REAR, BLACKPLATE, SKID, REAR, BLACK
-
35259449-458 BRKT-SUSP MNT, FRT, MATTE BLACKBRKT-SUSP MNT, FRT, MATTE BLACK
-
45451171-070 PLATE, SKID, BLACKPLATE, SKID, BLACK
-
57518529 SCREWSCREW
-
67556065 WASHER, SKID PLATEWASHER, SKID PLATE
-
71021506-329 ASM., TUBE, TOP FRAME, BLACKASM., TUBE, TOP FRAME, BLACK
-
87517281 SCREWSCREW
-
97547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
105259106 BRACKET, FACIABRACKET, FACIA
-
117518555 BOLTBOLT
-
121020506-458 MOUNT, BODY, MATTE BLACKMOUNT, BODY, MATTE BLACK
-
135139009 PLUNGER, BOX, LATCHPLUNGER, BOX, LATCH
-
147547339 NUTNUT
-
155259103-458 TIEDOWN, FRONT, LEFT HAND, MATTE BLACKTIEDOWN, FRONT, LEFT HAND, MATTE BLACK
-
165259104-458 TIEDOWN, FRONT, RIGHT HAND, MATTE BLACKTIEDOWN, FRONT, RIGHT HAND, MATTE BLACK
-
175259105-329 MOUNT, COIL, MATTE BLACKMOUNT, COIL, MATTE BLACK
-
181020571-329 WELD-SEAT BASE, BLACKWELD-SEAT BASE, BLACK
-
197518474 BOLTBOLT
-
207519650 SCREWSCREW
-
211020984-329 DASH, E-COAT, BLACKDASH, E-COAT, BLACK
-
225257304-329 BRACKET, DIN. MOUNT, BLACKBRACKET, DIN. MOUNT, BLACK
Все узлы модели:
- AIR INTAKE SYSTEM
- BALANCE SHAFT
- BATTERY
- CAB FRAME
- CLUTCH COVER AND DUCTING
- CLUTCH- PRIMARY
- CLUTCH- SECONDARY
- COOLING - WATER PUMP
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT AND PISTON
- CYLINDER W/ HEAD
- DASH AND GLOVEBOX
- DASH INSTRUMENTS AND CONTROLS
- DECALS
- DOORS KIT
- EXHAUST
- FLOOR AND ROCKER PANELS
- • FRAME W/ SKID PLATE
- FRONT BUMPER
- FRONT CALIPER
- FRONT CARRIER
- FRONT CONTROL ARMS
- FRONT GEARCASE INTERNALS
- FRONT GEARCASE MOUNTING
- FRONT HALF SHAFT
- FRONT PROP SHAFT
- FRONT SHOCK
- FRONT STABILIZER BAR
- FUEL TANK ASM.
- GEAR SELECTOR
- GRAB BAR- PASSENGER
- HEADLIGHTS- TAILLIGHTS AND BULBS
- HOOD AND FRONT FASCIA
- IGNITION SYSTEM
- MAIN GEARCASE INTERNAL
- MAIN GEARCASE MOUNTING
- MASTER CYLINDER AND BRAKE LINES
- MASTER CYLINDER AND PEDAL
- MOUNTING
- OIL DIPSTICK AND BREATHER
- OIL PUMP W/ OIL COOLER
- REAR CALIPER
- REAR CARRIER
- REAR CONTROL ARMS
- REAR HALF SHAFT
- REAR RACK AND FENDERS
- REAR SHOCK
- REAR STABILIZER BAR
- SEAT
- SEAT BELTS
- STARTING MOTOR W/ DRIVE
- STATOR AND FLYWHEEL W/ COVER
- STEERING ASM.
- THERMOSTAT AND BYPASS
- THROTTLE BODY
- THROTTLE PEDAL
- TOOL KIT AND OWNERS MANUALS
- VALVE COVER
- VALVES W/ CAMSHAFTS
- WHEELS - FRONT
- WHEELS - REAR
- WIRE HARNESSES
