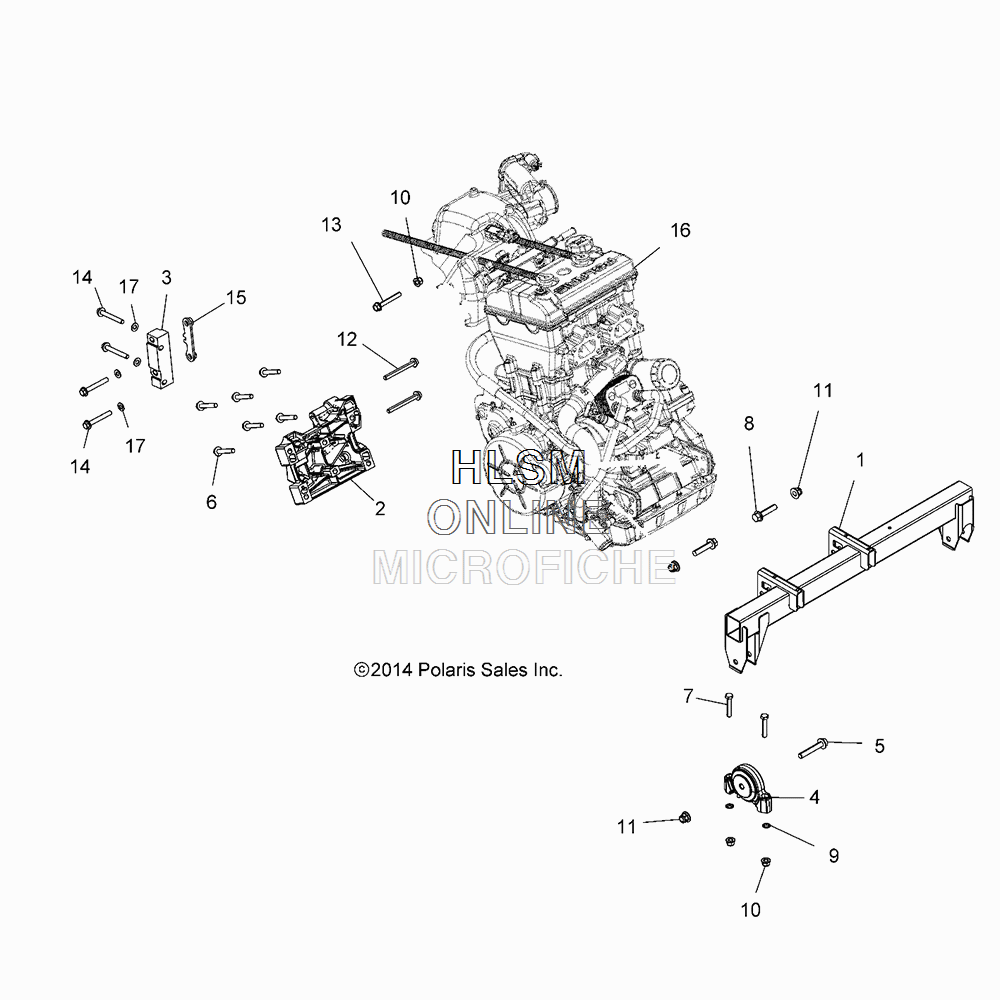

MOUNTING для Polaris RZR 900 TRACTOR 60 INCH (VELOCITY BLUE) [Z17VBS87CB] - 2017 года выпуска
-
№АртикулНазвание
-
11018333-329 MOUNT, ENGINE, BLACKMOUNT, ENGINE, BLACK
-
25137795 BRKT-TRANSJOINT, MACHBRKT-TRANSJOINT, MACH
-
35139904 BRKT-TRANSJOINT, MACHBRKT-TRANSJOINT, MACH
-
41332955 MOUNT, ISOLATOR, DRIVELINEMOUNT, ISOLATOR, DRIVELINE
-
57518563 BOLT-M10X1.25X60, HXFLG-OLIVE DBOLT-M10X1.25X60, HXFLG-OLIVE D
-
67520467 BOLT-M10X1.5X60MM8.8HEXDRILOCKBOLT-M10X1.5X60MM8.8HEXDRILOCK
-
77519097 SCREW-HH M8X1.25X45 8.8 ZODSCREW-HH M8X1.25X45 8.8 ZOD
-
87519332 SCREWSCREW
-
97547030 NUT, PALNUT, PAL
-
107547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
117547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
127519043 SCREW-HXFL-M10X1.25X95 10.9 ZODSCREW-HXFL-M10X1.25X95 10.9 ZOD
-
137519298 SCREW-HXFL-M8X1.25X60 8.8 ZODSCREW-HXFL-M8X1.25X60 8.8 ZOD
-
147519286 SCREW-HXFL-M10X1.25X75 10.9 ZODSCREW-HXFL-M10X1.25X75 10.9 ZOD
-
155259964 WELD-NUT, PLATEWELD-NUT, PLATE
-
162206656 K-LONG BLOCK 875K-LONG BLOCK 875
-
177556153 WASHERWASHER
