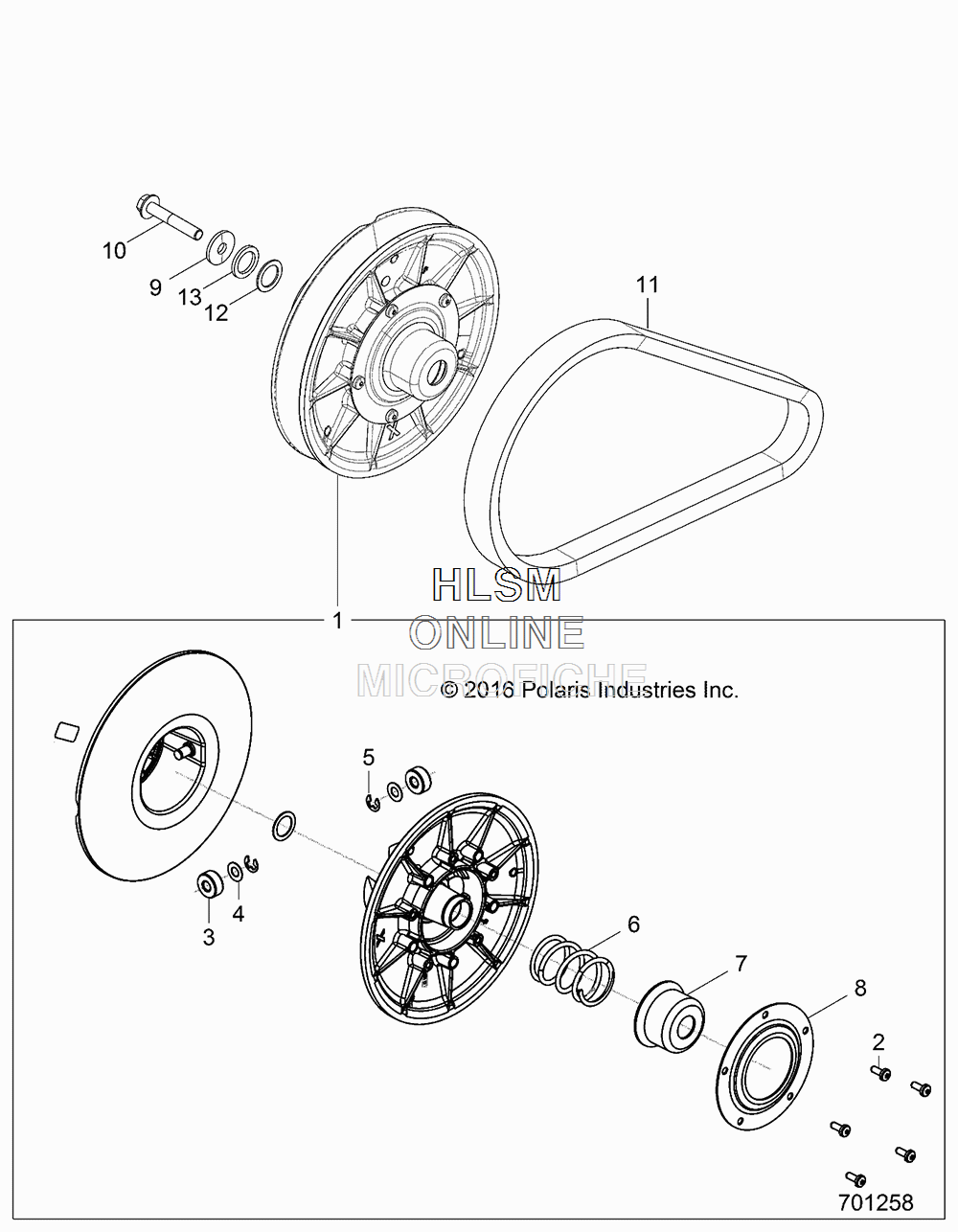

CLUTCH- SECONDARY для Polaris RZR 570 EU TRAIL [Z17VHA57FJ] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1323070 ASM., DRIVEN CLUTCH (INCL. 2-8)
    ASM., DRIVEN CLUTCH (INCL. 2-8)
  • 2
    7519735 SCREW
    SCREW
  • 3
    5439831 ROLLER, CLUTH
    ROLLER, CLUTH
  • 4
    7556226 WASHER, THRUST
    WASHER, THRUST
  • 5
    7710523 RING, RETAINING, EXTERNAL
    RING, RETAINING, EXTERNAL
  • 6
    7044015 SPRING, COMPRESSION, RED/WHITE
    SPRING, COMPRESSION, RED/WHITE
  • 7
    5256403 CUP, SPRING
    CUP, SPRING
  • 8
    5256404 PLATE, RETAINER
    PLATE, RETAINER
  • 9
    7556130 WASHER-.406X1.25X.125 BELLE-Y
    WASHER-.406X1.25X.125 BELLE-Y
  • 10
    7519306 SCR-HXFL-M10X1.25X60 10.9 ZOD
    SCR-HXFL-M10X1.25X60 10.9 ZOD
  • 11
    3211206 BELT-DRIVE
    BELT-DRIVE
  • 12
    7556483 WASHER-30MM ODX 21MM ID X 1.5
    WASHER-30MM ODX 21MM ID X 1.5
  • 13
    7556745 WSHR-THRUST, 1.189X0.838X0.12
    WSHR-THRUST, 1.189X0.838X0.12
