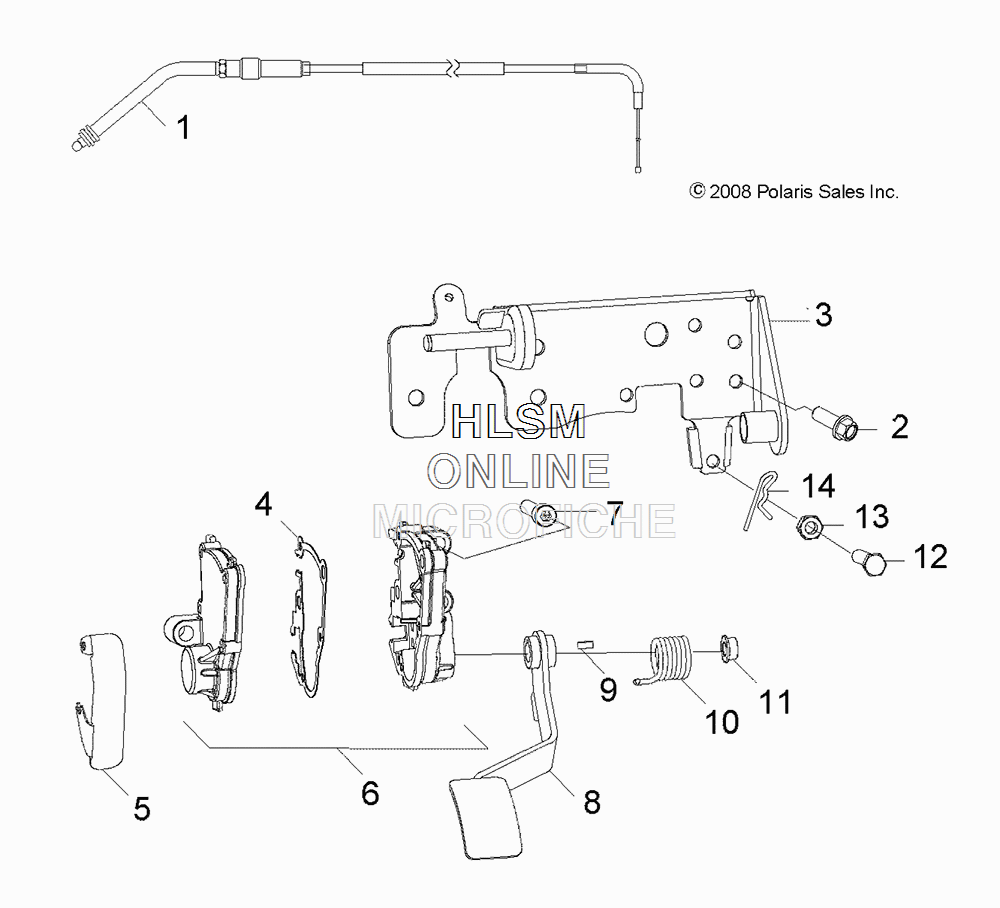

THROTTLE CONTROL ASSY W/ CABLE для Polaris RZR 170 EFI (BRIGHT WHITE) [Z17YAV17A2/N2] - 2017 года выпуска
-
№АртикулНазвание
-
10455082 CABLE, THROTTLECABLE, THROTTLE
-
20454603 BOLTBOLT
-
30454432 MOUNT, ACCELERATOR PEDAL, BLACKMOUNT, ACCELERATOR PEDAL, BLACK
-
40454621 GASKET, CONTROL, THROTTLEGASKET, CONTROL, THROTTLE
-
50454615 SHIELD, THROTTLE CONTROLSHIELD, THROTTLE CONTROL
-
60454852 ASM., HOUSING CONTROL, THROTTLE (INCL. 4)ASM., HOUSING CONTROL, THROTTLE (INCL. 4)
-
70454427 BOLTBOLT
-
80454428-067 PEDAL, ACCELERATOR, BLACKPEDAL, ACCELERATOR, BLACK
-
90454310 KEY, WOODRUFFKEY, WOODRUFF
-
100454309 SPRING, THROTTLESPRING, THROTTLE
-
110453867 NUTNUT
-
120454430 BOLTBOLT
-
130454431 NUTNUT
-
140450719 PIN, COTTERPIN, COTTER
