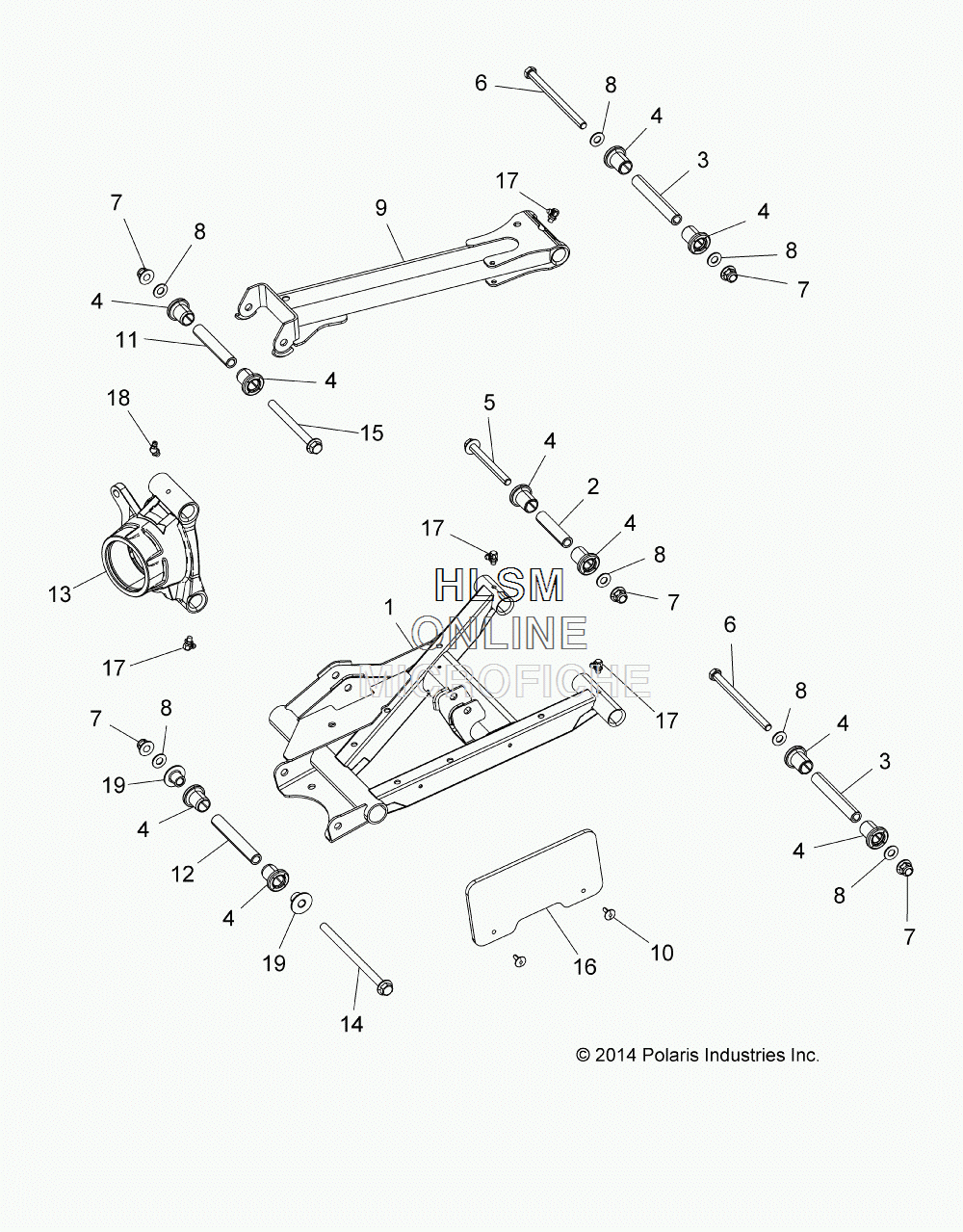

REAR CONTROL ARMS для Polaris RZR S 900 EPS HAVASU RED PEARL [Z15VBE87AT] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1018822-385 A-ARM, REAR, LOWER, LEFT HAND, 60, CLOUD SILVER
    A-ARM, REAR, LOWER, LEFT HAND, 60, CLOUD SILVER
  • 1
    1018823-385 A-ARM, REAR, LOWER, RIGHT HAND, 60, CLOUD SILVER
    A-ARM, REAR, LOWER, RIGHT HAND, 60, CLOUD SILVER
  • 2
    5138797 SHAFT, PIVOT
    SHAFT, PIVOT
  • 3
    5138798 SHAFT, PIVOT
    SHAFT, PIVOT
  • 4
    5439874 BUSHING
    BUSHING
  • 5
    7519043 SCREW, HEX FLANGE
    SCREW, HEX FLANGE
  • 6
    7519897 SCREW
    SCREW
  • 7
    7547333 NUT
    NUT
  • 8
    7556153 WASHER
    WASHER
  • 9
    1018820-385 A-ARM, REAR, UPPER, LEFT HAND, 60, CLOUD SILVER
    A-ARM, REAR, UPPER, LEFT HAND, 60, CLOUD SILVER
  • 9
    1018821-385 A-ARM, REAR, UPPER, RIGHT HAND, 60, CLOUD SILVER
    A-ARM, REAR, UPPER, RIGHT HAND, 60, CLOUD SILVER
  • 10
    7621467 RIVET
    RIVET
  • 11
    5138794 SHAFT, PIVOT
    SHAFT, PIVOT
  • 12
    5138798 SHAFT, PIVOT
    SHAFT, PIVOT
  • 13
    5139770 CARRIER, BEARING, WHEEL, LEFT HAND
    CARRIER, BEARING, WHEEL, LEFT HAND
  • 13
    5139771 CARRIER, BEARING, WHEEL, RIGHT HAND
    CARRIER, BEARING, WHEEL, RIGHT HAND
  • 14
    7519042 SCREW, HEX FLANGE
    SCREW, HEX FLANGE
  • 15
    7519365 SCREW, HEX FLANGE
    SCREW, HEX FLANGE
  • 16
    5451336-070 SHIELD, CV, REAR, BLACK
    SHIELD, CV, REAR, BLACK
  • 17
    7080510 FITTING, ZERK
    FITTING, ZERK
  • 18
    7080438 FIT, LUB
    FIT, LUB
  • 19
    5136102 BUSHING, PIVOT, WEAR
    BUSHING, PIVOT, WEAR
