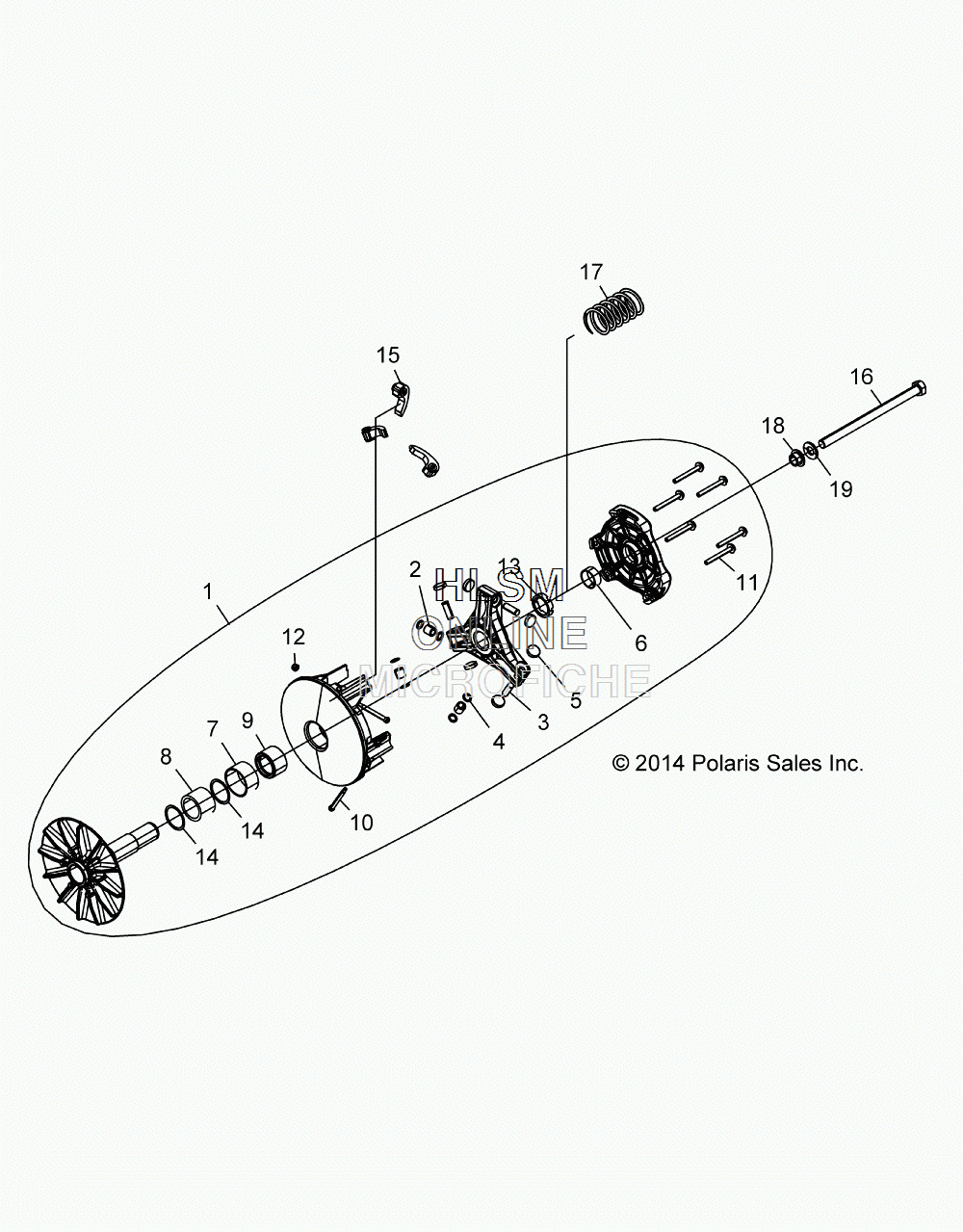

CLUTCH- PRIMARY для Polaris RZR S 900 EPS BLACK PEARL [Z15VBE87AK] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1323130 ASM., DRIVE CLUTCH, BASIC (INCL. 2-14)
    ASM., DRIVE CLUTCH, BASIC (INCL. 2-14)
  • 2
    1321622 ASM., ROLLER AND BUSHING
    ASM., ROLLER AND BUSHING
  • 3
    5020422 PIN, ROLLER
    PIN, ROLLER
  • 4
    5438247 WASHER, CLUTCH, SPIDER ROLLER
    WASHER, CLUTCH, SPIDER ROLLER
  • 5
    5450940 BUTTON, CLUTCH
    BUTTON, CLUTCH
  • 6
    3576510 COVER, BEARING
    COVER, BEARING
  • 7
    3514492 BEARING
    BEARING
  • 8
    3514609 BEARING, NEEDLE
    BEARING, NEEDLE
  • 9
    5632328 SPACER, CLUTCH
    SPACER, CLUTCH
  • 10
    7512266 BOLT, SHOULDER
    BOLT, SHOULDER
  • 11
    7518349 SCREW
    SCREW
  • 12
    7541906 NUT, FLEX LOC
    NUT, FLEX LOC
  • 13
    7547498 NUT, JAM
    NUT, JAM
  • 14
    7556335 WASHER, CLUTCH
    WASHER, CLUTCH
  • 15
    1322982 ASM., WEIGHT/BUSHING
    ASM., WEIGHT/BUSHING
  • 16
    7519208 SCREW
    SCREW
  • 17
    7044263 SPRING, CLUTCH
    SPRING, CLUTCH
  • 18
    5132441 WASHER, CLUTCH
    WASHER, CLUTCH
  • 19
    7556003 WASHER
    WASHER
