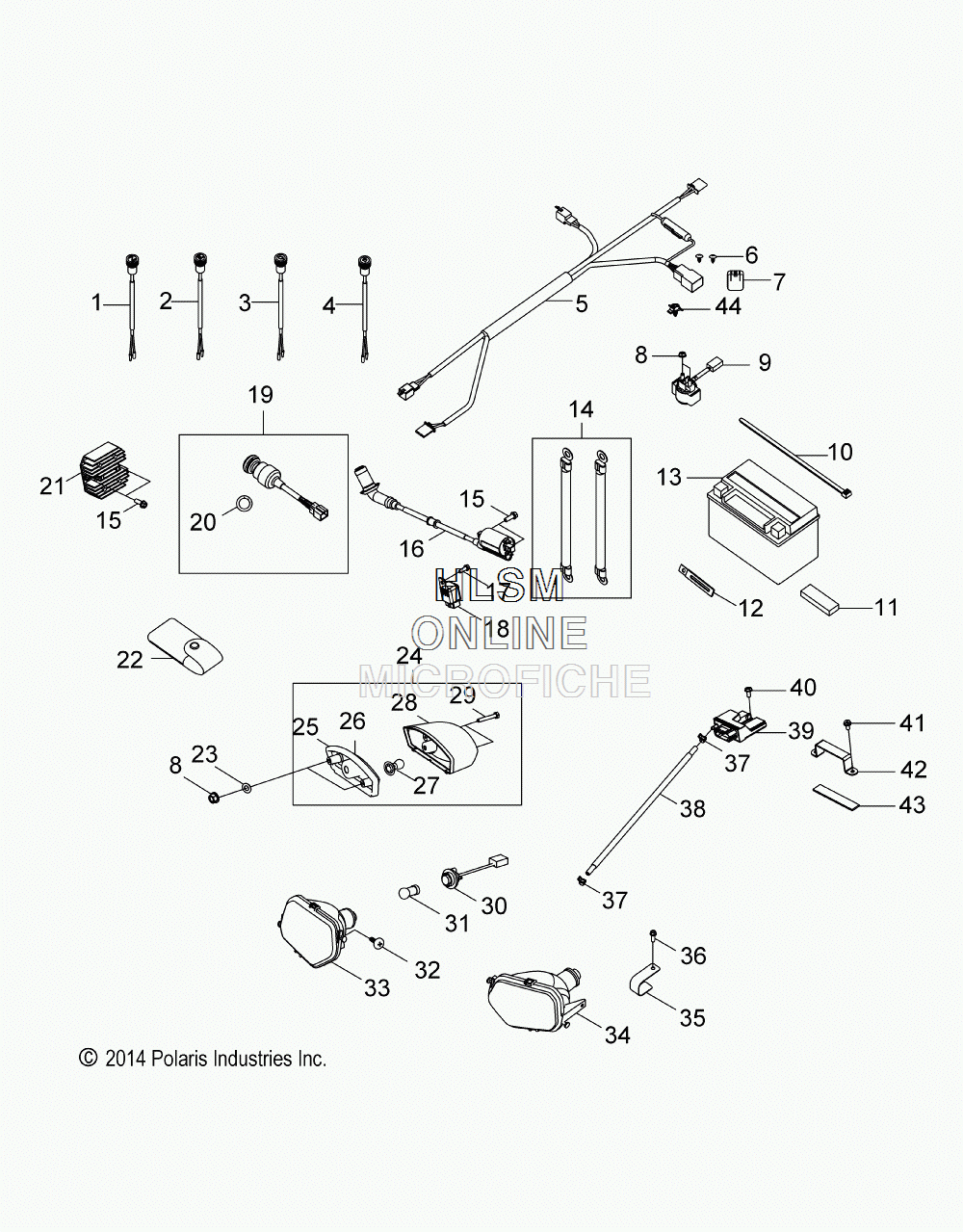

BATTERY W/BRACKET для Polaris RZR 170 EFI INDY RED [R15YAV17AA] - 2015 года выпуска
-
№АртикулНазвание
-
10454654 INDICATOR, NEUTRALINDICATOR, NEUTRAL
-
20454655 INDICATOR, REVERSEINDICATOR, REVERSE
-
30455023 INDICATOR, TROUBLEINDICATOR, TROUBLE
-
40455024 INDICATOR, LOW FUELINDICATOR, LOW FUEL
-
50455025 HARNESS, MAIN WIREHARNESS, MAIN WIRE
-
60455026 SCREWSCREW
-
70455027 COVER, DUSTCOVER, DUST
-
80450880 NUT, FLANGENUT, FLANGE
-
90455028 STARTER RELAYSTARTER RELAY
-
100450559 STRAPSTRAP
-
110452778 PAD, BATTERY, RUBBERPAD, BATTERY, RUBBER
-
120454939 STRAP, BATTERYSTRAP, BATTERY
-
134011434 BATTERYBATTERY
-
140454335 ASM., BATTERY CABLEASM., BATTERY CABLE
-
150454011 BOLT, HEX WASHERBOLT, HEX WASHER
-
160455029 ASM., IGNITION COILASM., IGNITION COIL
-
170450701 BOLTBOLT
-
180455030 RELAY, EFIRELAY, EFI
-
190455031 ASM., SWITCH, MAINASM., SWITCH, MAIN
-
200454806 DECAL, SWITCH, MAIN, IGNITIONDECAL, SWITCH, MAIN, IGNITION
-
210455032 RECITIFIER/REGULATORRECITIFIER/REGULATOR
-
220454337 POUCH, TOOLPOUCH, TOOL
-
230450041 WASHERWASHER
-
240454722 ASM., TAILLIGHTASM., TAILLIGHT
-
250451799 GASKETGASKET
-
260454714 SOCKET, TAILLIGHTSOCKET, TAILLIGHT
-
270452830 BULB, TAILLIGHTBULB, TAILLIGHT
-
280452995 LENS, TAILLIGHTLENS, TAILLIGHT
-
290451801 BOLTBOLT
-
300454867 SOCKET, HEADLIGHTSOCKET, HEADLIGHT
-
310454763 BULB, HEADLIGHTBULB, HEADLIGHT
-
320450667 BOLTBOLT
-
330454291 LENS SET, HEADLIGHT, RIGHT HANDLENS SET, HEADLIGHT, RIGHT HAND
-
340454290 LENS SET, HEADLIGHT, LEFT HANDLENS SET, HEADLIGHT, LEFT HAND
-
350454394 CLIP, RETAINER, CABLECLIP, RETAINER, CABLE
-
360450297 BOLTBOLT
-
370455033 CLAMPCLAMP
-
380455034 HOSEHOSE
-
390455035 ECUECU
-
400455036 BOLTBOLT
-
410454785 BOLTBOLT
-
420455019 BRACKET, ECUBRACKET, ECU
-
430455020 FOAMFOAM
-
440455079 GROUND, CABLE BATTERYGROUND, CABLE BATTERY
