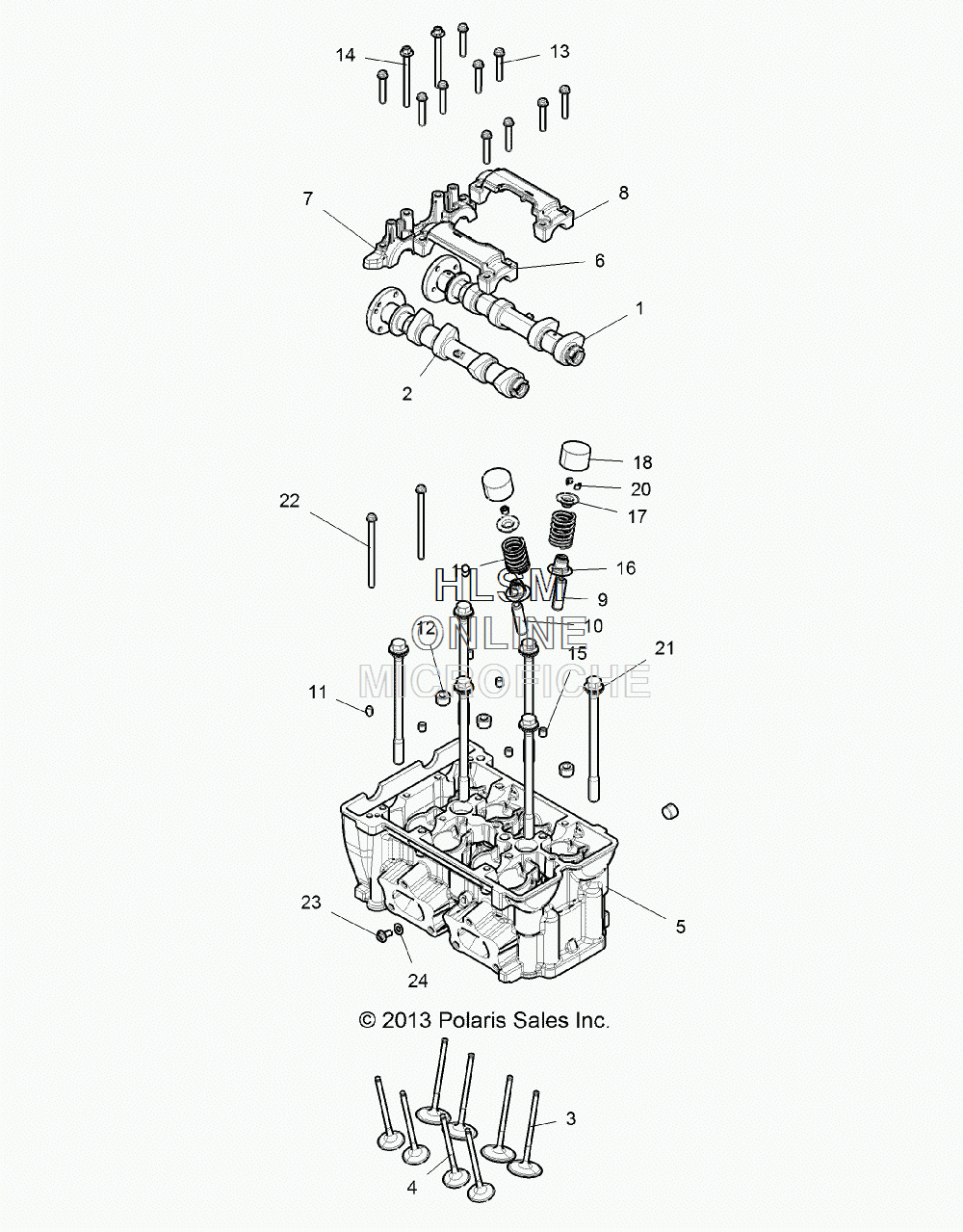

CYLINDER HEAD W/ VALVES для Polaris RZR XP 4 1000/PS WHITE LIGHTNING [Z146T1EAW] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    1204784 ASM., CAMSHAFT, INTAKE
    ASM., CAMSHAFT, INTAKE
  • 2
    1204786 ASM., CAMSHAFT, EXHAUST
    ASM., CAMSHAFT, EXHAUST
  • 3
    3022134 VALVE, INTAKE, STEEL
    VALVE, INTAKE, STEEL
  • 4
    3022415 VALVE, EXHAUST
    VALVE, EXHAUST
  • 5
    3022622 ASM., CYLINDER HEAD (INCL. 6-15)
    ASM., CYLINDER HEAD (INCL. 6-15)
  • 11
    5132835 PIN, DOWEL
    PIN, DOWEL
  • 12
    7052413 PLUG
    PLUG
  • 13
    7518578 SCREW
    SCREW
  • 14
    7519197 SCREW
    SCREW
  • 15
    7661977 DOWEL
    DOWEL
  • 16
    3610212 SEAT, W/SEAL, VALVE SPRING
    SEAT, W/SEAL, VALVE SPRING
  • 17
    5138435 RETAINER, VALVE
    RETAINER, VALVE
  • 18
    5138477 TAPPET, VALVE, GRADED
    TAPPET, VALVE, GRADED
  • 19
    7044024 SPRING, VALVE
    SPRING, VALVE
  • 20
    7081470 KEEPER, VALVE
    KEEPER, VALVE
  • 21
    7519123 BOLT, HEAD
    BOLT, HEAD
  • 22
    7519153 SCREW
    SCREW
  • 23
    7517679 SCREW
    SCREW
  • 24
    7555998 WASHER, FLAT
    WASHER, FLAT
