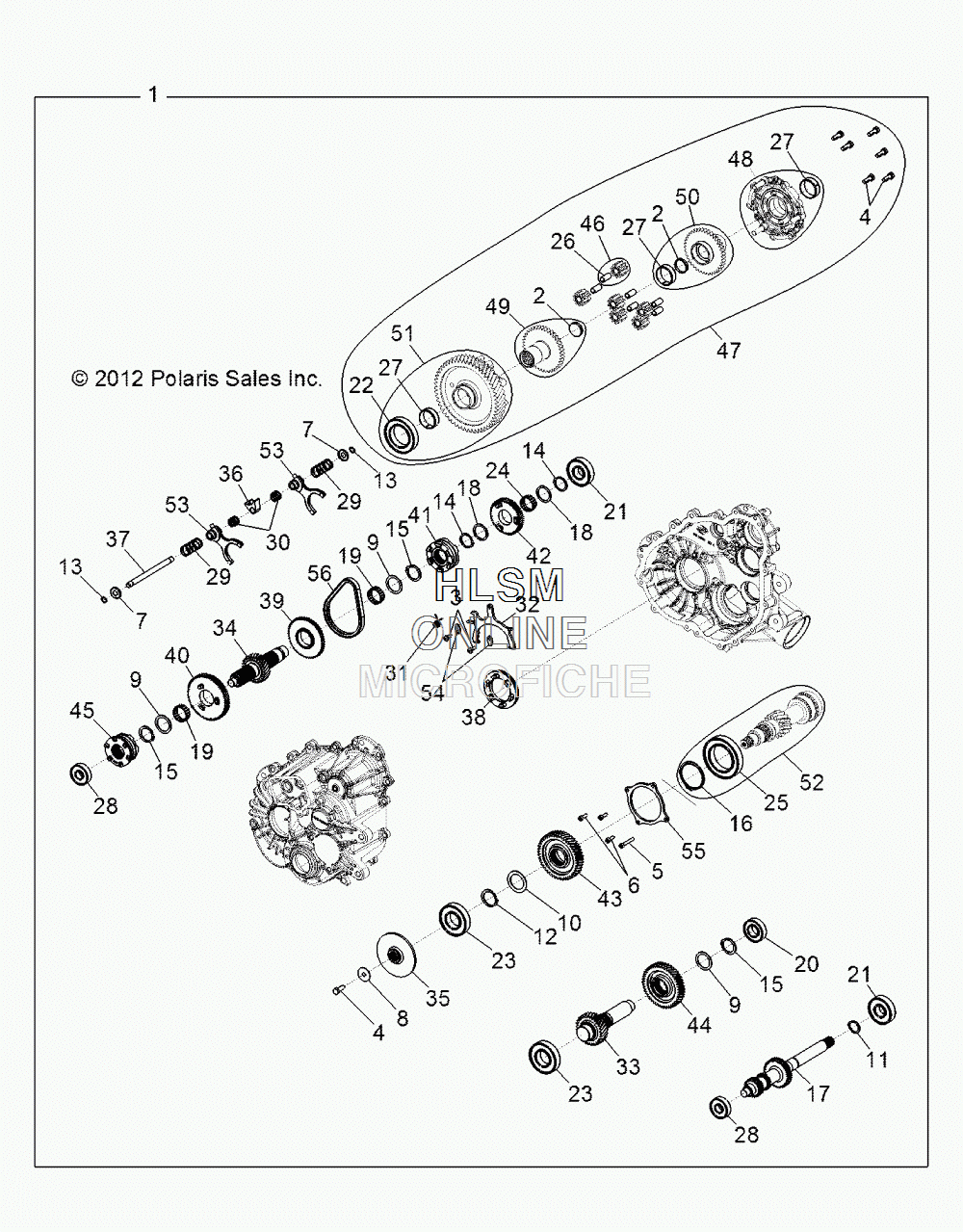

MAIN GEARCASE INTERNAL для Polaris RZR 570 EFI INTERNATIONAL INDY RED [R13VH57FX] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    1333133 ASM. GEARCASE (INCL. ALL)
    ASM. GEARCASE (INCL. ALL)
  • 2
    3534249 PLUG
    PLUG
  • 3
    3534329 SCREW, TORX PAN HD
    SCREW, TORX PAN HD
  • 4
    3235096 SCREW
    SCREW
  • 5
    3235208 SCREW, SOCKET HEAD, CAP
    SCREW, SOCKET HEAD, CAP
  • 6
    3235332 SCREW, SOCKET HEAD, CAP
    SCREW, SOCKET HEAD, CAP
  • 7
    3234091 WASHER, CUP
    WASHER, CUP
  • 8
    3234952 WASHER, FENDER
    WASHER, FENDER
  • 9
    3235211 WASHER
    WASHER
  • 10
    3235212 WASHER
    WASHER
  • 11
    3233106 RING, RETAINING BASIC, EXTERNAL
    RING, RETAINING BASIC, EXTERNAL
  • 12
    3233364 RING, RETAINING, SHAFT
    RING, RETAINING, SHAFT
  • 13
    3234090 RING, RETAINING BASIC, EXTERNAL
    RING, RETAINING BASIC, EXTERNAL
  • 14
    3234205 RING, RETAINING
    RING, RETAINING
  • 15
    3235214 RING, RETAINING BASIC, EXTERNAL
    RING, RETAINING BASIC, EXTERNAL
  • 16
    3235216 RING, RETAINING
    RING, RETAINING
  • 17
    3235429 SHAFT, INPUT
    SHAFT, INPUT
  • 18
    3233378 WASHER, THRUST
    WASHER, THRUST
  • 19
    3233014 BEARING, NEEDLE
    BEARING, NEEDLE
  • 20
    3233019 BEARING, BALL
    BEARING, BALL
  • 21
    3233020 BEARING, BALL
    BEARING, BALL
  • 22
    3233268 BEARING, BALL
    BEARING, BALL
  • 23
    3234065 BEARING, BALL
    BEARING, BALL
  • 24
    3233384 BEARING, NEEDLE
    BEARING, NEEDLE
  • 25
    3235218 BEARING, BALL
    BEARING, BALL
  • 26
    3234239 BEARING, PLAIN
    BEARING, PLAIN
  • 27
    3234241 BEARING, PLAIN
    BEARING, PLAIN
  • 28
    3234652 BEARING, BALL
    BEARING, BALL
  • 29
    3234078 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 30
    3234089 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 31
    3234276 SPRING, TORSION, RETURN
    SPRING, TORSION, RETURN
  • 32
    3235455 FORK, PIVOT SHIFT
    FORK, PIVOT SHIFT
  • 33
    3235223 SHAFT, IDLER 29T
    SHAFT, IDLER 29T
  • 34
    3235380 SHAFT, REVERSE 27T
    SHAFT, REVERSE 27T
  • 35
    3235372 DISC, BRAKE
    DISC, BRAKE
  • 36
    3234073 COLLAR, SHIFT
    COLLAR, SHIFT
  • 37
    3234079 RAIL, SHIFT SHAFT
    RAIL, SHIFT SHAFT
  • 38
    3234928 DOG, ENGAGEMENT
    DOG, ENGAGEMENT
  • 39
    3235231 SPROCKET, 48T 6-FACE
    SPROCKET, 48T 6-FACE
  • 40
    3235232 GEAR, LOW 67T
    GEAR, LOW 67T
  • 41
    3235233 DOG, ENGAGEMENT 6-FACE
    DOG, ENGAGEMENT 6-FACE
  • 42
    3235234 GEAR, 53T
    GEAR, 53T
  • 43
    3235236 GEAR, 46T STAGE 3
    GEAR, 46T STAGE 3
  • 44
    3235381 GEAR, 46T STAGE 2
    GEAR, 46T STAGE 2
  • 45
    3235457 SHIFT DOG, PARK
    SHIFT DOG, PARK
  • 46
    3234469 SUBASSEMBLY, PLANET GEAR (INCL. BUSHING)
    SUBASSEMBLY, PLANET GEAR (INCL. BUSHING)
  • 47
    3235373 DIFF, LOCKING
    DIFF, LOCKING
  • 48
    3235376 SUBASSY, DIFF COVER (INCL. PLUG, BUSHING)
    SUBASSY, DIFF COVER (INCL. PLUG, BUSHING)
  • 49
    3235374 SUBASSEMBLY, 39T SIDE GEAR (INCL. PLUG)
    SUBASSEMBLY, 39T SIDE GEAR (INCL. PLUG)
  • 50
    3235375 SUBASSY, 39T SIDE GEAR (INCL. PLUG, BUSHING)
    SUBASSY, 39T SIDE GEAR (INCL. PLUG, BUSHING)
  • 51
    3235378 SUBASSY, GEAR 53T (INCL. PINS, BUSHING, BEARING)
    SUBASSY, GEAR 53T (INCL. PINS, BUSHING, BEARING)
  • 52
    3235371 SUBASSY, 11T PINION (INCL. BEARING, RETAINING RING)
    SUBASSY, 11T PINION (INCL. BEARING, RETAINING RING)
  • 53
    3235454 SUBASSY, SHIFT FORK
    SUBASSY, SHIFT FORK
  • 54
    3234934 RETAINER, FORK
    RETAINER, FORK
  • 55
    3235241 COVER, BEARING, CENTER DRIVE
    COVER, BEARING, CENTER DRIVE
  • 56
    3234737 CHAIN, SILENT
    CHAIN, SILENT
