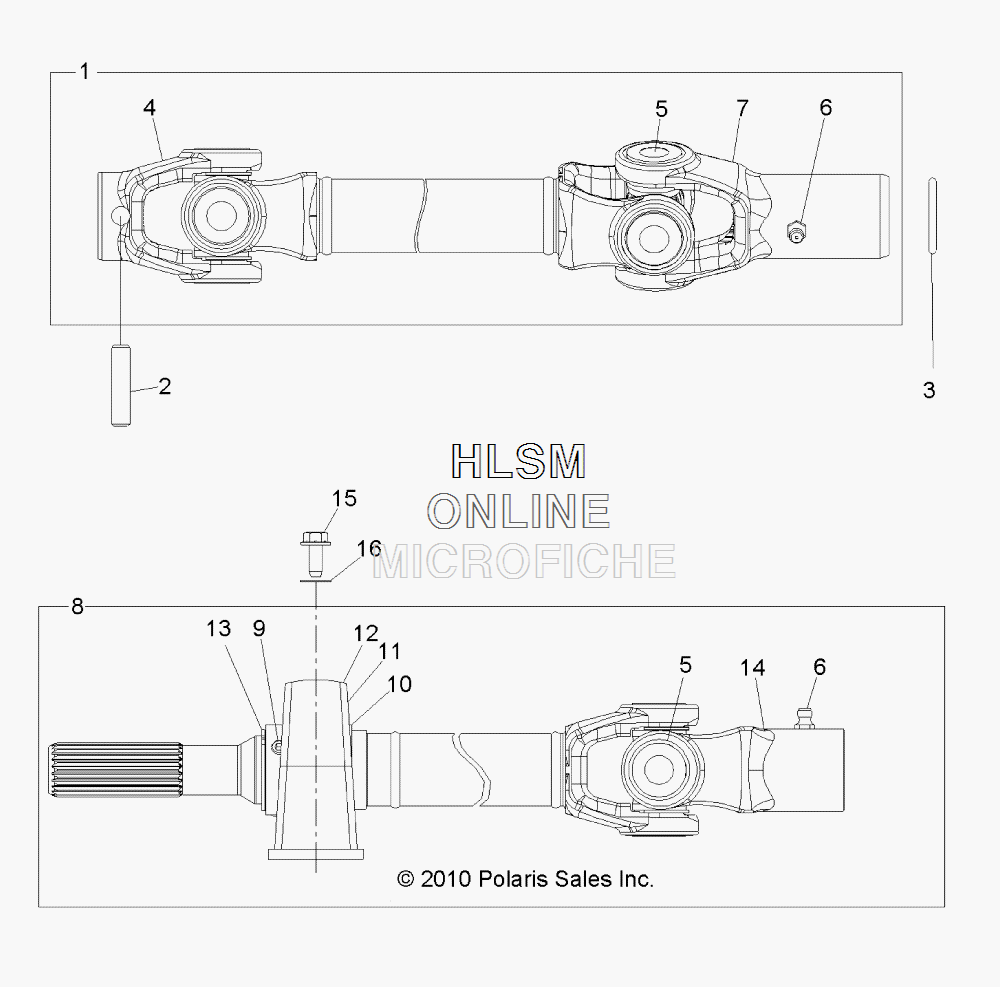

FRONT PROP SHAFT для Polaris RZR XP 900 INDY RED [R11JH87AD] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    1332824 ASM., PROP SHAFT, FRONT (INCL. 4-7)
    ASM., PROP SHAFT, FRONT (INCL. 4-7)
  • 2
    7661913 PIN, SPRING
    PIN, SPRING
  • 3
    5411965 O-RING
    O-RING
  • 4
    3260133 YOKE, FRONT GEARCASE
    YOKE, FRONT GEARCASE
  • 5
    2202015 KIT, CROSS AND BEARING
    KIT, CROSS AND BEARING
  • 6
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 7
    3235205 YOKE, SKIP TOOTH, LONG
    YOKE, SKIP TOOTH, LONG
  • 8
    1332893 ASM., PROP SHFT, REAR (INCL. 5,6,9-14)
    ASM., PROP SHFT, REAR (INCL. 5,6,9-14)
  • 9
    7519277 SCREW SET
    SCREW SET
  • 10
    3514703 BEARING, FRONT
    BEARING, FRONT
  • 11
    3235256 RING, RUBBER
    RING, RUBBER
  • 12
    2878336 KIT, BRACKET, PROP SHAFT
    KIT, BRACKET, PROP SHAFT
  • 13
    7710662 RING, EXTERNAL, RETAINING
    RING, EXTERNAL, RETAINING
  • 14
    1590495 YOKE, SKIP TOOTH W/FITTING
    YOKE, SKIP TOOTH W/FITTING
  • 15
    7518514 BOLT
    BOLT
  • 16
    7558403 WASHER
    WASHER
