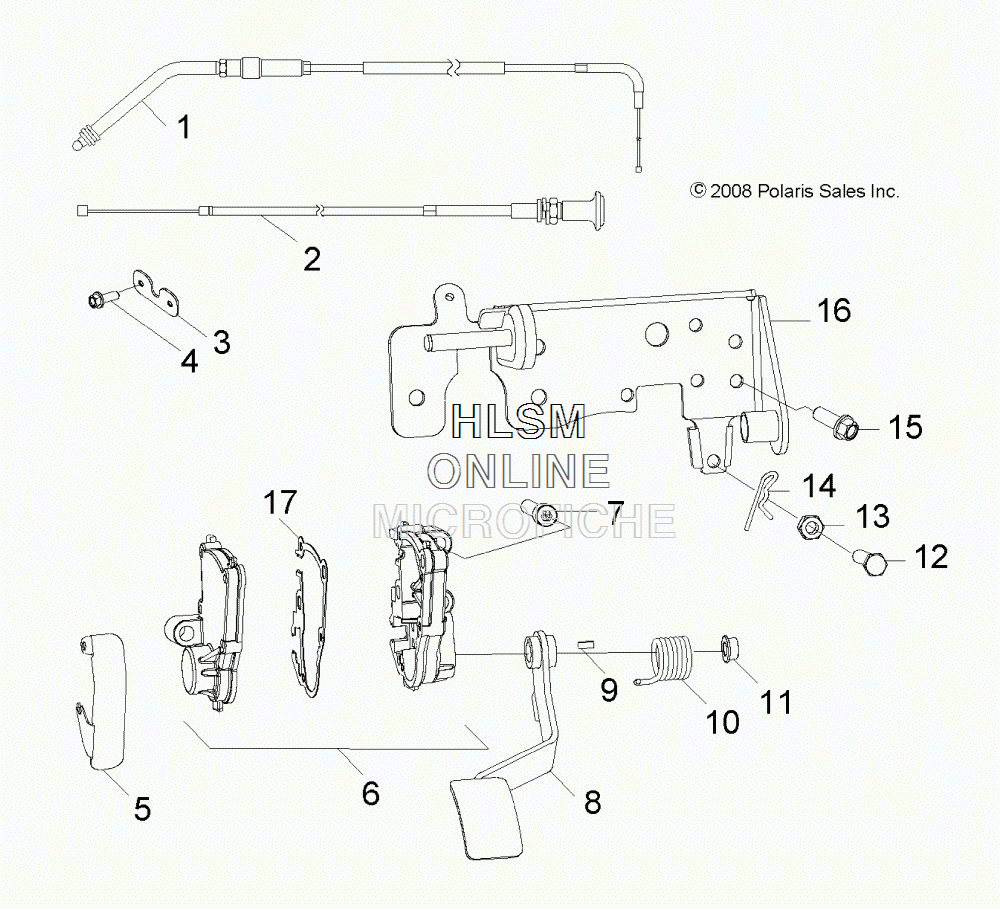

THROTTLE PEDAL для Polaris RZR 170 [R11VA17AA] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    0454311 CABLE, THROTTLE
    CABLE, THROTTLE
  • 2
    0454876 CABLE, CHOKE
    CABLE, CHOKE
  • 3
    0454426 BRACKET, CHOKE
    BRACKET, CHOKE
  • 4
    0450297 BOLT
    BOLT
  • 5
    0454615 SHIELD, THROTTLE CONTROL
    SHIELD, THROTTLE CONTROL
  • 6
    0454852 ASM., HOUSING CONTROL, THROTTLE
    ASM., HOUSING CONTROL, THROTTLE
  • 7
    0454427 BOLT
    BOLT
  • 8
    0454428-067 PEDAL, ACCELERATOR, BLACK
    PEDAL, ACCELERATOR, BLACK
  • 9
    0454310 KEY, WOODRUFF
    KEY, WOODRUFF
  • 10
    0454309 SPRING, THROTTLE
    SPRING, THROTTLE
  • 11
    0453867 NUT
    NUT
  • 12
    0454430 BOLT
    BOLT
  • 13
    0454431 NUT
    NUT
  • 14
    0450719 PIN, COTTER
    PIN, COTTER
  • 15
    0454603 BOLT
    BOLT
  • 16
    0454432 MOUNT, ACCELERATOR PEDAL, BLACK
    MOUNT, ACCELERATOR PEDAL, BLACK
  • 17
    0454621 GASKET, CONTROL, THROTTLE
    GASKET, CONTROL, THROTTLE
