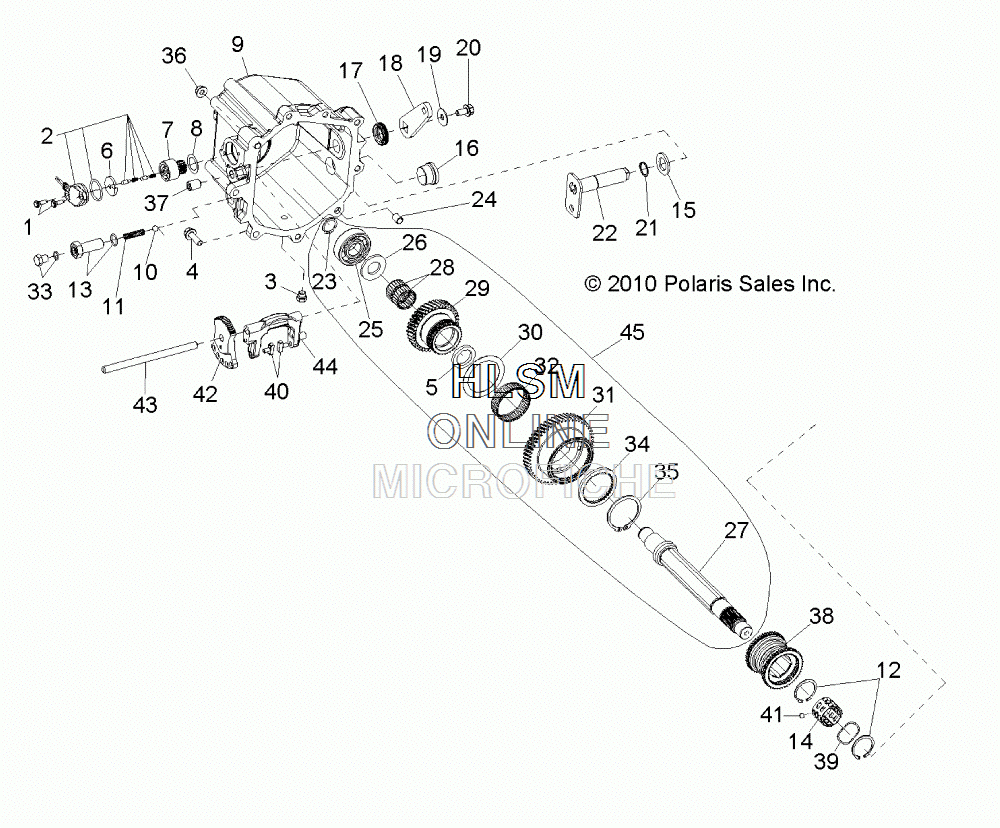

MAIN GEARCASE INTERNAL 2 (BUILT 5/17/10 AND AFTER) для Polaris RZR 4 800 EFI BRIGHT WHITE [R10XH76AA] - 2010 года выпуска`
-
№АртикулНазвание
-
-3235269 ASM., TRANSMISSION, SUB (INCL. ALL)ASM., TRANSMISSION, SUB (INCL. ALL)
-
13234525 SCREW, FLANGESCREW, FLANGE
-
23234871 KIT, SENSOR (INCL. 3-5)KIT, SENSOR (INCL. 3-5)
-
35133731 PLUG, DRAINPLUG, DRAIN
-
47518172 SCREW, FLANGESCREW, FLANGE
-
63234523 SPACERSPACER
-
73234522 SENSOR, DRUM GEARSENSOR, DRUM GEAR
-
83234521 WASHERWASHER
-
93234890 ASM., COVER, SHIFT HOUSING (INCL. 17)ASM., COVER, SHIFT HOUSING (INCL. 17)
-
103234520 BALLBALL
-
113234870 SPRING, COMPRESSIONSPRING, COMPRESSION
-
123235074 RING, RETAININGRING, RETAINING
-
133234481 ASM., SLEEVE, DETENTASM., SLEEVE, DETENT
-
143235075 CAGE, BALL BEARINGCAGE, BALL BEARING
-
153234899 WASHERWASHER
-
165133736 PLUG, FILL, W/O-RINGPLUG, FILL, W/O-RING
-
173234493 SEAL, OILSEAL, OIL
-
183234492 LEVER, SHIFT CABLELEVER, SHIFT CABLE
-
193234491 WASHERWASHER
-
203234490 SCREWSCREW
-
213234494 RING, RETAININGRING, RETAINING
-
223234900 ASM., SHIFTERASM., SHIFTER
-
233234552 RING, RETAININGRING, RETAINING
-
243234503 BUSHING, DOWELBUSHING, DOWEL
-
253235277 BEARING, BALLBEARING, BALL
-
263235276 WASHER, THRUSTWASHER, THRUST
-
273235302 SHAFT, CLUTCH, INTERMEDIATESHAFT, CLUTCH, INTERMEDIATE
-
283235069 BEARING, NEEDLE ROLLERBEARING, NEEDLE ROLLER
-
293235085 GEAR, CLUTCHGEAR, CLUTCH
-
303234887 WASHER, THRUSTWASHER, THRUST
-
313234535 GEAR, CLUTCH, 53TGEAR, CLUTCH, 53T
-
323234536 BEARING, NEEDLEBEARING, NEEDLE
-
333234869 ASM., SCREW (INCL. 14)ASM., SCREW (INCL. 14)
-
343234874 PLATE, RETAININGPLATE, RETAINING
-
353234879 RING, RETAININGRING, RETAINING
-
363234500 NUT, FLANGEDNUT, FLANGED
-
373234484 SET, SCREWSET, SCREW
-
383235072 COLLAR, SHIFTCOLLAR, SHIFT
-
393235076 SPRING, WAVESPRING, WAVE
-
403234868 BLADE, CLUTCH YOKEBLADE, CLUTCH YOKE
-
413235077 BALLBALL
-
423235067 PLATE, GEAR DETENTPLATE, GEAR DETENT
-
433234914 PIN, PIVOTPIN, PIVOT
-
443235066 YOKE, CLUTCHYOKE, CLUTCH
-
453235271 KIT, CLUTCH SHAFT ASM. (SEE NOTE)KIT, CLUTCH SHAFT ASM. (SEE NOTE)
