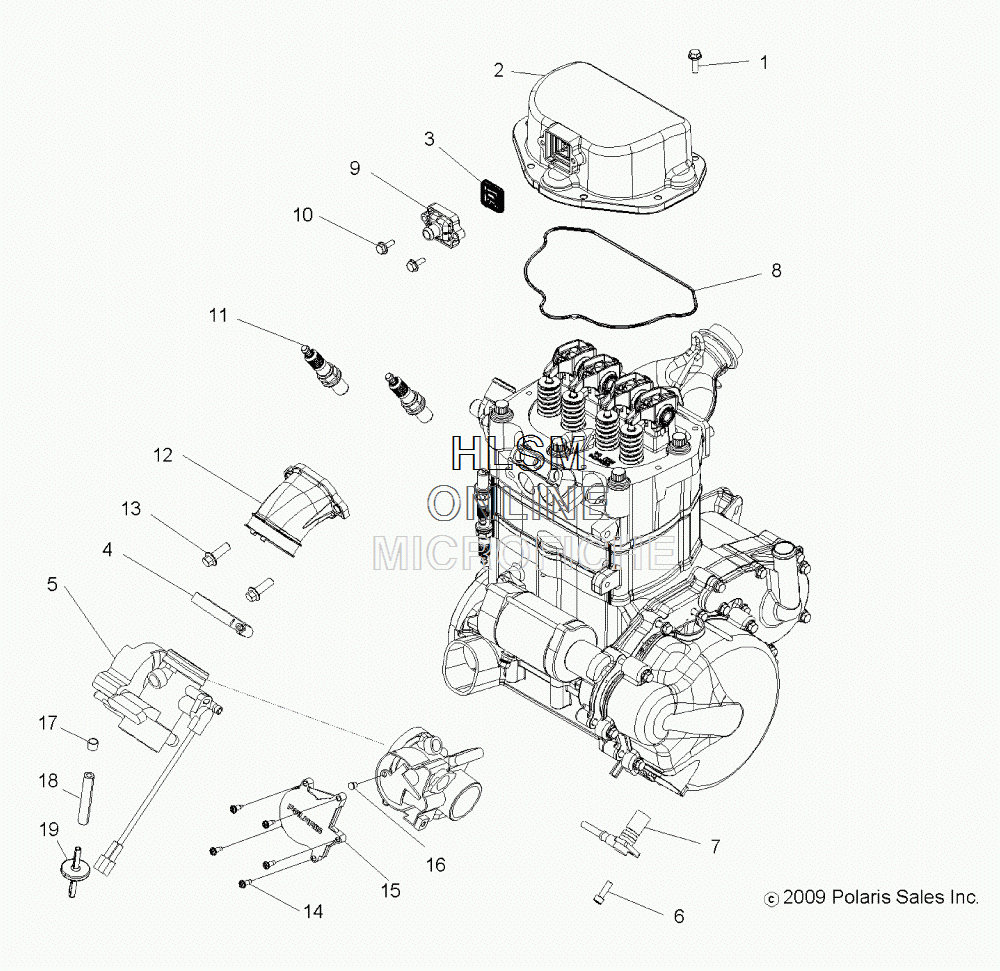

THROTTLE BODY AND VALVE COVER для Polaris RZR S 800 EFI SUNSET RED INT [R09VH76FX] - 2009 года выпуска`
-
№АртикулНазвание
-
17516822 SCREWSCREW
-
25136099 COVER, VALVECOVER, VALVE
-
33021352 ASM., REED W/GASKETASM., REED W/GASKET
-
47081193 CLAMP, HOSECLAMP, HOSE
-
51202836 ASM., THROTTLE BODY (BUILT 9/01/08 AND BEFORE) (INCL. THROTTLE POSITION SENSOR, O-RINGASM., THROTTLE BODY (BUILT 9/01/08 AND BEFORE) (INCL. THROTTLE POSITION SENSOR, O-RING
-
51203944 ASM., THROTTLE BODY (BUILT 9/02/08 AND AFTER) (INCL. THROTTLE POSITION SENSOR, O-RING)ASM., THROTTLE BODY (BUILT 9/02/08 AND AFTER) (INCL. THROTTLE POSITION SENSOR, O-RING)
-
52410342 SENSOR, THROTTLE POSITION (MUST ALSO ORDER O-RING)SENSOR, THROTTLE POSITION (MUST ALSO ORDER O-RING)
-
55413812 O-RING, TPS (USED W/2410342)O-RING, TPS (USED W/2410342)
-
67517384 SCREWSCREW
-
72410720 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
85412632 SEAL, VALVE COVERSEAL, VALVE COVER
-
95432533 COVER, BREATHERCOVER, BREATHER
-
107516607 SCREWSCREW
-
113021671 PLUG, SPARK, CHAMPION RC7YC3PLUG, SPARK, CHAMPION RC7YC3
-
121253564 ADAPTERADAPTER
-
137516734 SCREWSCREW
-
143131515 SCREW, SHOULDERSCREW, SHOULDER
-
151202578 ASM., COVER W/O-RINGASM., COVER W/O-RING
-
163131514 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
177080307 CLAMP, HOSECLAMP, HOSE
-
188450113 HOSEHOSE
-
197052038 VALVE, CHECKVALVE, CHECK
