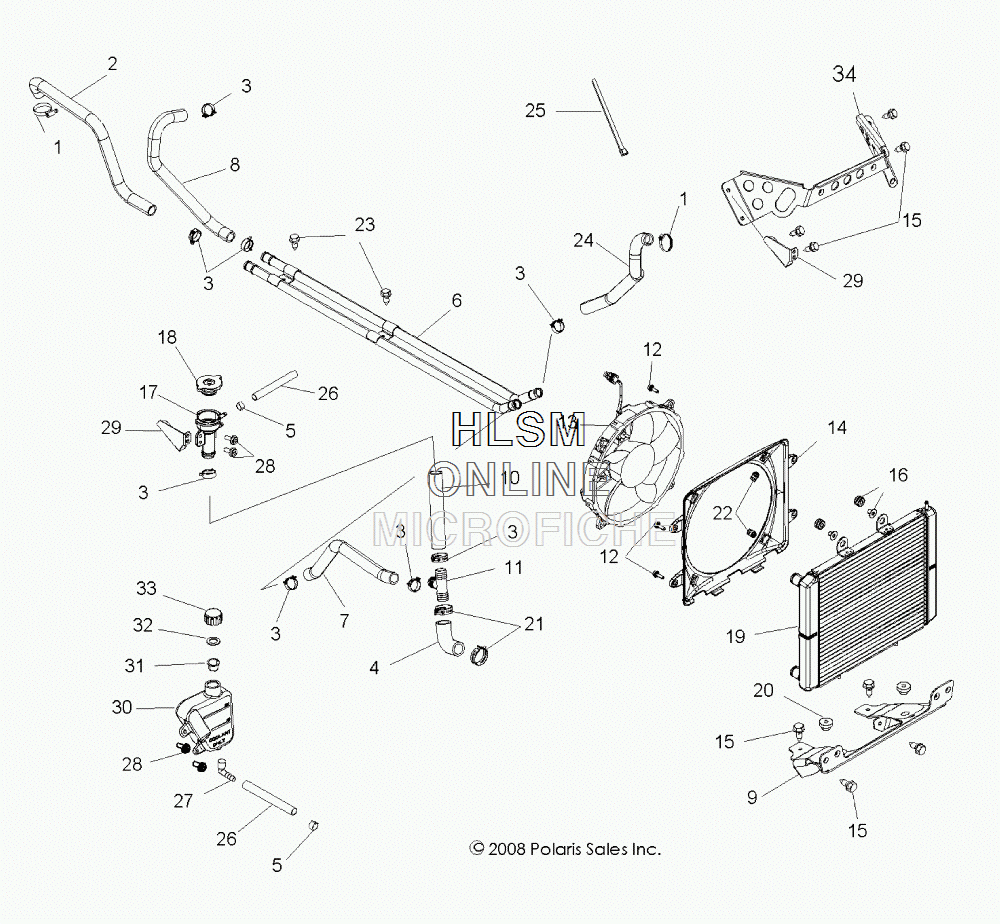

COOLING SYSTEM для Polaris RZR 800 EFI LTD SUNSET RED [R09VH76AZ] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    7081174 CLAMP, HOSE
    CLAMP, HOSE
  • 2
    5413148 HOSE, ENGINE OUTLET, REAR
    HOSE, ENGINE OUTLET, REAR
  • 3
    7080843 CLAMP, SPRINGBAND, BROWN
    CLAMP, SPRINGBAND, BROWN
  • 4
    5410958 HOSE
    HOSE
  • 5
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    1240544 ASM., TUBE, COOLANT
    ASM., TUBE, COOLANT
  • 7
    5413372 HOSE, RADIATOR, LOWER
    HOSE, RADIATOR, LOWER
  • 8
    5413147 HOSE, ENGINE INLET, REAR
    HOSE, ENGINE INLET, REAR
  • 9
    1015842-458 MOUNT, RADIATOR, LOWER, MATTE' BLACK
    MOUNT, RADIATOR, LOWER, MATTE' BLACK
  • 10
    5413371 HOSE, RADIATOR
    HOSE, RADIATOR
  • 11
    7052397 T-CONNECTOR (BUILT 2/01/09 AND BEFORE)
    T-CONNECTOR (BUILT 2/01/09 AND BEFORE)
  • 11
    7052373 T-CONNECTOR (BUILT 2/02/09 AND AFTER)
    T-CONNECTOR (BUILT 2/02/09 AND AFTER)
  • 12
    7547220 SCREW (BUILT 1/19/09 AND BEFORE)
    SCREW (BUILT 1/19/09 AND BEFORE)
  • 12
    7516822 SCREW (BUILT 1/20/09 AND AFTER)
    SCREW (BUILT 1/20/09 AND AFTER)
  • 13
    2410413 ASM., FAN (BUILT 1/01/09 AND BEFORE)
    ASM., FAN (BUILT 1/01/09 AND BEFORE)
  • 13
    2204192 KIT, FAN (BUILT 1/02/09 AND AFTER) (INCL. CIRCUIT BREAKER)
    KIT, FAN (BUILT 1/02/09 AND AFTER) (INCL. CIRCUIT BREAKER)
  • 14
    5434853 SHROUD, FAN (BUILT 1/01/09 AND BEFORE)
    SHROUD, FAN (BUILT 1/01/09 AND BEFORE)
  • 14
    5437845 SHROUD, FAN (BUILT 1/02/09 AND AFTER)
    SHROUD, FAN (BUILT 1/02/09 AND AFTER)
  • 15
    7517386 SCREW
    SCREW
  • 16
    5411975 ASM., GROMMET AND INSERT
    ASM., GROMMET AND INSERT
  • 17
    5435196 FILLER, REMOTE
    FILLER, REMOTE
  • 18
    1240044 CAP, PRESSURE
    CAP, PRESSURE
  • 19
    1240319 ASM., RADIATOR, CORE (BUILT 1/01/09 AND BEFORE)
    ASM., RADIATOR, CORE (BUILT 1/01/09 AND BEFORE)
  • 19
    1240444 ASM., RADIATOR, CORE (BUILT 1/02/09 AND AFTER)
    ASM., RADIATOR, CORE (BUILT 1/02/09 AND AFTER)
  • 20
    5410584 BUSHING, MOUNT, RADIATOR, LOWER
    BUSHING, MOUNT, RADIATOR, LOWER
  • 21
    7080844 CLAMP, SPRINGBAND, BLACK
    CLAMP, SPRINGBAND, BLACK
  • 22
    7547197 U-CLIP (BUILT 1/01/09 AND BEFORE)
    U-CLIP (BUILT 1/01/09 AND BEFORE)
  • 22
    7547366 U-CLIP (BUILT 1/02/09 AND AFTER)
    U-CLIP (BUILT 1/02/09 AND AFTER)
  • 23
    7515179 SCREW
    SCREW
  • 24
    5413067 HOSE, RADIATOR, UPPER
    HOSE, RADIATOR, UPPER
  • 25
    7080761 CABLE TIE
    CABLE TIE
  • 26
    8450003-1525 LINE, FUEL
    LINE, FUEL
  • 27
    7052065 FITTING, 90 DEGREE
    FITTING, 90 DEGREE
  • 28
    7512084 SCREW
    SCREW
  • 29
    5250993 BRACKET, FILLER NECK (BUILT 2/01/09 AND BEFORE)
    BRACKET, FILLER NECK (BUILT 2/01/09 AND BEFORE)
  • 29
    5253450 BRACKET, FILLER NECK (BUILT 2/02/09 AND AFTER)
    BRACKET, FILLER NECK (BUILT 2/02/09 AND AFTER)
  • 30
    5436936 TANK, SURGE
    TANK, SURGE
  • 31
    5433774 PLUG, CAP
    PLUG, CAP
  • 32
    5810279 GASKET
    GASKET
  • 33
    5430743 CAP, OVERFLOW
    CAP, OVERFLOW
  • 34
    5250497-067 BRACKET, MOUNT, RADIATOR, UPPER, BLACK (BUILT 5/14/09 AND BEFORE)
    BRACKET, MOUNT, RADIATOR, UPPER, BLACK (BUILT 5/14/09 AND BEFORE)
  • 34
    5253686-067 BRACKET, MOUNT, RADIATOR, UPPER, BLACK (BUILT 5/15/09 AND AFTER)
    BRACKET, MOUNT, RADIATOR, UPPER, BLACK (BUILT 5/15/09 AND AFTER)
