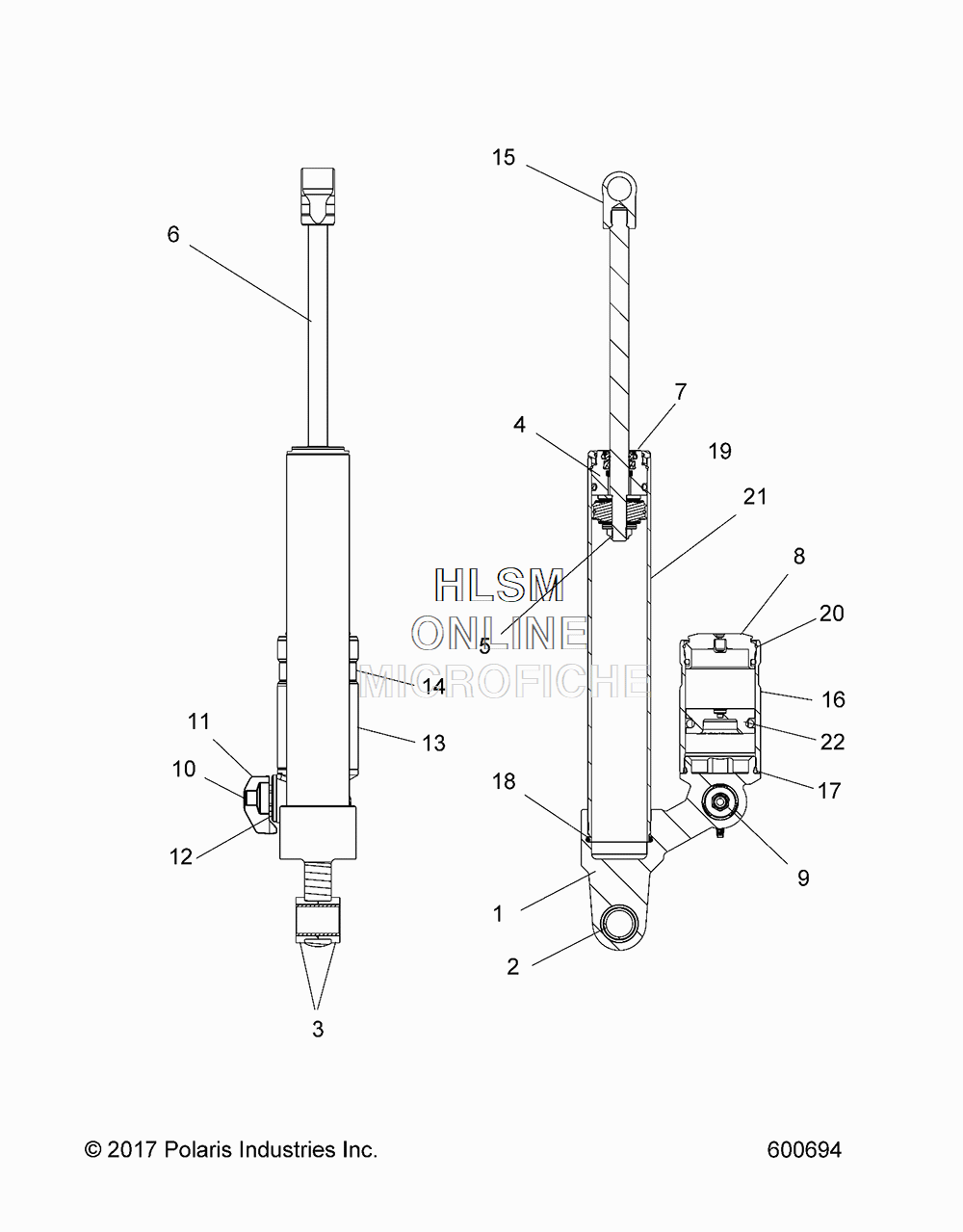

SUSPENSION - REAR SHOCK TRACK для Polaris 800 TITAN XC (S18FJP8) - 2018 года выпуска
-
№АртикулНазвание
-
-7044624 SHOCK-REAR TRACK, FOX (INCL. ALL)SHOCK-REAR TRACK, FOX (INCL. ALL)
-
11501264 BODY CAPBODY CAP
-
21500852 SLEEVESLEEVE
-
31500103 BUSHING-EYELETBUSHING-EYELET
-
41501114 ASM-BEARINGASM-BEARING
-
51500016 NUT-LOCKNUT-LOCK
-
61501265 SHAFTSHAFT
-
71501113 ASM-BEARING CAPASM-BEARING CAP
-
81501027 END CAP-RESERVOIREND CAP-RESERVOIR
-
91501116 ASM-DAMPING ADJUSTERASM-DAMPING ADJUSTER
-
101501011 SCREWSCREW
-
111501108 KNOB-DAMP. ADJUSTERKNOB-DAMP. ADJUSTER
-
121501105 DECAL-BASE VALVEDECAL-BASE VALVE
-
131501104 DECAL-RESERVOIRDECAL-RESERVOIR
-
141501012 DECAL-BAND, PERF. SERIESDECAL-BAND, PERF. SERIES
-
151501207 EYELET, SHAFTEYELET, SHAFT
-
161501109 RESERVOIRRESERVOIR
-
171500623 O-RING-132O-RING-132
-
181500108 O-RING-129O-RING-129
-
191501015 WIRE RETAINING RINGWIRE RETAINING RING
-
201500097 WIRE RETAINING RINGWIRE RETAINING RING
-
211501266 BODYBODY
-
221501267 ASM-FLOATING PISTONASM-FLOATING PISTON
