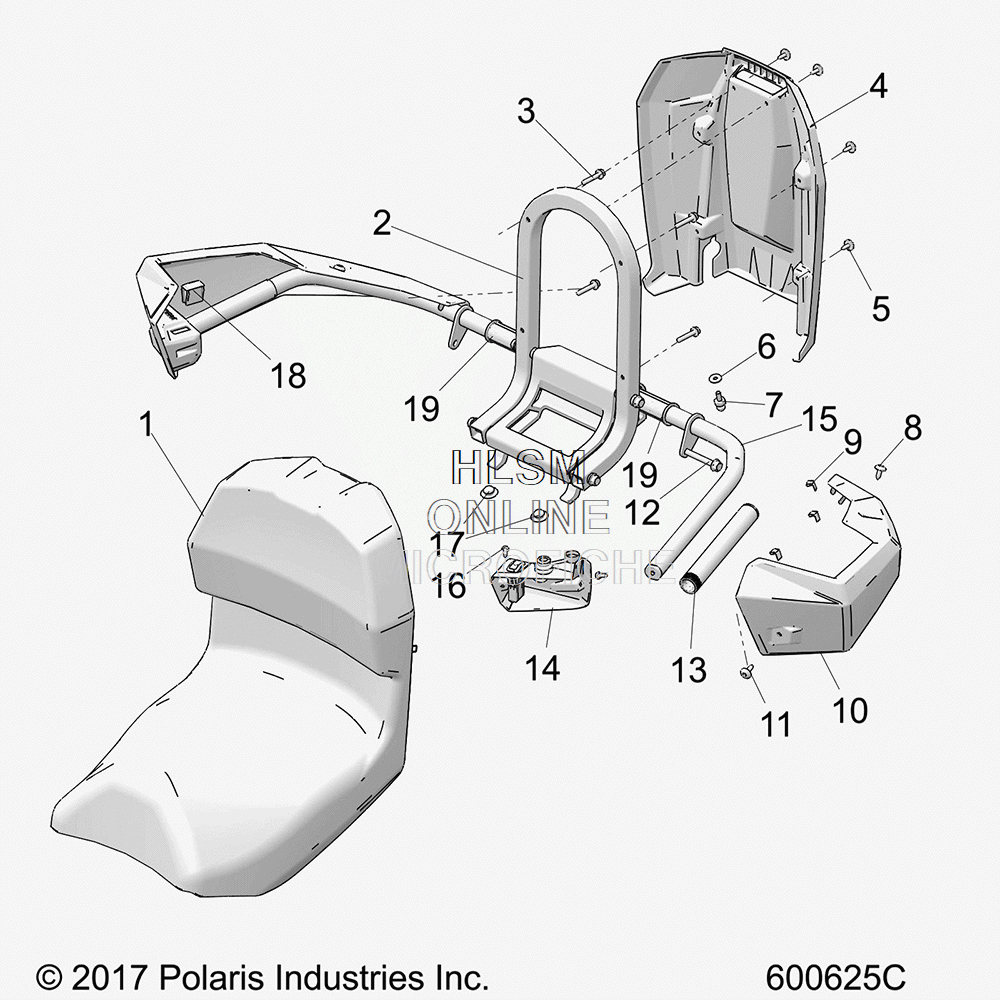

SEAT ASSY. - PASS. для Polaris 800 TITAN ADVENTURE (S18FJE8) - 2018 года выпуска
-
№АртикулНазвание
-
12687576 ASM-COVER PASS CUT AND SEWASM-COVER PASS CUT AND SEW
-
12687574 ASM-PASSENGER SEAT BLACKASM-PASSENGER SEAT BLACK
-
21022967 ASM-PASS SEAT FRAMEASM-PASS SEAT FRAME
-
37518612 SCR-HXFL-M6X1.0X35 8.8 ZODSCR-HXFL-M6X1.0X35 8.8 ZOD
-
42637033 ASM-COVER-BACKREST W/DECALASM-COVER-BACKREST W/DECAL
-
57519113 SCR-TXTH-M5X0.8X15 T40 ZPBSCR-TXTH-M5X0.8X15 T40 ZPB
-
67552901 WASHER-5/16 SPRING LK-MED-YWASHER-5/16 SPRING LK-MED-Y
-
77520865 PLUNGER-LATCH 8MMPLUNGER-LATCH 8MM
-
87518936 SCR-M6X1X16 TR/TX-MSCR-M6X1X16 TR/TX-M
-
97670040 CLIP-U TYPECLIP-U TYPE
-
105454303 HANDGAURD-PASS LEFT HANDHANDGAURD-PASS LEFT HAND
-
105454304 HANDGAURD-PASS RIGHT HANDHANDGAURD-PASS RIGHT HAND
-
117519112 SCR-TXTH-M6X1.0X20 T40 ZPBSCR-TXTH-M6X1.0X20 T40 ZPB
-
127519298 SCR-HXFL-M8X1.25X60 8.8 ZODSCR-HXFL-M8X1.25X60 8.8 ZOD
-
135414695-070 GRIP-HANDLEBAR, 1 IN, LONG, BLACKGRIP-HANDLEBAR, 1 IN, LONG, BLACK
-
145454305 SWITCH-BOX LEFT HANDSWITCH-BOX LEFT HAND
-
145453406 SWITCH-BOX RIGHT HANDSWITCH-BOX RIGHT HAND
-
151023550-458 HAND HOLD RIGHT HAND MATTE BLACKHAND HOLD RIGHT HAND MATTE BLACK
-
151023549-458 HAND HOLD-LEFT HAND MATTE BLACKHAND HOLD-LEFT HAND MATTE BLACK
-
167518238 SCR-10X5/8-HI/LO, PN-T25, TRX-MSCR-10X5/8-HI/LO, PN-T25, TRX-M
-
175413441 GROMMET-SEAT BASEGROMMET-SEAT BASE
-
184011402 PLUG-SWITCH, K1PLUG-SWITCH, K1
-
195453667 BUSHING-GRABHANDLE, 1 INBUSHING-GRABHANDLE, 1 IN
