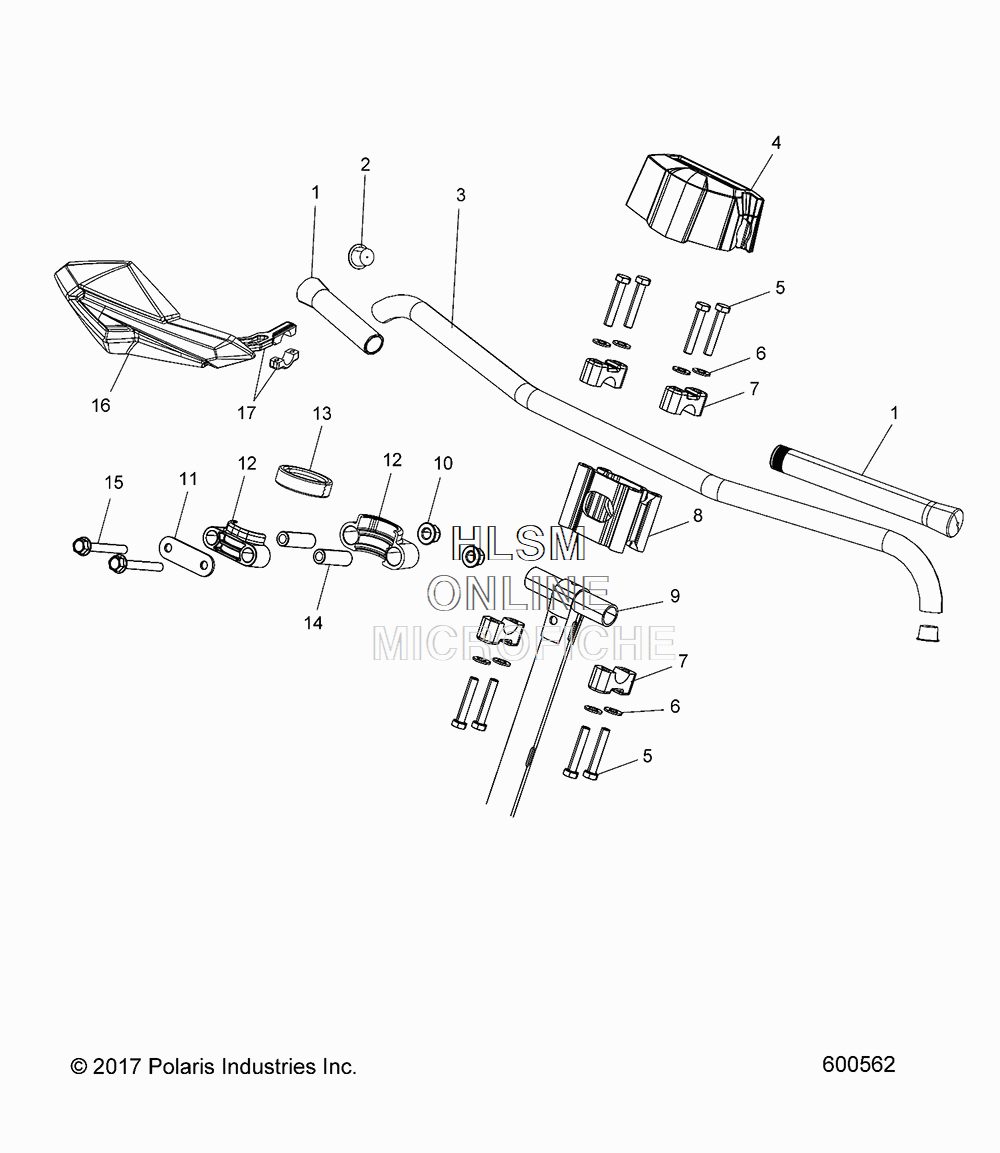

STEERING - UPPER W/ HANDLEBAR ASSEMBLY для Polaris 800 SWITCHBACK XCR INTL (S18DDL8PEM) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5452065-070 GRIP, HANDLEBAR, BLACK (INCL. 1) (RIGHT HAND)
    GRIP, HANDLEBAR, BLACK (INCL. 1) (RIGHT HAND)
  • 1
    5453508-070 GRIP, HANDLEBAR, LONG, BLACK (INCL. 1) (LEFT HAND)
    GRIP, HANDLEBAR, LONG, BLACK (INCL. 1) (LEFT HAND)
  • 2
    5431096 CAP PLUG
    CAP PLUG
  • 3
    5247074-067 HANDLEBAR, W/HOOKS, BLACK
    HANDLEBAR, W/HOOKS, BLACK
  • 4
    5438523 COVER, HANDLEBAR
    COVER, HANDLEBAR
  • 5
    7519097 SCREW
    SCREW
  • 6
    7556524 WASHER, FLAT
    WASHER, FLAT
  • 7
    5631311 CLAMP, HANDLEBAR RETAINER
    CLAMP, HANDLEBAR RETAINER
  • 8
    5137356 BLOCK, HANDLEBAR RISER, 89MM
    BLOCK, HANDLEBAR RISER, 89MM
  • 9
    1824343-329 POST, STEERING, BLACK
    POST, STEERING, BLACK
  • 10
    7547332 NUT
    NUT
  • 11
    5258308 STRAP, STEERING
    STRAP, STEERING
  • 12
    5450881 BUSHING, STEERING POST
    BUSHING, STEERING POST
  • 13
    5414938 SEAL, STEERING BUSHING
    SEAL, STEERING BUSHING
  • 14
    5139006 SPACER, BUSHING, LONG
    SPACER, BUSHING, LONG
  • 15
    7519971 SCREW
    SCREW
  • 16
    2879192 KIT, HANDGUARD, SNO, BLACK (SNOW CHECK)
    KIT, HANDGUARD, SNO, BLACK (SNOW CHECK)
  • 17
    2880939 KIT, HANDGUARD MOUNTS (INCL. MOUNTING HARDWARE)
    KIT, HANDGUARD MOUNTS (INCL. MOUNTING HARDWARE)
