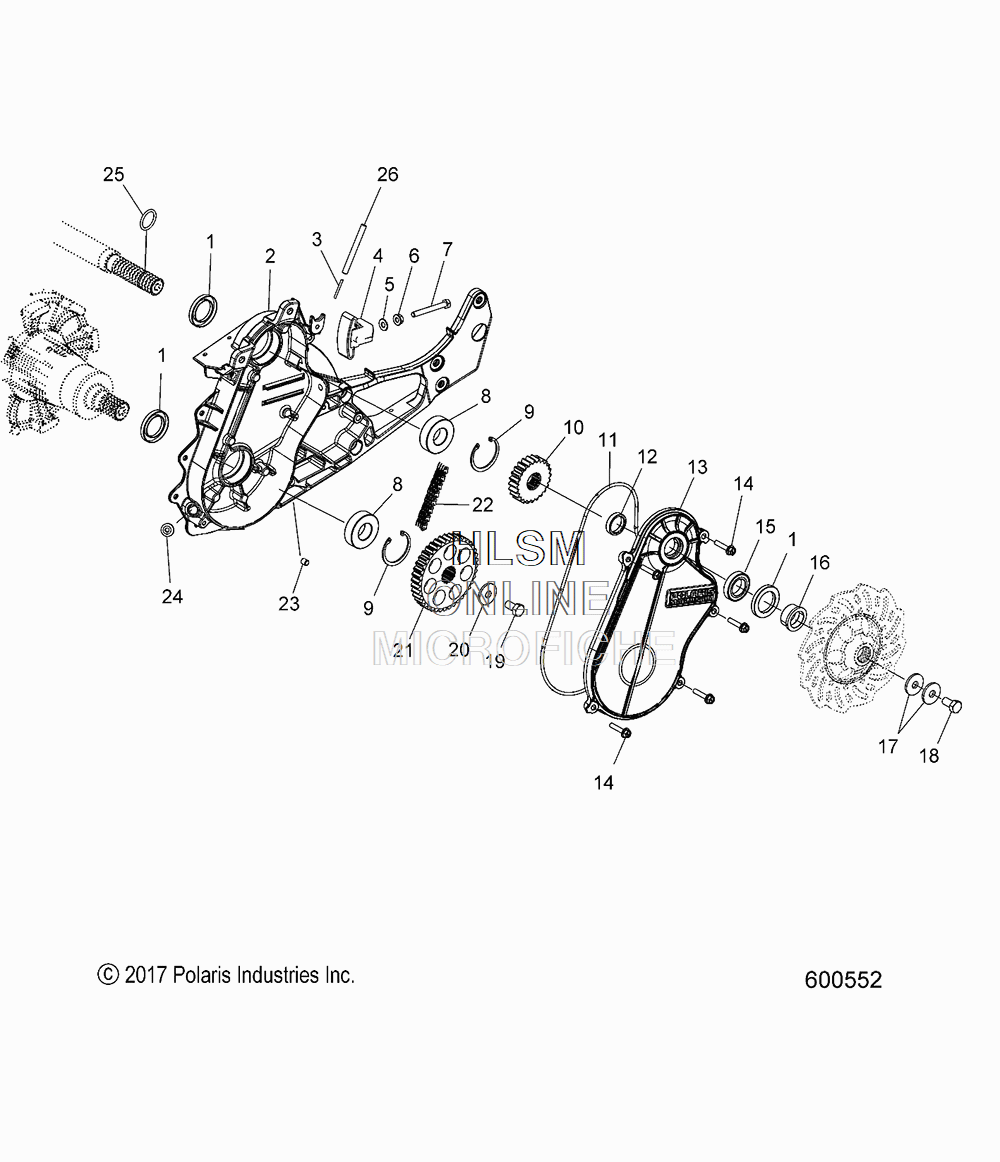

CHAINCASE ASSEMBLY для Polaris 800 SWITCHBACK PRO-S (S18DDH8PS) - 2018 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
21333119 ASM., CHAINCASE, INTERMD (INCL. 1,3,8,9,23)ASM., CHAINCASE, INTERMD (INCL. 1,3,8,9,23)
-
35334764 TUBE, VENTTUBE, VENT
-
41332427 ASM., TIGHTENER, CHAINASM., TIGHTENER, CHAIN
-
57556340 WASHER, THREAD SEALWASHER, THREAD SEAL
-
67547017 NUT, HEXNUT, HEX
-
77519938 SCREWSCREW
-
83514309 BEARING, BALLBEARING, BALL
-
97718406 RING, RETAININGRING, RETAINING
-
103221099 SPROCKET, 23T, 3/4W (STOCK AND SC RIPSAW II TRACK)SPROCKET, 23T, 3/4W (STOCK AND SC RIPSAW II TRACK)
-
103221098 SPROCKET, 22T, 3/4W (SC COBRA TRACK)SPROCKET, 22T, 3/4W (SC COBRA TRACK)
-
115814028 GASKET, CHAINCASE COVERGASKET, CHAINCASE COVER
-
125137587 SLEEVE, CHAINCASESLEEVE, CHAINCASE
-
131333118 ASM., CHAINCASE COVER (INCL. 15,16)ASM., CHAINCASE COVER (INCL. 15,16)
-
147518993 SCREWSCREW
-
153514643 BEARING, BALLBEARING, BALL
-
165140953 SLEEVE, CHAMFERLESSSLEEVE, CHAMFERLESS
-
177556490 WASHER, WAVEWASHER, WAVE
-
187518760 BOLT, W/PATCHBOLT, W/PATCH
-
197519004 SCREWSCREW
-
207556130 WASHER, BELLEWASHER, BELLE
-
213222231 SPROCKET, 37TSPROCKET, 37T
-
223221112 CHAIN, 68P, 3/4WCHAIN, 68P, 3/4W
-
237663007 DOWEL, HOLLOWDOWEL, HOLLOW
-
247052674 PLUG, MAGNETICPLUG, MAGNETIC
-
255413563 O-RING, 20.30MMX2.62MMO-RING, 20.30MMX2.62MM
-
268450061-600 LINE, OIL, 600 CM, SERVICELINE, OIL, 600 CM, SERVICE
