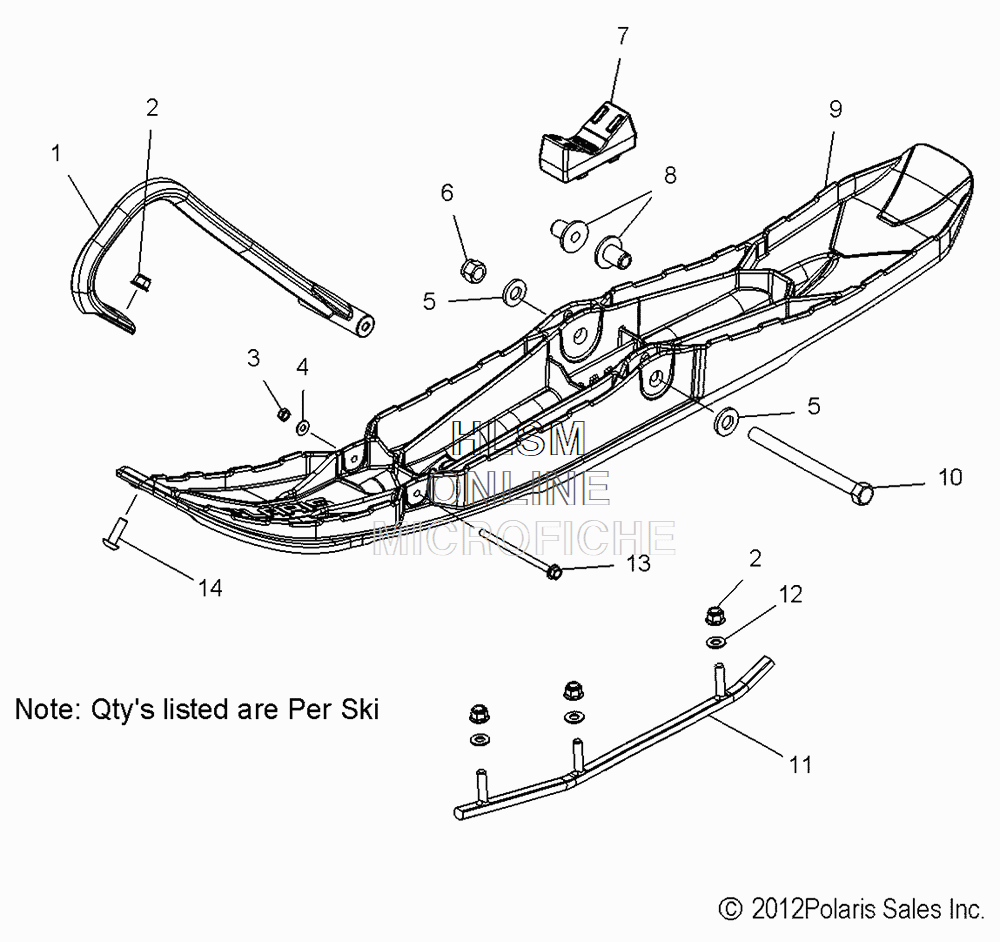

SKI ASSEMBLY для Polaris 800 RUSH PRO-X (S18DCJ8PS) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5435681-070 TOE, PLASTIC SKI, BLACK
    TOE, PLASTIC SKI, BLACK
  • 1
    5435681-133 TOE, PLASTIC SKI, BRIGHT WHITE
    TOE, PLASTIC SKI, BRIGHT WHITE
  • 1
    5435681-647 TOE, PLASTIC SKI, ORANGE BURST
    TOE, PLASTIC SKI, ORANGE BURST
  • 1
    5435681-689 TOE, PLASTIC SKI, VELOCITY BLUE
    TOE, PLASTIC SKI, VELOCITY BLUE
  • 1
    5435681-630 TOE, PLASTIC SKI, LIME SQUEEZE
    TOE, PLASTIC SKI, LIME SQUEEZE
  • 1
    5435681-293 TOE, PLASTIC SKI, INDY RED
    TOE, PLASTIC SKI, INDY RED
  • 2
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 3
    7547650 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 4
    7556737 WASHER, FLAT
    WASHER, FLAT
  • 5
    7556130 WASHER, BELLE
    WASHER, BELLE
  • 6
    7547423 NUT, FLANGE NYLOK
    NUT, FLANGE NYLOK
  • 7
    5414375 STOP, SKI RUBBER
    STOP, SKI RUBBER
  • 8
    5136908 BUSHING, PLASTIC SKI, METRIC
    BUSHING, PLASTIC SKI, METRIC
  • 9
    1823916-070 ASM., SKI, SVC, BLACK
    ASM., SKI, SVC, BLACK
  • 10
    7519098 SCREW
    SCREW
  • 11
    2879025 KIT, SKAG, 8MM X 4IN, 60 DEGREE X 3 STUD (PAIR)
    KIT, SKAG, 8MM X 4IN, 60 DEGREE X 3 STUD (PAIR)
  • 12
    7556524 WASHER
    WASHER
  • 13
    7520233 SCREW
    SCREW
  • 14
    7518906 SCREW
    SCREW
