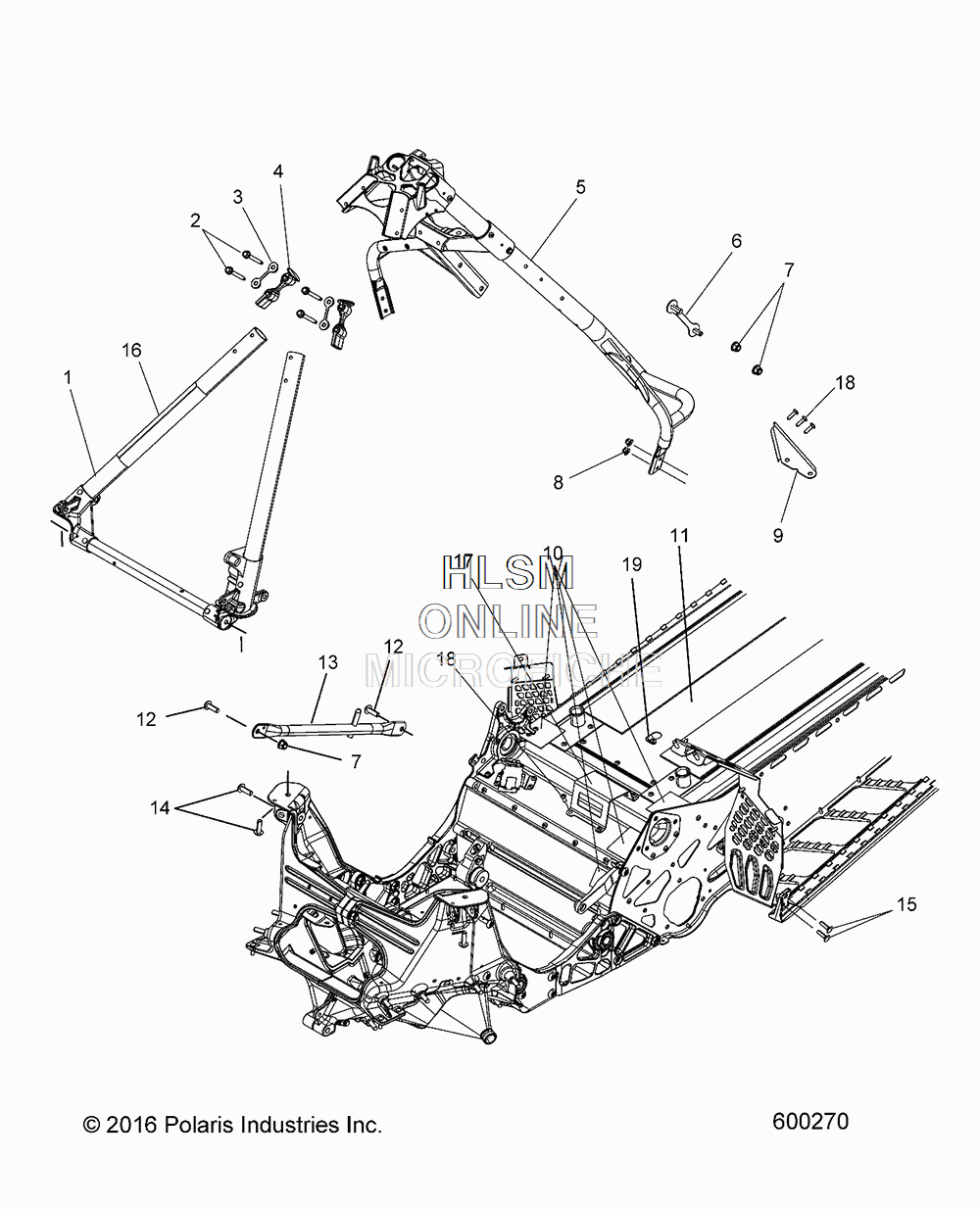

CHASSIS ASSEMBLY W/ OVER STRUCTURE для Polaris 800 AXYS PRO RMK 174 3'' (S18EHM8PSPEB) - 2018 года выпуска
-
№АртикулНазвание
-
11019338 ASM., FRAME, TUBE, FRONT, RMKASM., FRAME, TUBE, FRONT, RMK
-
27519967 SCREWSCREW
-
35633083 SHIM, TUBE, 31.76 DIASHIM, TUBE, 31.76 DIA
-
45632923 SPACER, TUBE CASTSPACER, TUBE CAST
-
51019339 ASM., FRAME, TUBULAR, REAR, RMKASM., FRAME, TUBULAR, REAR, RMK
-
61019337 ASM., STUD PLATE, 91MMASM., STUD PLATE, 91MM
-
77547332 NUTNUT
-
87547453 NUTNUT
-
95262012 BRKT., SUPPORT, TOE STOPBRKT., SUPPORT, TOE STOP
-
105814353 PADPAD
-
111021795-705 ASM., CHASSIS, MTN., 174CC, TITANIUM (INCL. BULKHEAD AND CHAINCASE)ASM., CHASSIS, MTN., 174CC, TITANIUM (INCL. BULKHEAD AND CHAINCASE)
-
111021796-705 ASM., TUNNEL, 174 SVC, TITANIUMASM., TUNNEL, 174 SVC, TITANIUM
-
111021795-293 ASM., CHASSIS, MTN., 174CC, INDY RED (INCL. BULKHEAD AND CHAINCASE)ASM., CHASSIS, MTN., 174CC, INDY RED (INCL. BULKHEAD AND CHAINCASE)
-
111021796-293 ASM., TUNNEL, 174 SVC, INDY REDASM., TUNNEL, 174 SVC, INDY RED
-
111021795-458 ASM., CHASSIS, MTN., 174CC, BLACK (INCL. BULKHEAD AND CHAINCASE)ASM., CHASSIS, MTN., 174CC, BLACK (INCL. BULKHEAD AND CHAINCASE)
-
111021796-458 ASM., TUNNEL, 174 SVC, BLACKASM., TUNNEL, 174 SVC, BLACK
-
111021795-485 ASM., CHASSIS, MTN., 174CC, MIDNIGHT BLUE (INCL. BULKHEAD AND CHAINCASE)ASM., CHASSIS, MTN., 174CC, MIDNIGHT BLUE (INCL. BULKHEAD AND CHAINCASE)
-
111021796-485 ASM., TUNNEL, 174 SVC, MIDNIGHT BLUEASM., TUNNEL, 174 SVC, MIDNIGHT BLUE
-
111021795-647 ASM., CHASSIS, MTN., 174CC, ORANGE BURST (INCL. BULKHEAD AND CHAINCASE)ASM., CHASSIS, MTN., 174CC, ORANGE BURST (INCL. BULKHEAD AND CHAINCASE)
-
111021796-647 ASM., TUNNEL, 174 SVC, ORANGE BURSTASM., TUNNEL, 174 SVC, ORANGE BURST
-
111021795-689 ASM., CHASSIS, MTN., 174CC, VELOCITY BLUE (INCL. BULKHEAD AND CHAINCASE)ASM., CHASSIS, MTN., 174CC, VELOCITY BLUE (INCL. BULKHEAD AND CHAINCASE)
-
111021796-689 ASM., TUNNEL, 174 SVC, VELOCITY BLUEASM., TUNNEL, 174 SVC, VELOCITY BLUE
-
127518906 SCREWSCREW
-
131019861-067 WELD-TUBE BRACE RIGHT HAND BLACKWELD-TUBE BRACE RIGHT HAND BLACK
-
147519070 SCREWSCREW
-
157519338 SCREWSCREW
-
165814124 FOIL-100MM X 200MMFOIL-100MM X 200MM
-
175258618 BRKT., AIR BOX SUPPPORTBRKT., AIR BOX SUPPPORT
-
187661637 RIVETRIVET
