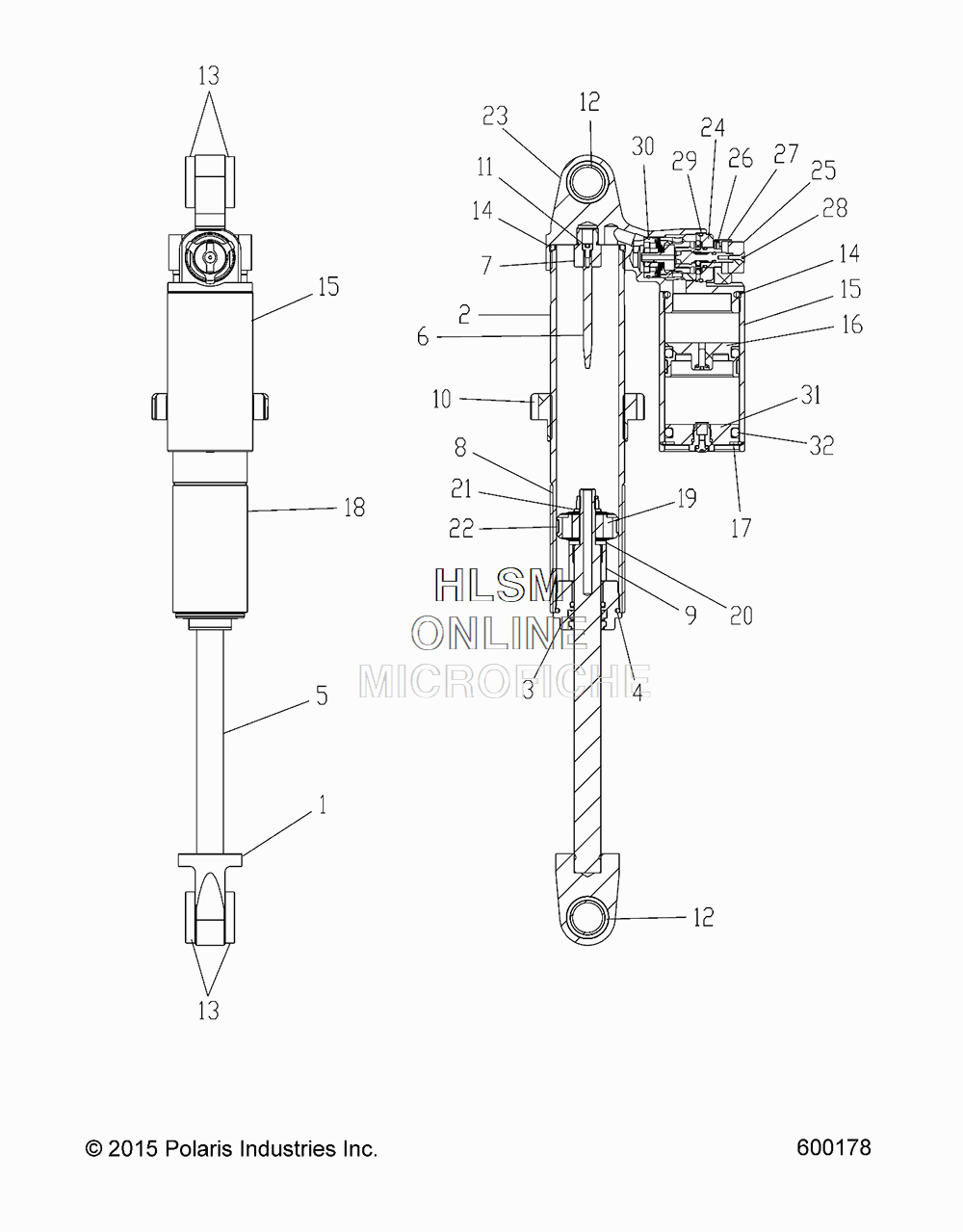

SUSPENSION - REAR SHOCK TRACK- HI LO ADJ. для Polaris 600 SWITCHBACK PRO-S (S18DDH6PS) - 2018 года выпуска`
-
№АртикулНазвание
-
-7044383 SHOCK, RTSHOCK, RT
-
11800471 LOOP, SHAFT, .625THDLOOP, SHAFT, .625THD
-
21800743 BODY, RT, BUTTRESS CLRBODY, RT, BUTTRESS CLR
-
31800414 ASM., SEAL HEADASM., SEAL HEAD
-
41800027 O-RING, BODYO-RING, BODY
-
51800428 SHAFT, NEEDLE, RTSHAFT, NEEDLE, RT
-
61800300 NEEDLE, 2.25NEEDLE, 2.25
-
71800302 BOLT, NEEDLEBOLT, NEEDLE
-
81800031 CRIMP NUT, 3/8 INCRIMP NUT, 3/8 IN
-
91800377 SPACER, SHAFT, .850SPACER, SHAFT, .850
-
101800372 NUT, SPRING LOCKNUT, SPRING LOCK
-
111800074 SCREW-BLEED W/O RINGSCREW-BLEED W/O RING
-
121800405 SLEEVE, 1.15LSLEEVE, 1.15L
-
131800406 BUSHINGBUSHING
-
141800030 O-RING, BODYO-RING, BODY
-
151800523 BODY, RES, 2IN CLEARBODY, RES, 2IN CLEAR
-
161800739 ASM, IFP PISTON, 1.75BLDASM, IFP PISTON, 1.75BLD
-
171800159 RING, SNAPRING, SNAP
-
181800133 SLEEVE, WEARSLEEVE, WEAR
-
191800001 PISTON, CONVEXPISTON, CONVEX
-
201800204 WASHERWASHER
-
211800050 WASHER, 3/8 INWASHER, 3/8 IN
-
221800297 WEAR BANDWEAR BAND
-
231800741 PIGGYBACK, 1 3/4 H/LPIGGYBACK, 1 3/4 H/L
-
241800744 ASM, ADJ. H/L SPEEDASM, ADJ. H/L SPEED
-
251800735 KNOB, LS, DBL GRIP, BLACKKNOB, LS, DBL GRIP, BLACK
-
261800736 SCREW, SET #3-38SCREW, SET #3-38
-
271800737 KNOB, HS, TRI GRIP REDKNOB, HS, TRI GRIP RED
-
281800738 SCREW, 4-40X.375SSSCREW, 4-40X.375SS
-
291800680 O-RING 2.0X24.5MMO-RING 2.0X24.5MM
-
301800679 O-RING 1.5X21.5MMO-RING 1.5X21.5MM
-
311800740 ASM, END CAP 1.750AVASM, END CAP 1.750AV
-
321800184 O-RINGO-RING
-
337044625-458 SPRING, 11.50/130#, MATTE BLACKSPRING, 11.50/130#, MATTE BLACK
-
345137541 RETAINER, THRUST BEARINGRETAINER, THRUST BEARING
-
353514706 BEARING, THRUSTBEARING, THRUST
-
365137540 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
