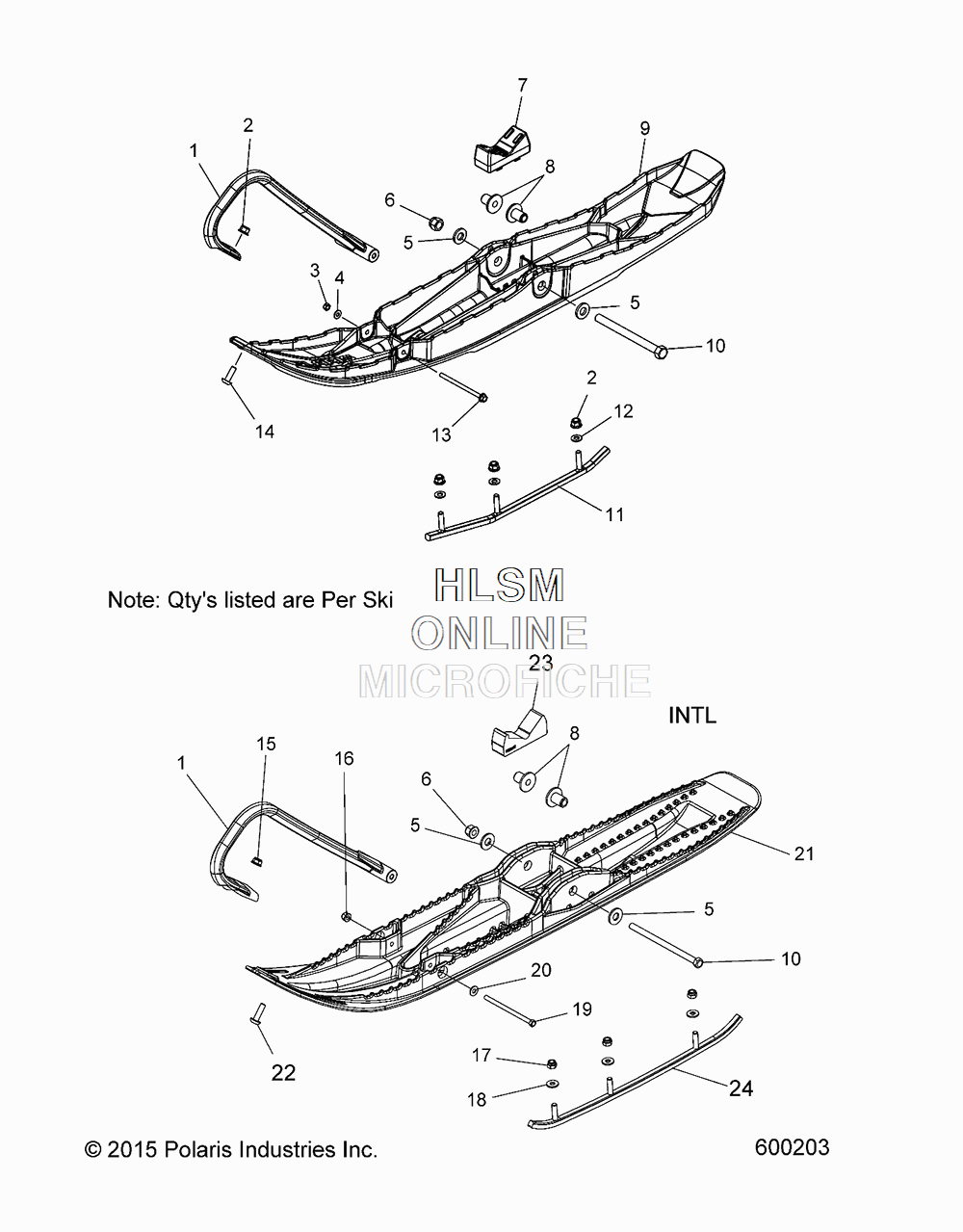

SKI ASSEMBLY для Polaris 600 SWITCHBACK ASSAULT 144 (S18EEC6P) - 2018 года выпуска

№

Артикул

Название
1

5435681-293 TOE, PLASTIC SKI, INDY RED

TOE, PLASTIC SKI, INDY RED
1

5435681-647 TOE, PLASTIC SKI, ORANGE BURST

TOE, PLASTIC SKI, ORANGE BURST
1

5435681-689 TOE, PLASTIC SKI, VELOCITY BLUE

TOE, PLASTIC SKI, VELOCITY BLUE
1

5435681-630 TOE, PLASTIC SKI, LIME SQUEEZE

TOE, PLASTIC SKI, LIME SQUEEZE
1

5435681-133 TOE, PLASTIC SKI, WHITE

TOE, PLASTIC SKI, WHITE
1

5435681-070 TOE, PLASTIC SKI, BLACK

TOE, PLASTIC SKI, BLACK
2

7547332 NUT, FLANGE, NYLOK, M8

NUT, FLANGE, NYLOK, M8
3

7547650 NUT, FLANGE, NYLOK, M6

NUT, FLANGE, NYLOK, M6
4

7556737 WASHER, FLAT

WASHER, FLAT
5

7556130 WASHER, BELLE

WASHER, BELLE
6

7547423 NUT, FLANGE NYLOK, M10

NUT, FLANGE NYLOK, M10
7

5414375 STOP, SKI RUBBER

STOP, SKI RUBBER
8

5136908 BUSHING, PLASTIC SKI

BUSHING, PLASTIC SKI
9

1823916-070 ASM., SKI, SVC, BLACK

ASM., SKI, SVC, BLACK
10

7519098 SCREW, M10

SCREW, M10
11

2879025 KIT, SKAG, 8MM X 4IN, 60 DEGREE X 3 STUD (PAIR)

KIT, SKAG, 8MM X 4IN, 60 DEGREE X 3 STUD (PAIR)
12

7556524 WASHER

WASHER
13

7520233 SCREW, M6

SCREW, M6
14

7518906 SCREW, M8

SCREW, M8
15

7542343 NUT, FLANGED NYLOK, 5/16 (INTL)

NUT, FLANGED NYLOK, 5/16 (INTL)
16

7542153 NUT, NYLOK, FLANGED, 1/4 (INTL)

NUT, NYLOK, FLANGED, 1/4 (INTL)
17

7542324 NUT, NYLOK, 5/16 (INTL)

NUT, NYLOK, 5/16 (INTL)
18

7555843 WASHER (INTL)

WASHER (INTL)
19

7518655 SCREW, 1/4 (INTL)

SCREW, 1/4 (INTL)
20

7558301 WASHER (INTL)

WASHER (INTL)
21

1823660-070 ASM., SKI, WIDE, SVC, BLACK (INTL)

ASM., SKI, WIDE, SVC, BLACK (INTL)
22

7518070 SCREW, 5/16 (INTL)

SCREW, 5/16 (INTL)
23

5415230 STOP, SKI RUBBER, RMK (INTL)

STOP, SKI RUBBER, RMK (INTL)
24

2875723 KIT, SKAG, 3 IN, 60 DEGREE (PAIR) (INTL)

KIT, SKAG, 3 IN, 60 DEGREE (PAIR) (INTL)
