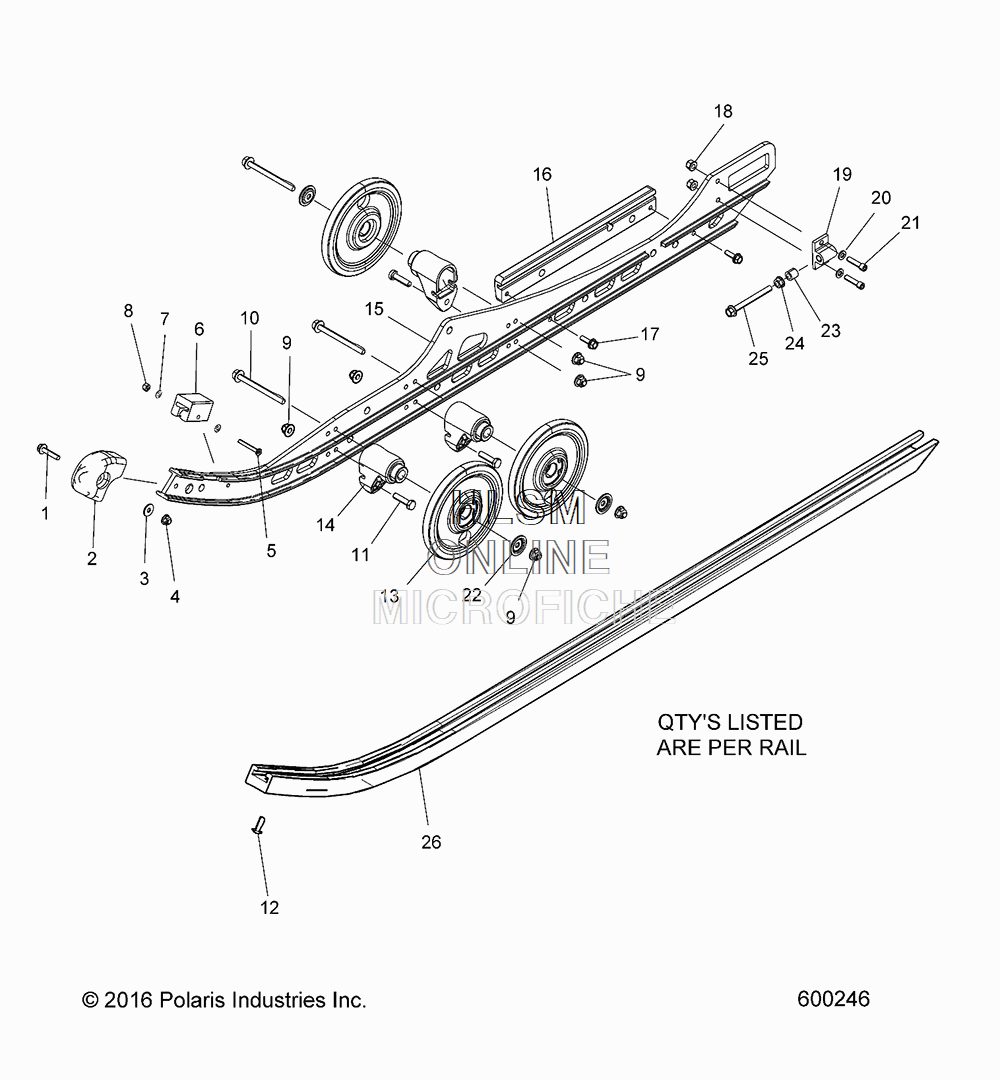

SUSPENSION - RAIL MOUNTING для Polaris 600 RUSH XCR (S18DCL6PSM) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    7518993 SCREW
    SCREW
  • 2
    5438374 CAP, RAIL TIP
    CAP, RAIL TIP
  • 3
    7556064 WASHER, FLAT
    WASHER, FLAT
  • 4
    7547339 NUT, FLANGE LOCK
    NUT, FLANGE LOCK
  • 5
    7510504 SCREW
    SCREW
  • 6
    5521499 BUMPER, JOUNCE, FRONT
    BUMPER, JOUNCE, FRONT
  • 7
    7555783 WASHER
    WASHER
  • 8
    7541925 NUT
    NUT
  • 9
    7547339 NUT, FLANGE NYLOK
    NUT, FLANGE NYLOK
  • 10
    7519908 SCREW
    SCREW
  • 11
    7517510 SCREW
    SCREW
  • 12
    7518976 SCREW
    SCREW
  • 13
    1590457 ASM., WHEEL, PLAIN
    ASM., WHEEL, PLAIN
  • 13
    7710444 RING, RETAINING (1 PER WHEEL)
    RING, RETAINING (1 PER WHEEL)
  • 13
    3514384 BEARING, NEEDLE (1 PER WHEEL)
    BEARING, NEEDLE (1 PER WHEEL)
  • 14
    5632808 BLOCK, WHEEL MOUNT
    BLOCK, WHEEL MOUNT
  • 15
    1543711-067 ASM., RAIL, LEFT HAND, BASIC 121, BLACK (INCL. 16-21)
    ASM., RAIL, LEFT HAND, BASIC 121, BLACK (INCL. 16-21)
  • 15
    1543712-067 ASM., RAIL, RIGHT HAND, BASIC 121, BLACK (INCL. 16-21)
    ASM., RAIL, RIGHT HAND, BASIC 121, BLACK (INCL. 16-21)
  • 16
    5140489 PLATE-RAIL REINF CC LEFT HAND
    PLATE-RAIL REINF CC LEFT HAND
  • 16
    5140490 PLATE-RAIL REINF CC RIGHT HAND
    PLATE-RAIL REINF CC RIGHT HAND
  • 17
    7516822 SCREW, HXFLG, M6X20
    SCREW, HXFLG, M6X20
  • 18
    7542153 NUT, NYLOC FLG
    NUT, NYLOC FLG
  • 19
    5136570 BLOCK, IDLER BOLT
    BLOCK, IDLER BOLT
  • 20
    7555827 WASHER
    WASHER
  • 21
    7515102 SCREW, SOC CP
    SCREW, SOC CP
  • 22
    7556799 WASHER, OFFSET
    WASHER, OFFSET
  • 23
    5137152 SPACER
    SPACER
  • 24
    7547017 NUT, HEX FLG
    NUT, HEX FLG
  • 25
    7519167 SCREW
    SCREW
  • 26
    5521633-070 SLIDER, SVC, BLACK BASIC
    SLIDER, SVC, BLACK BASIC
