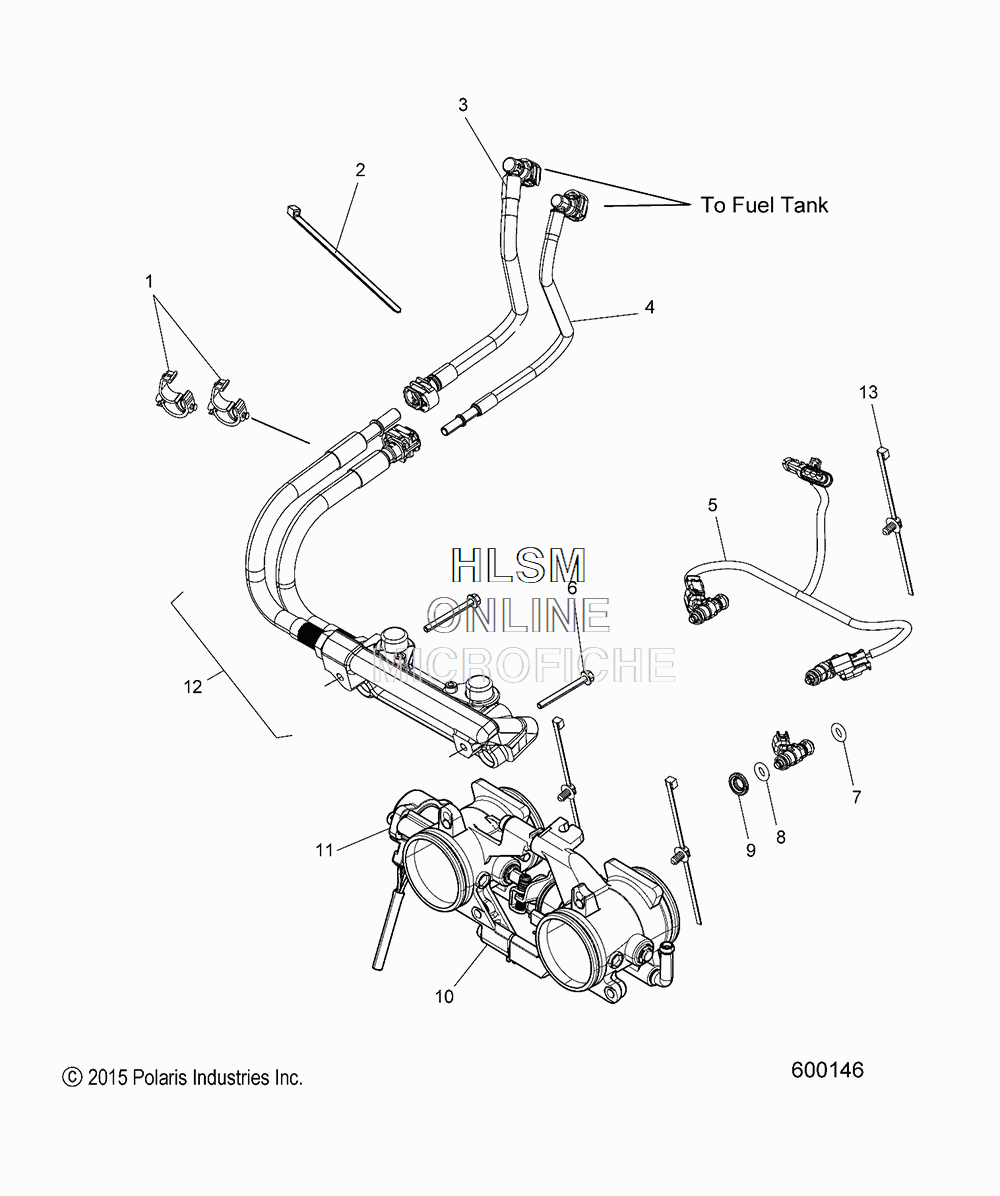

THROTTLE BODY ASSEMBLY W/RAIL AND LINES для Polaris 600 RMK 144 (S18EEG6PSA) - 2018 года выпуска
-
№АртикулНазвание
-
17081871 CLIP, HARNESS, 3-13MM INTERLOCKCLIP, HARNESS, 3-13MM INTERLOCK
-
27080356 CABLE TIECABLE TIE
-
32521345 ASM., FUEL LINE RETURNASM., FUEL LINE RETURN
-
42521344 ASM., FUEL LINE SUPPLYASM., FUEL LINE SUPPLY
-
54014242 HARNESS, INJECTOR WITH LEADHARNESS, INJECTOR WITH LEAD
-
67517985 SCREWSCREW
-
71500198 O-RINGO-RING
-
85412891 O-RINGO-RING
-
95436287 BUSHING, RUBBERBUSHING, RUBBER
-
101204920 ASM., THROTTLE BODY, 46MMASM., THROTTLE BODY, 46MM
-
122521382 ASM., FUEL RAIL, ASASM., FUEL RAIL, AS
-
137081496 CLIP, ROUTINGCLIP, ROUTING
