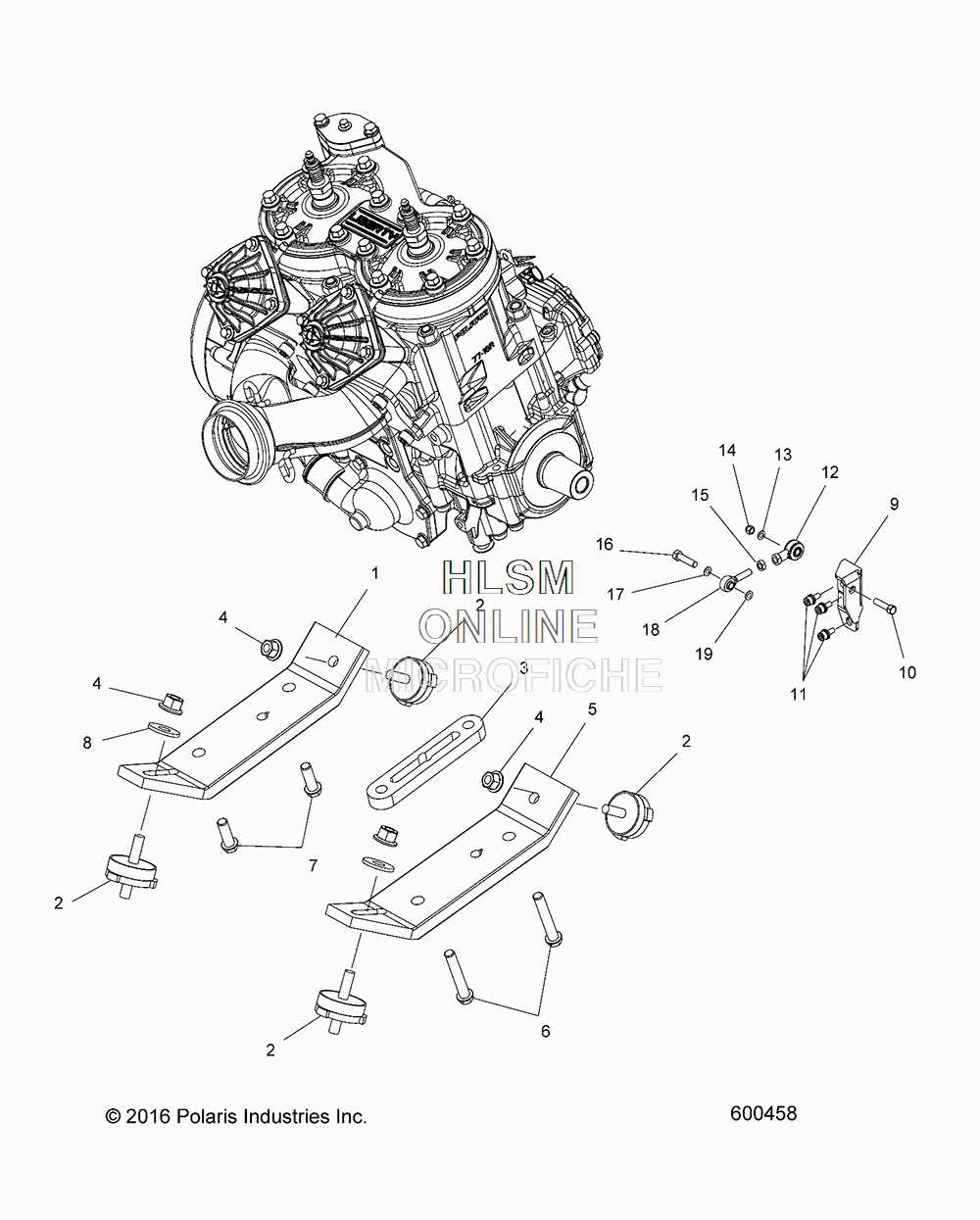

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 600 RACER (S18MBX6JSA) - 2018 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    5136659 STRAP, ENGINE, RIGHT HAND
    STRAP, ENGINE, RIGHT HAND
  • 2
    3023428 ISOLATOR, RUBBER
    ISOLATOR, RUBBER
  • 3
    5136720 SPACER, ENGINE
    SPACER, ENGINE
  • 4
    7547180 NUT, FLANGED
    NUT, FLANGED
  • 5
    5136658 STRAP, ENGINE, LEFT HAND
    STRAP, ENGINE, LEFT HAND
  • 6
    7518531 BOLT
    BOLT
  • 7
    7518644 SCREW
    SCREW
  • 8
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 9
    5260600 BRKT-TORQUE LIMITER
    BRKT-TORQUE LIMITER
  • 10
    7512404 BOLT
    BOLT
  • 11
    7516730 ASM-SCREW AND WASHER
    ASM-SCREW AND WASHER
  • 12
    3021411 LIMITER-TORQUE
    LIMITER-TORQUE
  • 13
    7555823 WASHER
    WASHER
  • 14
    7542439 NUT-NYLOK
    NUT-NYLOK
  • 15
    7542401 NUT-HEX, RIGHT HAND
    NUT-HEX, RIGHT HAND
  • 16
    7515521 SCREW
    SCREW
  • 17
    7552603 WASHER-SPRING-LOCK
    WASHER-SPRING-LOCK
  • 18
    7060002 ROD END-3/8, RIGHT HAND
    ROD END-3/8, RIGHT HAND
  • 19
    7555797 WASHER
    WASHER
