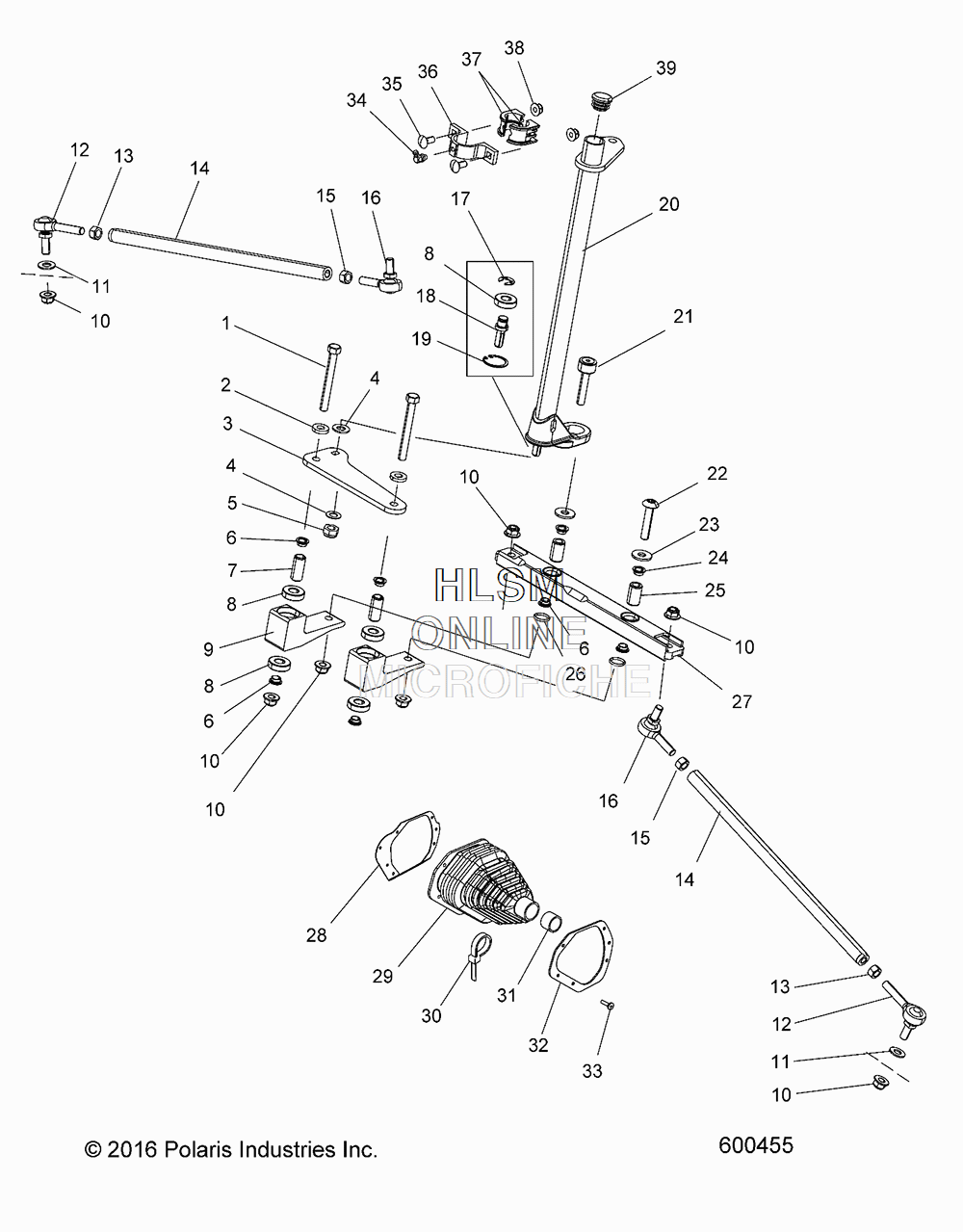

STEERING - LOWER W/TIE RODS для Polaris 600 RACER INTL (S18MBX6JEA) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    7515406 SCREW
    SCREW
  • 2
    7556160 WASHER
    WASHER
  • 3
    5262565 MOUNT-PLATE, PROGRESSIVE ARM
    MOUNT-PLATE, PROGRESSIVE ARM
  • 4
    7556580 WASHER
    WASHER
  • 5
    7547442 NUT
    NUT
  • 6
    5132106 BUSHING, REDUCER
    BUSHING, REDUCER
  • 7
    5136298 SPACER, TUBE
    SPACER, TUBE
  • 8
    3514320 BEARING, BALL
    BEARING, BALL
  • 9
    1823545 ASM., IDLER, STEERING (INCL. 6-8)
    ASM., IDLER, STEERING (INCL. 6-8)
  • 10
    7547263 NUT, FLANGE
    NUT, FLANGE
  • 11
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 12
    7061063 ROD END, LEFT HAND
    ROD END, LEFT HAND
  • 13
    7542424 NUT, LEFT HAND
    NUT, LEFT HAND
  • 14
    5135746 TIE ROD
    TIE ROD
  • 15
    7542401 NUT
    NUT
  • 16
    7061136 ROD END, 75°, RIGHT HAND
    ROD END, 75°, RIGHT HAND
  • 17
    7710901 RING-RETAINING, "E", EXT., .500
    RING-RETAINING, "E", EXT., .500
  • 18
    7519163 STUD-SPACER M10X1.5 8.8 ZOD
    STUD-SPACER M10X1.5 8.8 ZOD
  • 19
    7710642 RING-RET INT 1.125 IN
    RING-RET INT 1.125 IN
  • 20
    1824510-329 STEERING POST-LOWER, RACE (INCL. 8, 17-19)
    STEERING POST-LOWER, RACE (INCL. 8, 17-19)
  • 21
    3514969 CAM-FOLLOWER STEERING
    CAM-FOLLOWER STEERING
  • 22
    7518464 SCREW
    SCREW
  • 23
    7555983 WASHER
    WASHER
  • 25
    5134692 PIVOT, RACK, STEERING
    PIVOT, RACK, STEERING
  • 26
    5411220 O-RING
    O-RING
  • 27
    1824514 ASM., RACK, STEERING (INCL. BUSHINGS)
    ASM., RACK, STEERING (INCL. BUSHINGS)
  • 28
    5249642 COVER, TIE ROD BOOT, RIGHT HAND
    COVER, TIE ROD BOOT, RIGHT HAND
  • 28
    5249641 COVER, TIE ROD BOOT, LEFT HAND
    COVER, TIE ROD BOOT, LEFT HAND
  • 29
    5412745 BOOT, TIE ROD, RIGHT HAND
    BOOT, TIE ROD, RIGHT HAND
  • 29
    5412744 BOOT, TIE ROD, LEFT HAND
    BOOT, TIE ROD, LEFT HAND
  • 30
    7080138 CABLE TIE
    CABLE TIE
  • 31
    5436174 BUSHING, TIE ROD BOOT
    BUSHING, TIE ROD BOOT
  • 32
    5249226 PLATE, TIE ROD BOOT, LEFT HAND
    PLATE, TIE ROD BOOT, LEFT HAND
  • 32
    5249227 PLATE, TIE ROD BOOT, RIGHT HAND
    PLATE, TIE ROD BOOT, RIGHT HAND
  • 33
    7518284 SCREW
    SCREW
  • 34
    7080510 FITTING, ZERK, 90 DEGREE
    FITTING, ZERK, 90 DEGREE
  • 35
    7512377 SCREW, RIGHT HAND CAR
    SCREW, RIGHT HAND CAR
  • 36
    5132967 BRKT-STEERING POST, ALUM
    BRKT-STEERING POST, ALUM
  • 37
    5453688 BUSHING-STEERING POST
    BUSHING-STEERING POST
  • 38
    7542343 NUT-HXFLG NYL
    NUT-HXFLG NYL
  • 39
    5432831 PLUG-END CAP
    PLUG-END CAP
