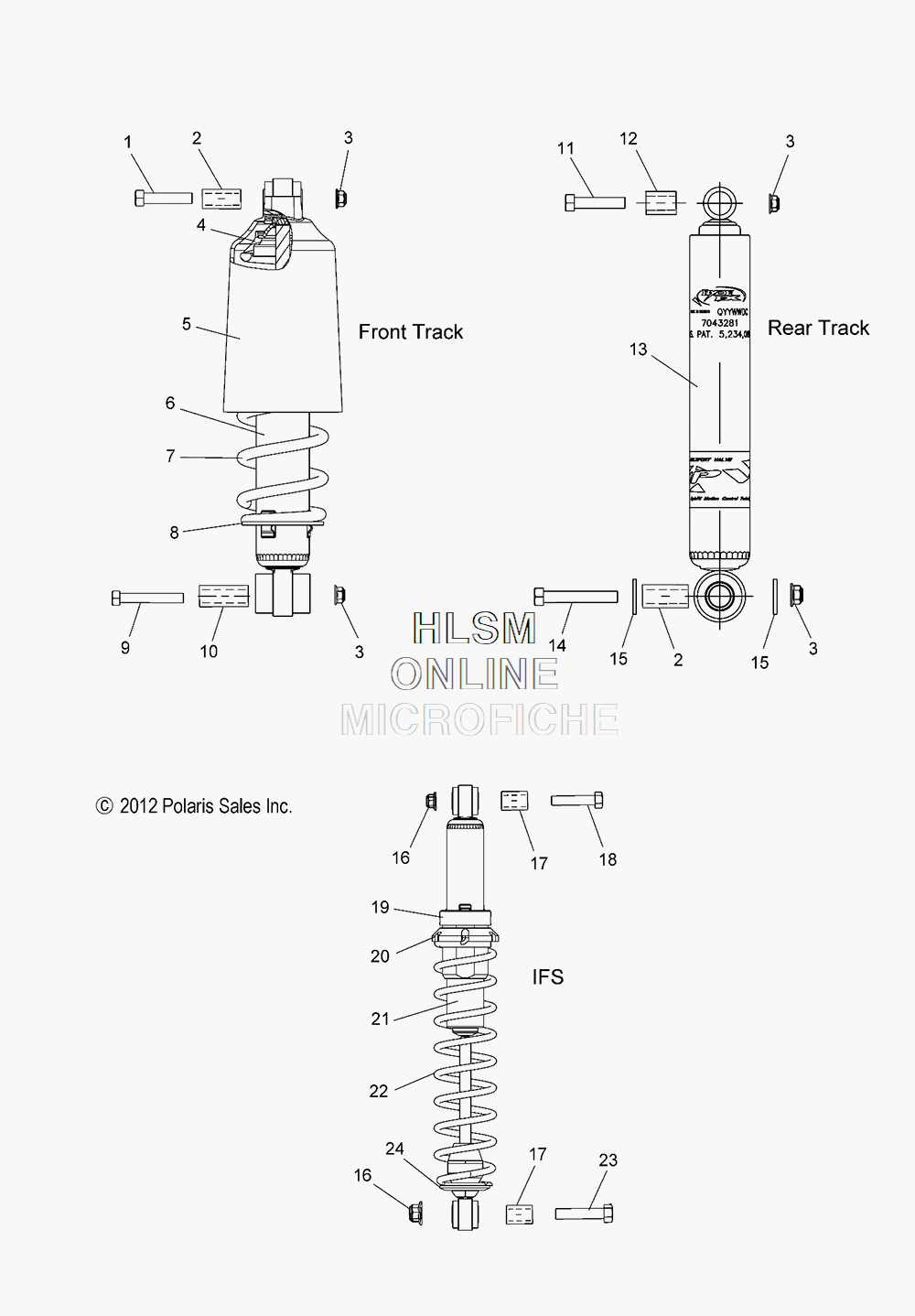

SUSPENSION - IFS SHOCK FT- RT для Polaris 600 INDY (S18CBA6GS) - 2018 года выпуска`
-
№АртикулНазвание
-
17515433 SCREWSCREW
-
25333905 SLEEVESLEEVE
-
37547263 NUTNUT
-
45632166 RETAINER, SPRINGRETAINER, SPRING
-
55437525 SHIELD, SPRINGSHIELD, SPRING
-
67043825 SHOCK, FT, ARVIN MPVSHOCK, FT, ARVIN MPV
-
77043147-067 SPRING, COMP. BLACKSPRING, COMP. BLACK
-
85245067 RETAINER, SPRING, GABRIELRETAINER, SPRING, GABRIEL
-
97515417 SCREWSCREW
-
105333906 SLEEVESLEEVE
-
117512410 BOLTBOLT
-
125010422 BUSHINGBUSHING
-
137043281 SHOCK, RT, ARVIN MPVSHOCK, RT, ARVIN MPV
-
147518263 BOLTBOLT
-
157555795 WASHERWASHER
-
167547423 NUTNUT
-
175137360 BUSHINGBUSHING
-
187518941 SCREWSCREW
-
191500063 RETAINER, SPRING, BODY, THD.RETAINER, SPRING, BODY, THD.
-
205431734 RING, SPRING, PRELOAD ADJ.RING, SPRING, PRELOAD ADJ.
-
217043767 SHOCK, IFS, MPVSHOCK, IFS, MPV
-
227041552-133 SPRING, COMP., IFS, WHT.SPRING, COMP., IFS, WHT.
-
237518971 SCREWSCREW
-
245630580 RETAINER, SPRING, SLOTTED, CASTRETAINER, SPRING, SLOTTED, CAST
