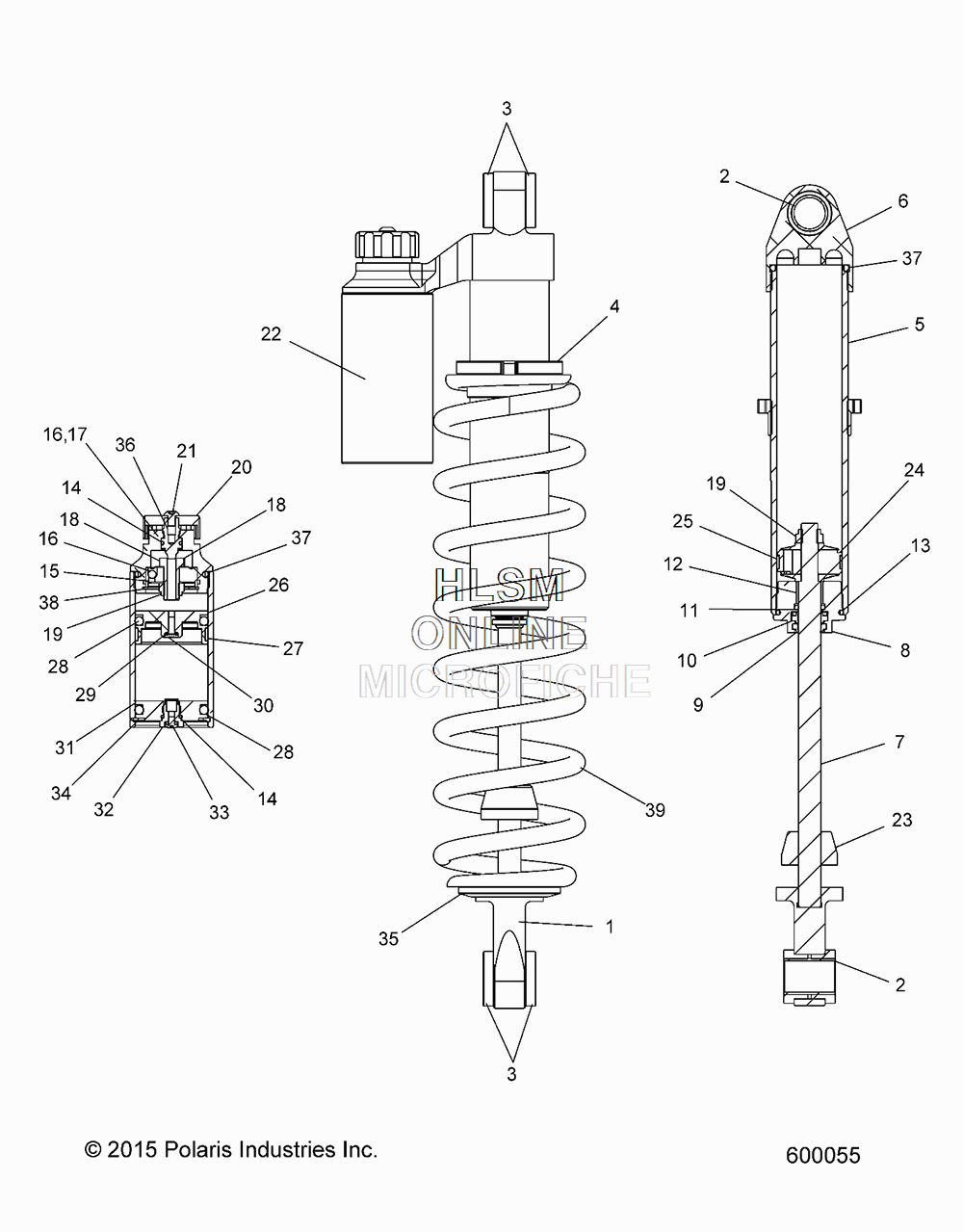

SUSPENSION- SHOCK- REAR TRACK- W/RES. для Polaris 600 AXYS PRO RMK ES 155 INTL (S18EFK6PEB) - 2018 года выпуска
-
№АртикулНазвание
-
-7044301 SHOCK, RTSHOCK, RT
-
11800726 LOOP, SHAFTLOOP, SHAFT
-
21800405 SLEEVESLEEVE
-
31800406 BUSHINGBUSHING
-
41800046 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
51800729 BODY, RT, 7.84 IN BLACKBODY, RT, 7.84 IN BLACK
-
61800413 PIGGYBACK, 90 DEGREEPIGGYBACK, 90 DEGREE
-
71800730 SHAFTSHAFT
-
81800403 SEAL HEADSEAL HEAD
-
91800295 SEAL, WIPERSEAL, WIPER
-
101800294 SEAL, U-CUPSEAL, U-CUP
-
111800095 O-RINGO-RING
-
121800292 BUSHING, SHAFTBUSHING, SHAFT
-
131800027 O-RING, BODYO-RING, BODY
-
141800215 O-RING, STUDO-RING, STUD
-
151800353 PISTON, CLICKERPISTON, CLICKER
-
161800127 BALL, D-TENTBALL, D-TENT
-
171800128 SPRING, D-TENTSPRING, D-TENT
-
181800354 BOLT, CLICKERBOLT, CLICKER
-
191800031 NUT, CRIMPNUT, CRIMP
-
201800418 KNOB, CLICKER, BLACKKNOB, CLICKER, BLACK
-
211800357 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
221800419 BODY, RESERVOIRBODY, RESERVOIR
-
231800462 BUMPER, JOUNCEBUMPER, JOUNCE
-
241800001 PISTON, CONVEX, .063 BLEEDPISTON, CONVEX, .063 BLEED
-
251800297 BAND, WEARBAND, WEAR
-
261800355 PISTON, RESERVOIR, 2 INPISTON, RESERVOIR, 2 IN
-
271800185 BAND, PISTONBAND, PISTON
-
281800184 O-RINGO-RING
-
291800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
301800043 SCREW, BLEEDSCREW, BLEED
-
311800420 CAP, END, RESERVOIR, CLEAR, 2 INCAP, END, RESERVOIR, CLEAR, 2 IN
-
321800329 VALVE, NEEDLEVALVE, NEEDLE
-
331800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
341800159 RING, SNAPRING, SNAP
-
351800116 RETAINER, SPRINGRETAINER, SPRING
-
361800352 STUD, CLICKERSTUD, CLICKER
-
371800030 O-RING, BODYO-RING, BODY
-
381800359 RING, SNAP, CLICKERRING, SNAP, CLICKER
-
397043714-458 SPRING, COMPRESSION, 210# BLACKSPRING, COMPRESSION, 210# BLACK
