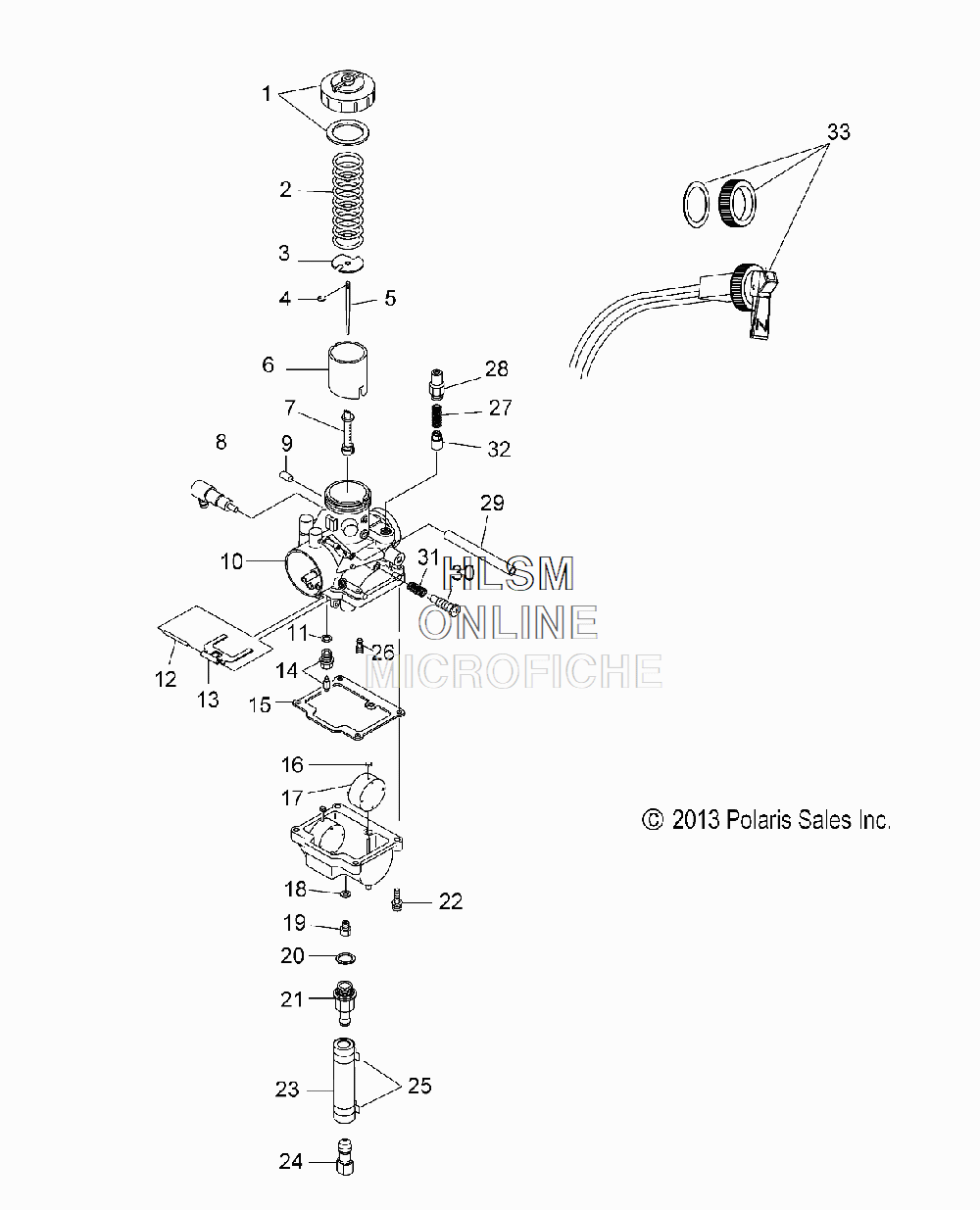

CARBURETOR W/CHOKE для Polaris 550 INDY (S18CBA5BSA) - 2018 года выпуска`
-
№АртикулНазвание
-
13130184 ASSY., TOP, MIXING CHAMBERASSY., TOP, MIXING CHAMBER
-
23130439 SPRING, THROTTLESPRING, THROTTLE
-
33130027 PLATE, THROTTLEPLATE, THROTTLE
-
43130508 E-RINGE-RING
-
53131703 NEEDLE, JET, JB-6BGY48NEEDLE, JET, JB-6BGY48
-
63131763 VALVE, THROTTLE, 3.0VALVE, THROTTLE, 3.0
-
73130964 JET, NEEDLE, Q-O, 480JET, NEEDLE, Q-O, 480
-
83086785 ASSY., VALVE, CHECKASSY., VALVE, CHECK
-
93130479 CAPCAP
-
103131767 ASSY., CARBURETOR (INCL. 1-22,26-32)ASSY., CARBURETOR (INCL. 1-22,26-32)
-
113130017 PACKING, NEEDLE VALVEPACKING, NEEDLE VALVE
-
123130361 PIN, FLOATPIN, FLOAT
-
133130018 ARM, FLOATARM, FLOAT
-
143131146 NEEDLE VALVE, 1.5NEEDLE VALVE, 1.5
-
153130020 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
163130237 CAPCAP
-
173130430 ASSY., FLOATASSY., FLOAT
-
183130014 WASHERWASHER
-
193130428 MAIN JET, #220MAIN JET, #220
-
203130239 O-RINGO-RING
-
213130573 NIPPLENIPPLE
-
223130025 ASSY., SCREW AND WASHERASSY., SCREW AND WASHER
-
235413396 HOSE, WATERTRAPHOSE, WATERTRAP
-
245431893 PLUG, TRAPPLUG, TRAP
-
257080534 CLAMP, HOSECLAMP, HOSE
-
263130068 PILOT JET, #45PILOT JET, #45
-
273131764 SPRING, PLUNGERSPRING, PLUNGER
-
283130199 HOLDER, GUIDEHOLDER, GUIDE
-
293090196 HOSEHOSE
-
303130437 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
313130010 SPRING, THROTTLE ADJUSTERSPRING, THROTTLE ADJUSTER
-
323130328 ASSY., PLUNGERASSY., PLUNGER
-
332200188 KIT, CHOKE CONTROL (INCL. ANCHOR, FLIPPER, PIN)KIT, CHOKE CONTROL (INCL. ANCHOR, FLIPPER, PIN)
-
337081812 CABLE, CHOKECABLE, CHOKE
-
337571610 WASHER, LOCKWASHER, LOCK
-
337080229 NUTNUT
