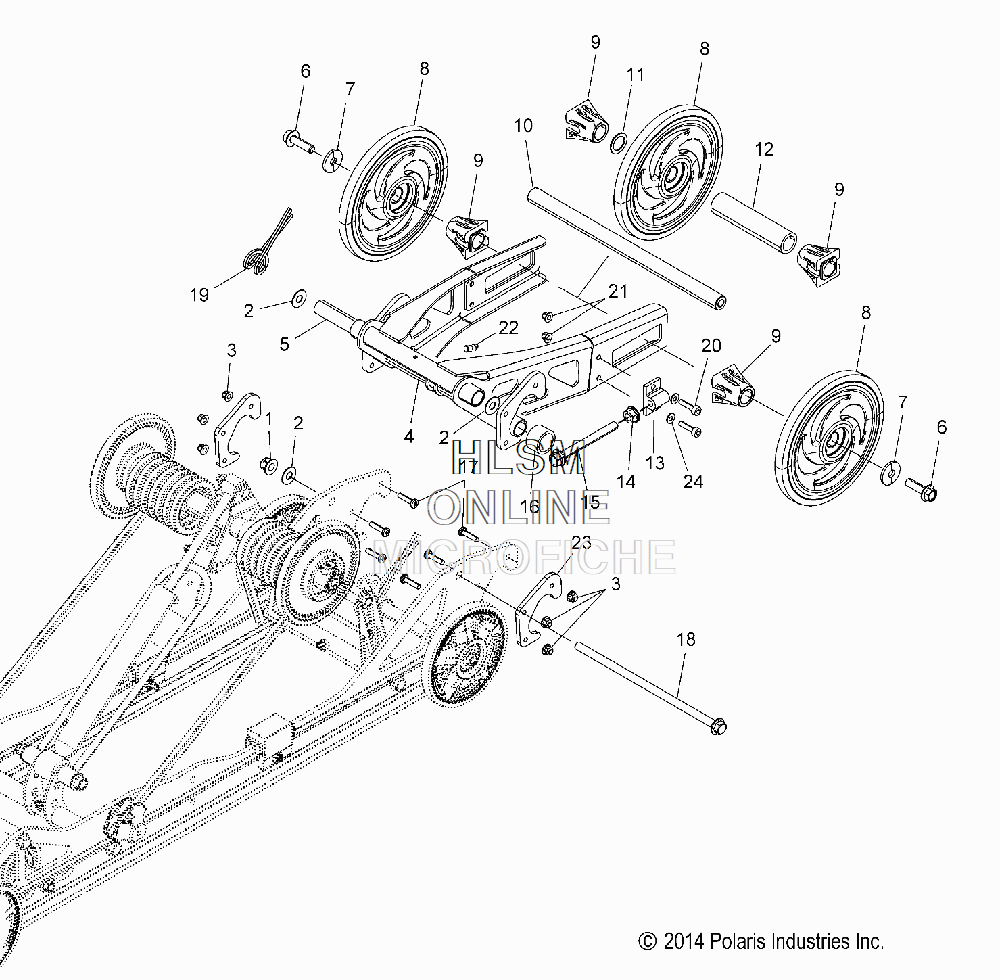

SUSPENSION - REAR ARTICULATING для Polaris 550 INDY ADVENTURE 155 ES (S18CFE5BSL/BEL) - 2018 года выпуска
-
№АртикулНазвание
-
17547333 NUTNUT
-
27556545 WASHERWASHER
-
37547339 NUTNUT
-
41543370 ASSY., FRAME, ARTCLT EXTENSION, SVC (INCL. 13, 16, 20, 21)ASSY., FRAME, ARTCLT EXTENSION, SVC (INCL. 13, 16, 20, 21)
-
55137418 SHAFTSHAFT
-
67518957 SCREWSCREW
-
77556490 WASHER, SPRINGWASHER, SPRING
-
81590388-070 ASSY., WHEEL, BLACKASSY., WHEEL, BLACK
-
87710444 RING, RETAINING (1PER WHEEL)RING, RETAINING (1PER WHEEL)
-
83514384 BEARING (1PER WHEEL)BEARING (1PER WHEEL)
-
95432535 SPACER, IDLERSPACER, IDLER
-
105136745 SHAFT, IDLERSHAFT, IDLER
-
117555918 BUSHINGBUSHING
-
125333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
135136570 BLOCK, IDLER BOLT ADJUST, METRICBLOCK, IDLER BOLT ADJUST, METRIC
-
147547017 NUT, HXFLGNUT, HXFLG
-
157519167 SCREW, HXFLGSCREW, HXFLG
-
165451469 STOP, BUMPER, EXTENSIONSTOP, BUMPER, EXTENSION
-
177519993 SCREW, TXPHSCREW, TXPH
-
187519327 SCREW, HXFLGSCREW, HXFLG
-
197044136-329 SPRING, EXTENSION, TORSION, BLACKSPRING, EXTENSION, TORSION, BLACK
-
207515102 SCREWSCREW
-
217542153 NUT, FLG NYLNUT, FLG NYL
-
227080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
235139219 REINFORCEMENT-RAIL, ART STOPREINFORCEMENT-RAIL, ART STOP
-
247555827 WASHERWASHER
