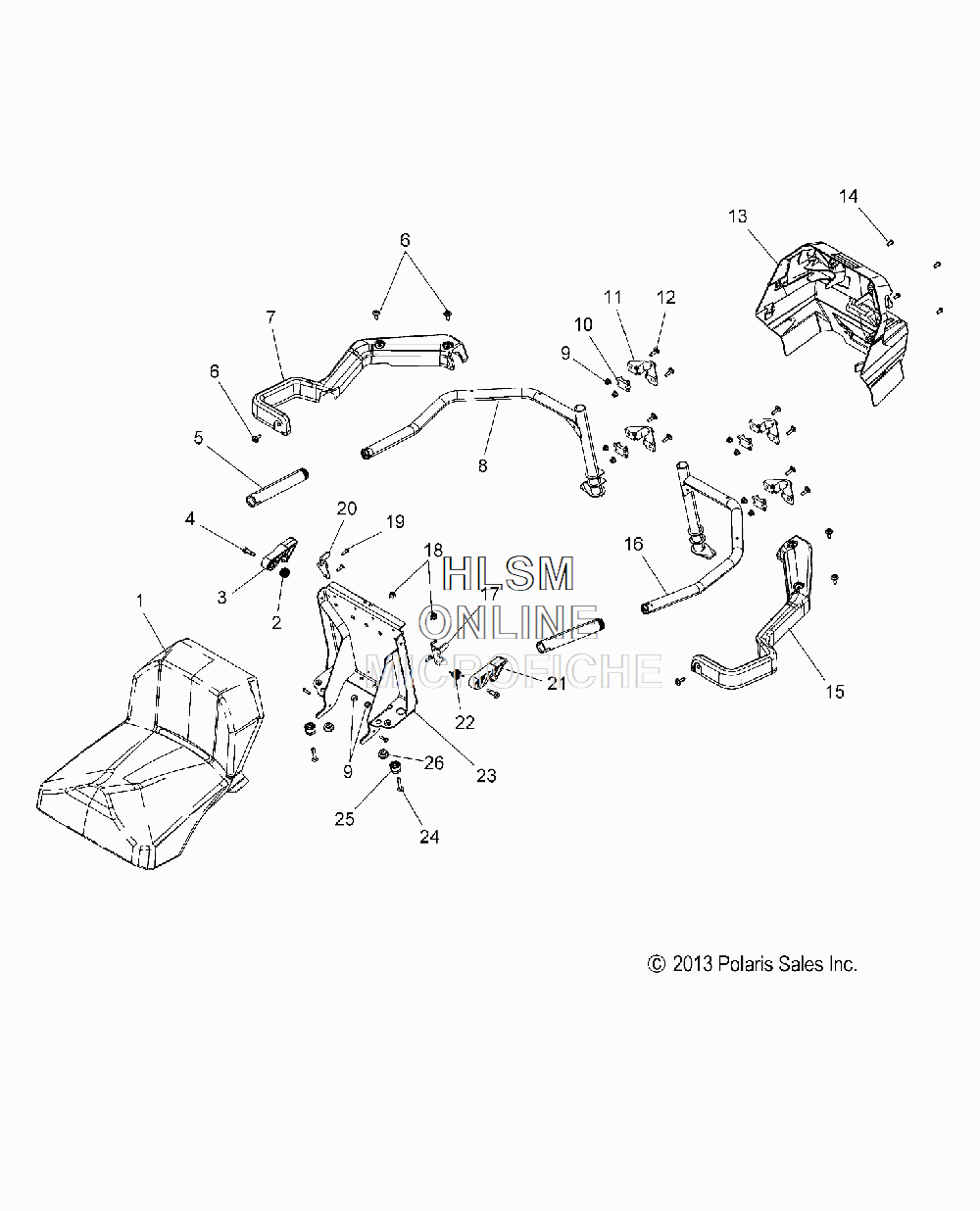

SEAT- PASSENGER W/ ARM REST ASSY. для Polaris 550 INDY ADVENTURE 144 ES (S18CEE5BSL) - 2018 года выпуска
-
№АртикулНазвание
-
12688116 ASM., SEAT, BLK (INTL ONLY)ASM., SEAT, BLK (INTL ONLY)
-
12688117 ASM-COVER, PASS, CUT AND SEW (INTL ONLY)ASM-COVER, PASS, CUT AND SEW (INTL ONLY)
-
12685648 ASM., SEAT, BLK (EXCEPT INTL)ASM., SEAT, BLK (EXCEPT INTL)
-
12685643 COVER, SEAT, PASSENGER (EXCEPT INTL)COVER, SEAT, PASSENGER (EXCEPT INTL)
-
27043990 SPRING, LATCH, RHSPRING, LATCH, RH
-
35452251 LEVER, LATCH, RHLEVER, LATCH, RH
-
47518786 BOLT, SHOULDERBOLT, SHOULDER
-
55414695-070 GRIP, HANDLEBAR, LONG, BLKGRIP, HANDLEBAR, LONG, BLK
-
67519112 SCREWSCREW
-
75450272 COVER, ARM REST, RHCOVER, ARM REST, RH
-
81021449-458 HAND GRIP, LH, MATTE BLKHAND GRIP, LH, MATTE BLK
-
97547339 NUT, NYLOCNUT, NYLOC
-
105450269 INSERT, PIVOT BUSHINGINSERT, PIVOT BUSHING
-
115450268 BUSHING, PIVOT, W/FITTINGBUSHING, PIVOT, W/FITTING
-
127518994 BOLT, CARRIAGEBOLT, CARRIAGE
-
135450273-070 BASE, SEAT, REAR, BLKBASE, SEAT, REAR, BLK
-
147519063 SCREWSCREW
-
155450271 COVER, ARM REST, LHCOVER, ARM REST, LH
-
161021450-458 HAND GRIP, RH, MATTE BLACKHAND GRIP, RH, MATTE BLACK
-
175257238 SUPPORT, TUBE/LATCH, LHSUPPORT, TUBE/LATCH, LH
-
185414655 BUMPER, RUBBERBUMPER, RUBBER
-
197661637 RIVETRIVET
-
205257271 SUPPORT, TUBE/LATCH, RHSUPPORT, TUBE/LATCH, RH
-
215452250 LEVER, LATCH, LHLEVER, LATCH, LH
-
227043989 SPRING, LATCH, LHSPRING, LATCH, LH
-
231020067-458 STRUCTURE, BASE, BLKSTRUCTURE, BASE, BLK
-
247518843 SCREWSCREW
-
255450876 PLUG, RACKPLUG, RACK
-
265412067 BUMPER, RUBBERBUMPER, RUBBER
