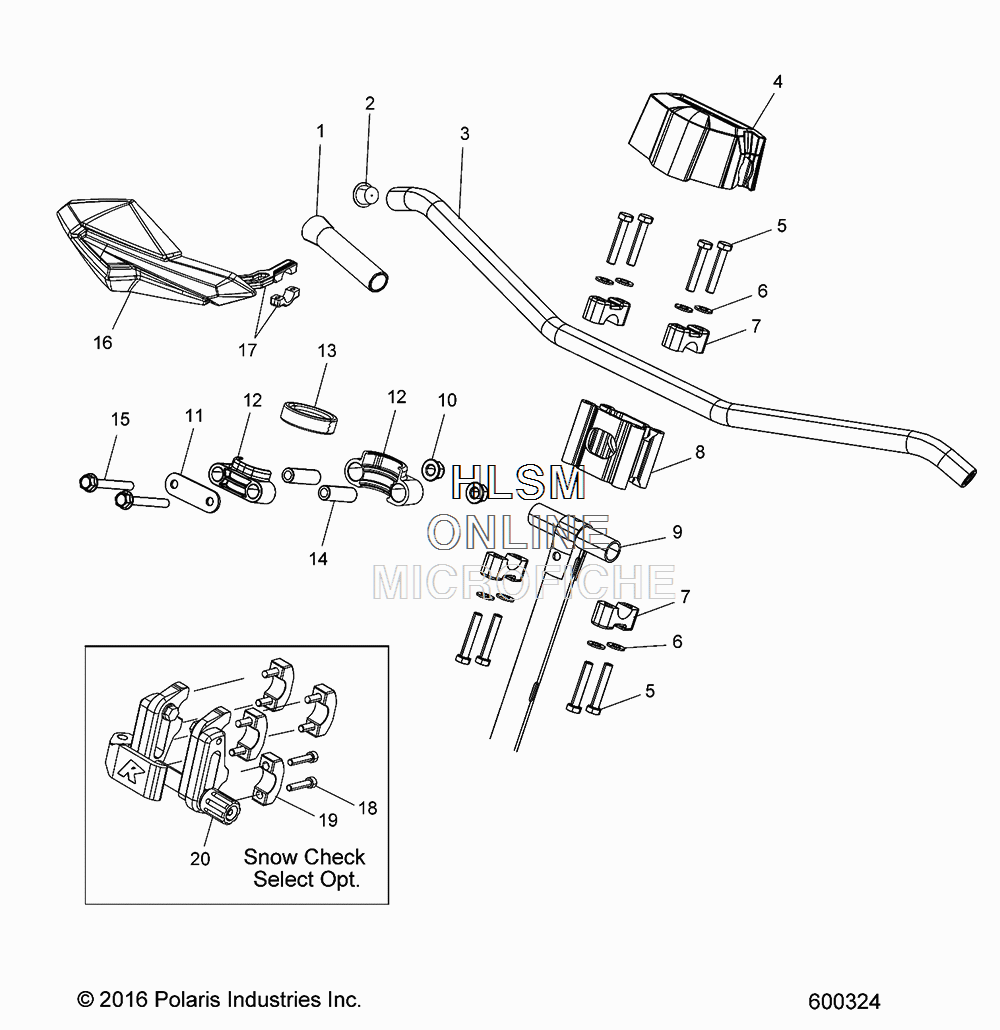

STEERING - UPPER W/ HANDLEBAR ASSEMBLY для Polaris 800 SWITCHBACK PRO-X SNOWCHECK SELECT [S17DDJ8] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5452065-070 GRIP, HANDLEBAR, (BLACK)
    GRIP, HANDLEBAR, (BLACK)
  • 2
    5438035 CAP-PLUG,T-4X (RED)
    CAP-PLUG,T-4X (RED)
  • 3
    5338007 HANDLEBAR, ALUMINUM
    HANDLEBAR, ALUMINUM
  • 4
    2686650 ASM-COVER ROX RISER (NOT SHOWN)
    ASM-COVER ROX RISER (NOT SHOWN)
  • 4
    5438523 COVER, HANDLEBAR
    COVER, HANDLEBAR
  • 5
    7519097 SCREW
    SCREW
  • 6
    7556524 WASHER, FLAT
    WASHER, FLAT
  • 7
    5631311 CLAMP, HANDLEBAR RETAINER
    CLAMP, HANDLEBAR RETAINER
  • 8
    5137356 BLOCK, HANDLEBAR RISER
    BLOCK, HANDLEBAR RISER
  • 9
    1824343-329 POST, STEERING, (BLACK)
    POST, STEERING, (BLACK)
  • 10
    7547332 NUT
    NUT
  • 11
    5258308 STRAP, STEERING
    STRAP, STEERING
  • 12
    5450881 BUSHING, STEERING POST
    BUSHING, STEERING POST
  • 13
    5414938 SEAL, STEERING BUSHING
    SEAL, STEERING BUSHING
  • 14
    5139006 SPACER, BUSHING, LONG
    SPACER, BUSHING, LONG
  • 15
    7519971 SCREW
    SCREW
  • 16
    2879194 KIT-HAND GUARD SNO, (WHITE)
    KIT-HAND GUARD SNO, (WHITE)
  • 16
    2879192 KIT, HANDGUARD, SNO, (BLACK)
    KIT, HANDGUARD, SNO, (BLACK)
  • 17
    2880939 KIT, HANDGUARD MOUNTS
    KIT, HANDGUARD MOUNTS
  • 18
    7518142 SCR-SH-M8X1.25X25 8.8 ZPC NYL
    SCR-SH-M8X1.25X25 8.8 ZPC NYL
  • 19
    5139887 CAP-ROX RISER (S.C. SELECT OPTION)
    CAP-ROX RISER (S.C. SELECT OPTION)
  • 20
    1824445 ASM-ROX RISER (S.C. SELECT OPTION)
    ASM-ROX RISER (S.C. SELECT OPTION)
