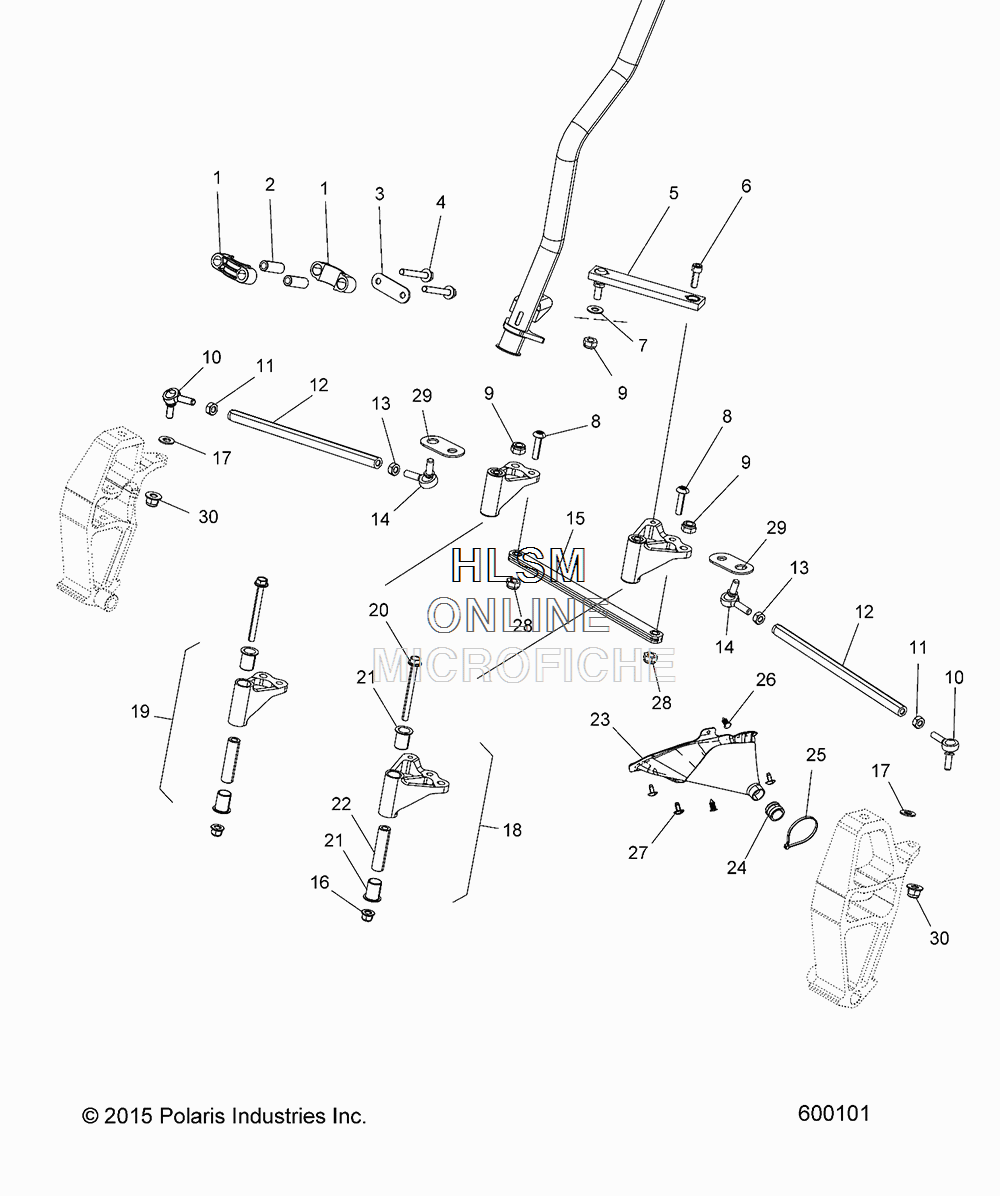

STEERING - LOWER для Polaris 800 SWITCHBACK PRO-S (WHITE LIGHTNING) [S17DDH8PSA] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5450880 BUSHING, STEERING POST LOWER
    BUSHING, STEERING POST LOWER
  • 2
    5137796 SPACER, BUSHING
    SPACER, BUSHING
  • 3
    5258308 STRAP, STEERING
    STRAP, STEERING
  • 4
    7519242 SCREW
    SCREW
  • 5
    7061186 ASM., DRAG LINK FIXED
    ASM., DRAG LINK FIXED
  • 6
    7519010 SCREW
    SCREW
  • 7
    7556153 WASHER
    WASHER
  • 8
    7519238 SCREW
    SCREW
  • 9
    7547442 NUT
    NUT
  • 10
    7061166 ROD END, RIGHT HAND
    ROD END, RIGHT HAND
  • 11
    7547430 NUT
    NUT
  • 12
    5336578 TIE ROD
    TIE ROD
  • 13
    7547431 NUT, LEFT HAND
    NUT, LEFT HAND
  • 14
    7061165 ROD END, LEFT HAND
    ROD END, LEFT HAND
  • 15
    7061190 ASM., RACK, LINK
    ASM., RACK, LINK
  • 16
    7547332 NUT
    NUT
  • 17
    7555806 WASHER
    WASHER
  • 18
    1824418 ASM., PITMAN ARM
    ASM., PITMAN ARM
  • 19
    1824419 ASM., IDLER ARM
    ASM., IDLER ARM
  • 20
    7519972 SCREW
    SCREW
  • 21
    5438460 BUSHING
    BUSHING
  • 22
    5138365 SHAFT, PIVOT, IDLER
    SHAFT, PIVOT, IDLER
  • 23
    2635203 ASM., TIE ROD BOOT, RIGHT HAND (INCL. 24-26)
    ASM., TIE ROD BOOT, RIGHT HAND (INCL. 24-26)
  • 23
    2635202 ASM., TIE ROD BOOT, LEFT HAND (INCL. 24-26)
    ASM., TIE ROD BOOT, LEFT HAND (INCL. 24-26)
  • 24
    5439309 BUSHING, TIE ROD BOOT
    BUSHING, TIE ROD BOOT
  • 25
    7080138 CABLE TIE
    CABLE TIE
  • 26
    7661953 CLIP, X MAS TREE
    CLIP, X MAS TREE
  • 27
    7519092 SCREW
    SCREW
  • 28
    7547405 NUT
    NUT
  • 29
    5261249 STRAP, PITMAN/IDLER
    STRAP, PITMAN/IDLER
  • 30
    7547423 NUT, NYLOC
    NUT, NYLOC
