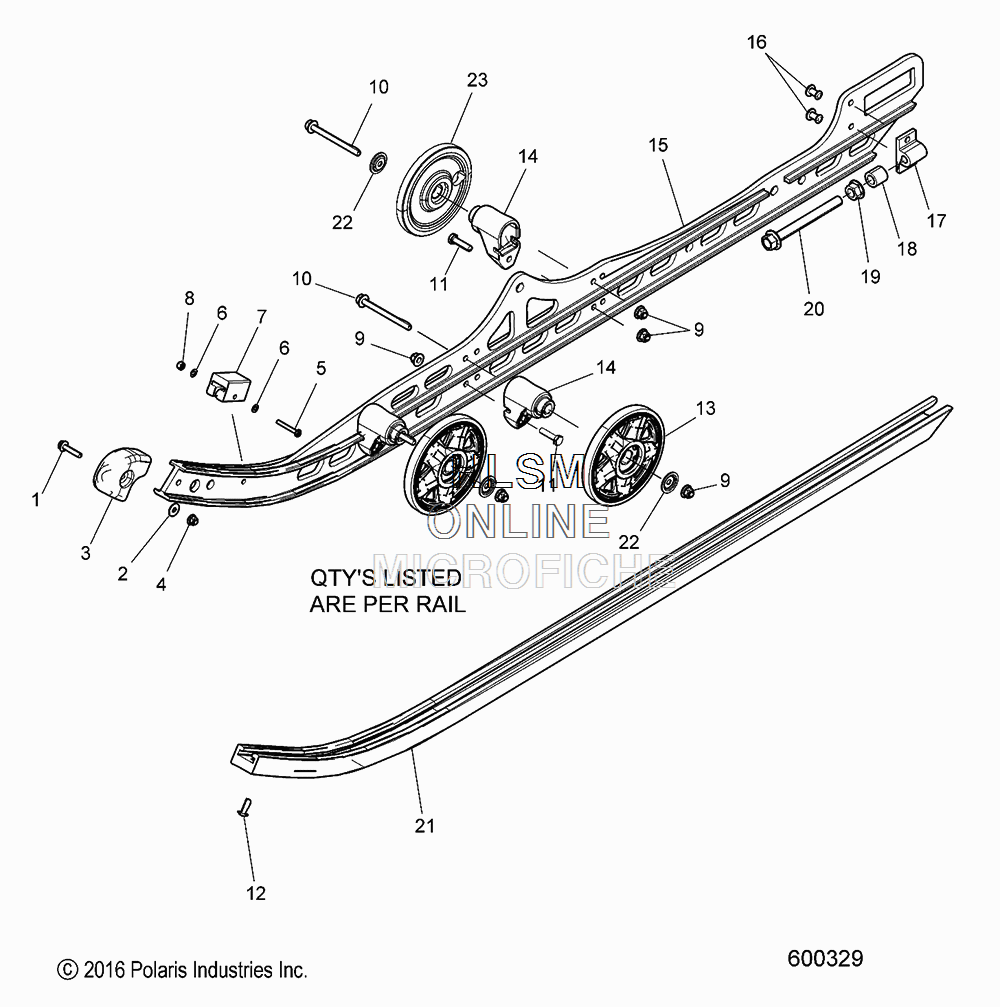

SUSPENSION - RAIL MOUNTING для Polaris 800 RUSH PRO-S ES (INDY RED) [S17DCH8PSL] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    7518993 SCREW
    SCREW
  • 2
    7556064 WASHER, FLAT
    WASHER, FLAT
  • 3
    5438374 CAP, RAIL TIP
    CAP, RAIL TIP
  • 4
    7547339 NUT, FLANGE LOCK
    NUT, FLANGE LOCK
  • 5
    7510504 SCREW
    SCREW
  • 6
    7555783 WASHER
    WASHER
  • 7
    5521499 BUMPER, JOUNCE, FRONT
    BUMPER, JOUNCE, FRONT
  • 8
    7541925 NUT
    NUT
  • 9
    7547339 NUT, FLANGE NYLOK
    NUT, FLANGE NYLOK
  • 10
    7519908 SCREW
    SCREW
  • 11
    7517510 SCREW
    SCREW
  • 12
    7518976 SCREW
    SCREW
  • 13
    3514384 BEARING, NEEDLE
    BEARING, NEEDLE
  • 13
    1590511 ASM., WHEEL
    ASM., WHEEL
  • 13
    7710444 RING, RETAINING
    RING, RETAINING
  • 14
    5632808 BLOCK, WHEEL MOUNT
    BLOCK, WHEEL MOUNT
  • 15
    1543566-689 ASM., RAIL, LEFT HAND, BASIC 120, (VELOCITY BLUE) (SNO CHECK F & O)(INCL. 16,17)
    ASM., RAIL, LEFT HAND, BASIC 120, (VELOCITY BLUE) (SNO CHECK F & O)(INCL. 16,17)
  • 15
    1543567-293 ASM., RAIL, RIGHT HAND, BASIC 120, (RED) (SNO CHECK F & O)(INCL. 16,17)
    ASM., RAIL, RIGHT HAND, BASIC 120, (RED) (SNO CHECK F & O)(INCL. 16,17)
  • 15
    1543566-293 ASM., RAIL, LEFT HAND, BASIC 120, (RED) (SNO CHECK F & O)(INCL. 16,17)
    ASM., RAIL, LEFT HAND, BASIC 120, (RED) (SNO CHECK F & O)(INCL. 16,17)
  • 15
    1543567-309 ASM., RAIL, RIGHT HAND, BASIC 120 (INCL. 16,17)
    ASM., RAIL, RIGHT HAND, BASIC 120 (INCL. 16,17)
  • 15
    1543566-309 ASM., RAIL, LEFT HAND, BASIC 120 (INCL. 16,17)
    ASM., RAIL, LEFT HAND, BASIC 120 (INCL. 16,17)
  • 15
    1543567-689 ASM., RAIL, RIGHT HAND, BASIC 120, (VELOCITY BLUE) (SNO CHECK F & O)(INCL. 16,17)
    ASM., RAIL, RIGHT HAND, BASIC 120, (VELOCITY BLUE) (SNO CHECK F & O)(INCL. 16,17)
  • 15
    1543566-647 ASM., RAIL, LEFT HAND, BASIC 120, (ORANGE BURST) (SNO CHECK F & O)(INCL. 16,17)
    ASM., RAIL, LEFT HAND, BASIC 120, (ORANGE BURST) (SNO CHECK F & O)(INCL. 16,17)
  • 15
    1543567-647 ASM., RAIL, RIGHT HAND, BASIC 120, (ORANGE BURST) (SNO CHECK F & O)(INCL. 16,17)
    ASM., RAIL, RIGHT HAND, BASIC 120, (ORANGE BURST) (SNO CHECK F & O)(INCL. 16,17)
  • 15
    1543566-067 ASM., RAIL, LEFT HAND, BASIC 120, (BLACK) (SNO CHECK F & O)(INCL. 16,17)
    ASM., RAIL, LEFT HAND, BASIC 120, (BLACK) (SNO CHECK F & O)(INCL. 16,17)
  • 15
    1543567-067 ASM., RAIL, RIGHT HAND, BASIC 120, (BLACK) (SNO CHECK F & O)(INCL. 16,17)
    ASM., RAIL, RIGHT HAND, BASIC 120, (BLACK) (SNO CHECK F & O)(INCL. 16,17)
  • 16
    7621501 RIVET
    RIVET
  • 17
    5136570 BLOCK, IDLER BOLT
    BLOCK, IDLER BOLT
  • 18
    5137152 SPACER
    SPACER
  • 19
    7547017 NUT, HEX FLANGED
    NUT, HEX FLANGED
  • 20
    7519167 SCREW
    SCREW
  • 21
    5521633-070 SLIDER, SVC, (BLACK) BASIC
    SLIDER, SVC, (BLACK) BASIC
  • 22
    7556799 WASHER, OFFSET
    WASHER, OFFSET
  • 23
    1590457 ASM., WHEEL, PLAIN
    ASM., WHEEL, PLAIN
  • 23
    3514384 BEARING, NEEDLE
    BEARING, NEEDLE
  • 23
    7710444 RING, RETAINING
    RING, RETAINING
